Next MALVERN - Step 13: Final Adjustments and Wall Mounting

13
14

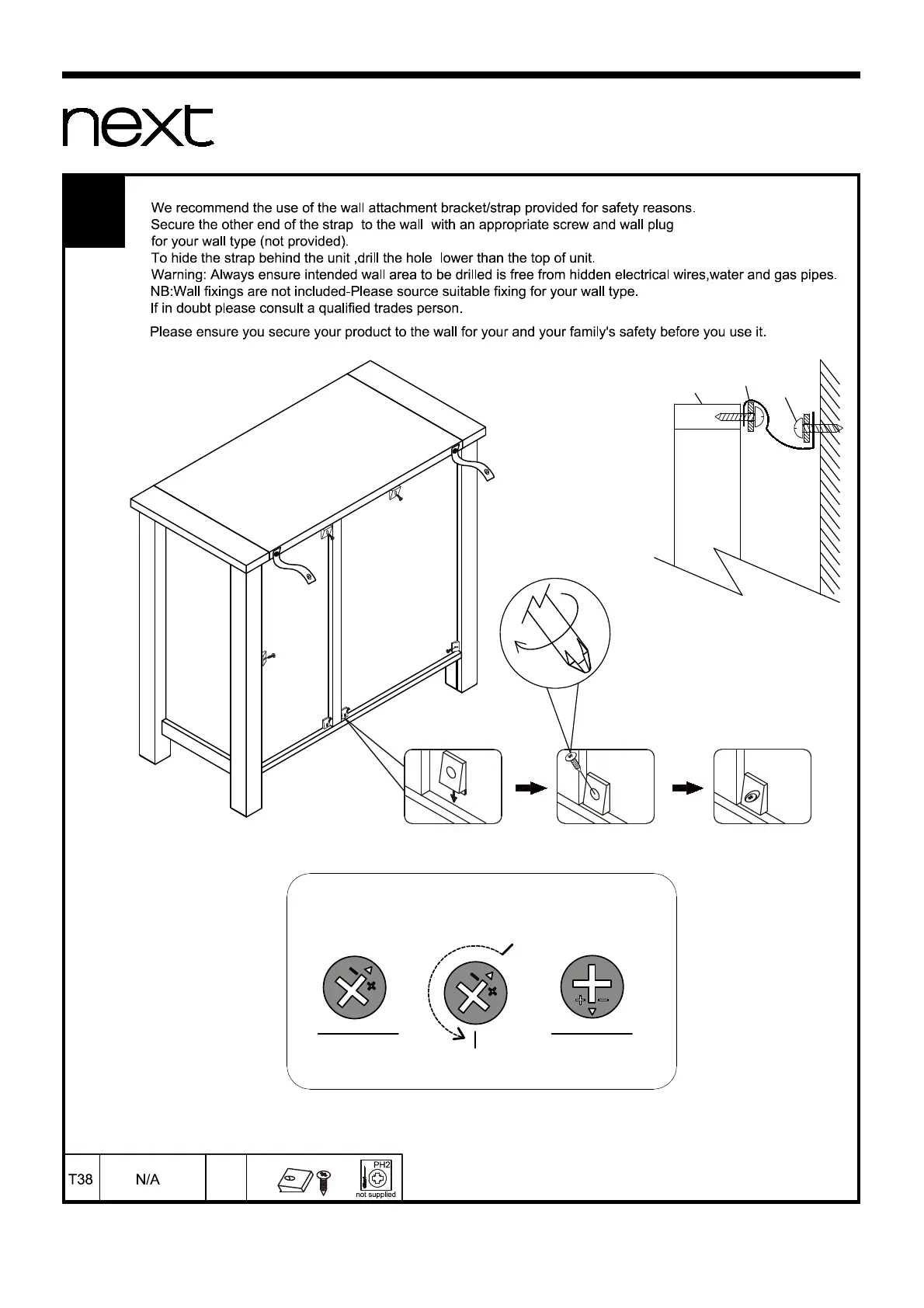

Assembly instructions
Produced in China for Next Retail Ltd.
WHEN LOOSENING THE CAM
TURN THE CAM IN A COUNTERCLOCKWISE DIRECTION
UNTIL THE ARROW POINTS IN THE POSITION SHOWN
IN THE DIAGRAMS BELOW
TURN
UNLOCKED
MAXIMUM
LOCK
TO UNLOCK
TOP
WALL
STRAP
SCREW
6
229150 / 259406 / 846730 / 857374
229150 / 259406 / 846730 / 857374-2020-V1.
MALVERN / MALVERN CREAM / DOVE GREY / CLASSIC CREAM SIDEBOARD
