PARKER BED (DESK)
565825-2019-V1.
Assembly instructions
1
Produced in China for Next Retail Ltd.
565825

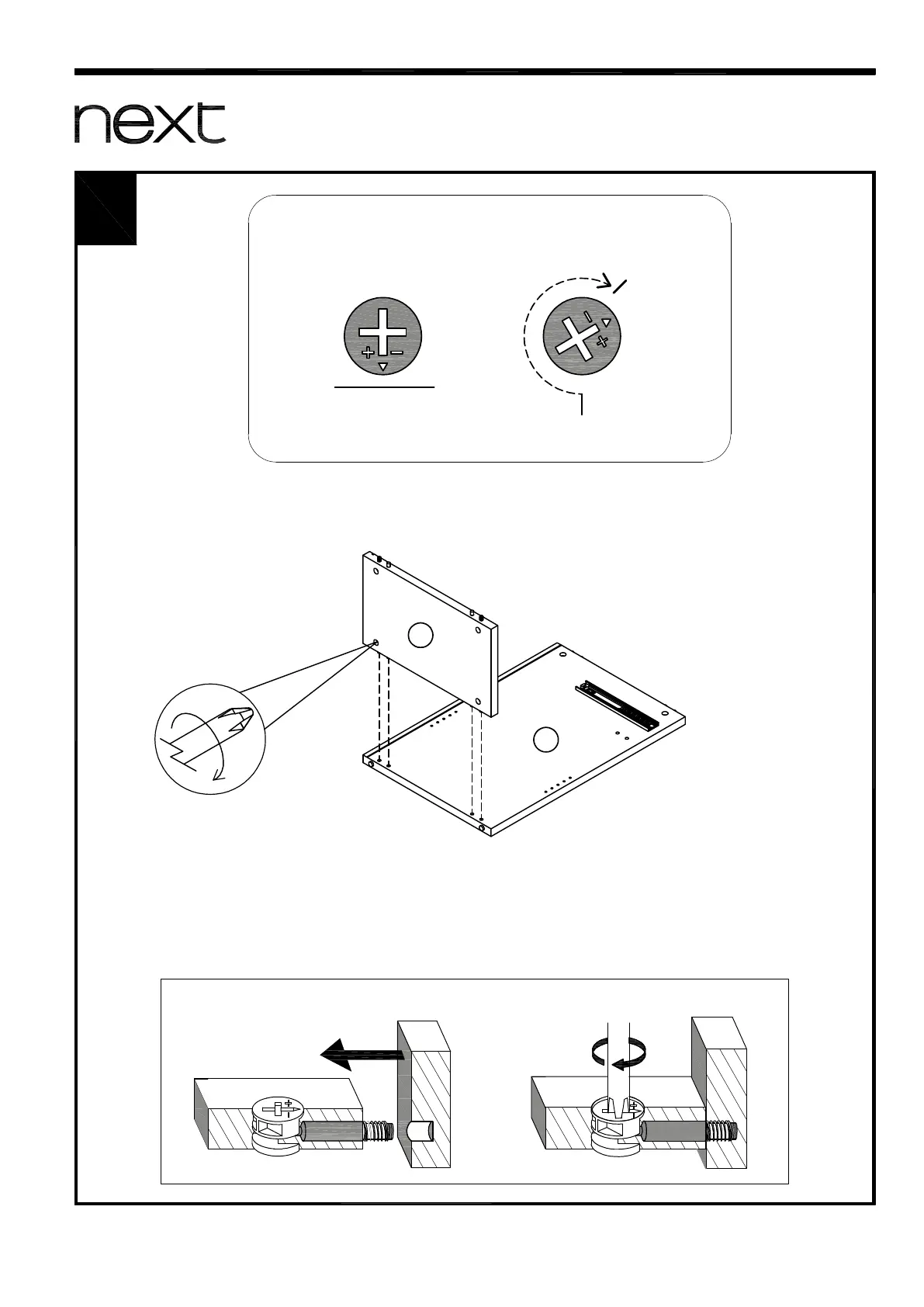

TURN THE CAM IN A CLOCKWISE DIRECTION
PUSH THE TWO PANELS TOGETHER ALLOWING THE
DOWEL TO ALIGN WITH THE HOLE
DON'T STOP UNTIL THE 2 O'CLOCK LOCK
TURN THE CAM IN A CLOCKWISE DIRECTION UNTIL THE
ARROW POINTS IN THE POSITIONS SHOWN IN THE
DIAGRAMS BELOW
START
CORRECT
LOCK
1
2
