Next VALENCIA - Cam Fastening Guide; Tightening Cam Procedure

5
VALENCIA / LOGAN TALL SHELVES
373501/406096/413495-2016-V1.

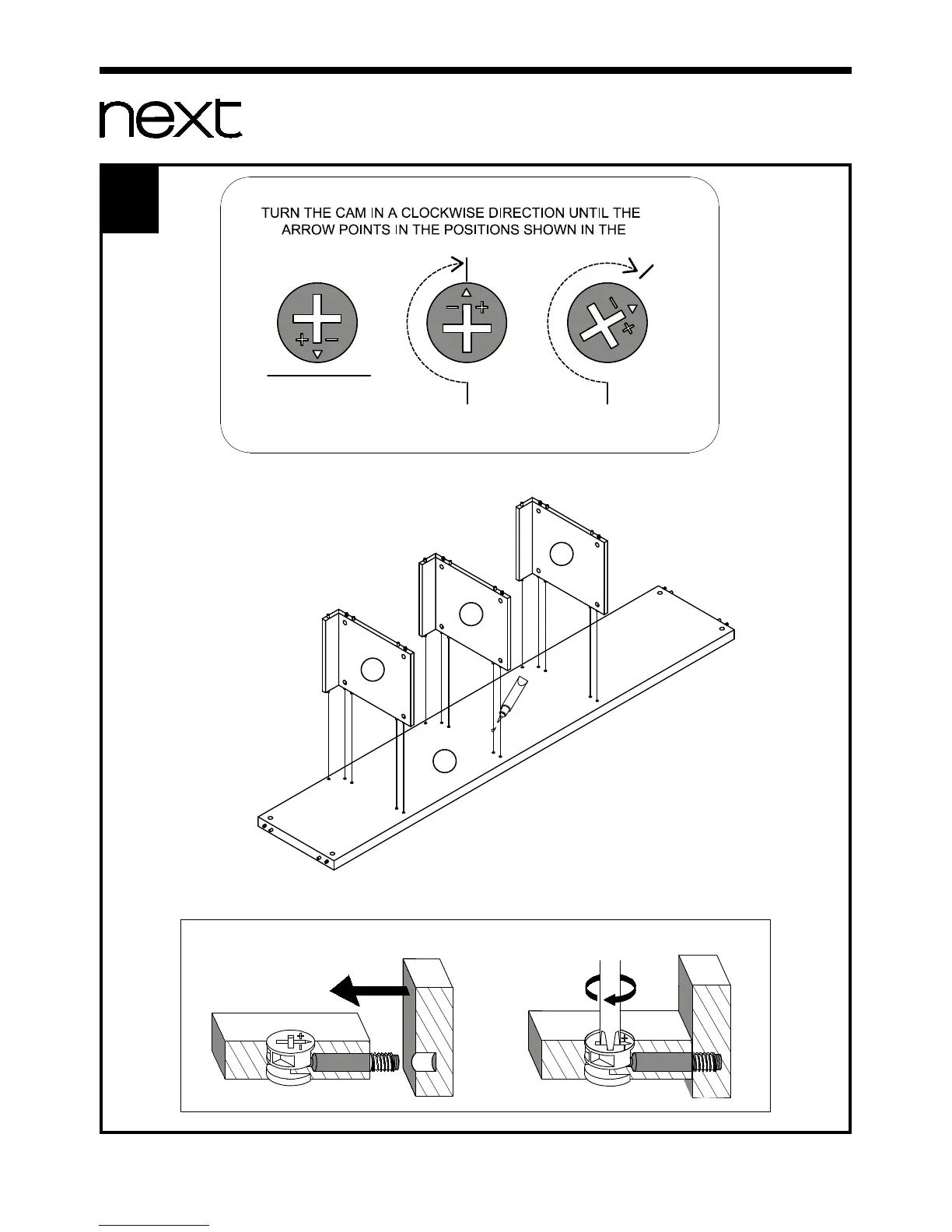

TURN THE CAM IN A CLOCKWISE DIRECTION
PUSH THE TWO PANELS TOGETHER ALLOWING THE
DOWEL TO ALIGN WITH THE HOLE
WHEN TIGHTENING THE CAM
DIAGRAMS BELOW
START
MINIMUM
LOCK
MAXIMUM
LOCK
Assembly instructions
1
Produced in China for Next Retail Ltd.
373501/406096/413495
1
2
2
2
