© National Instruments Corporation 5 Getting Started with the LabVIEW Real-Time Module

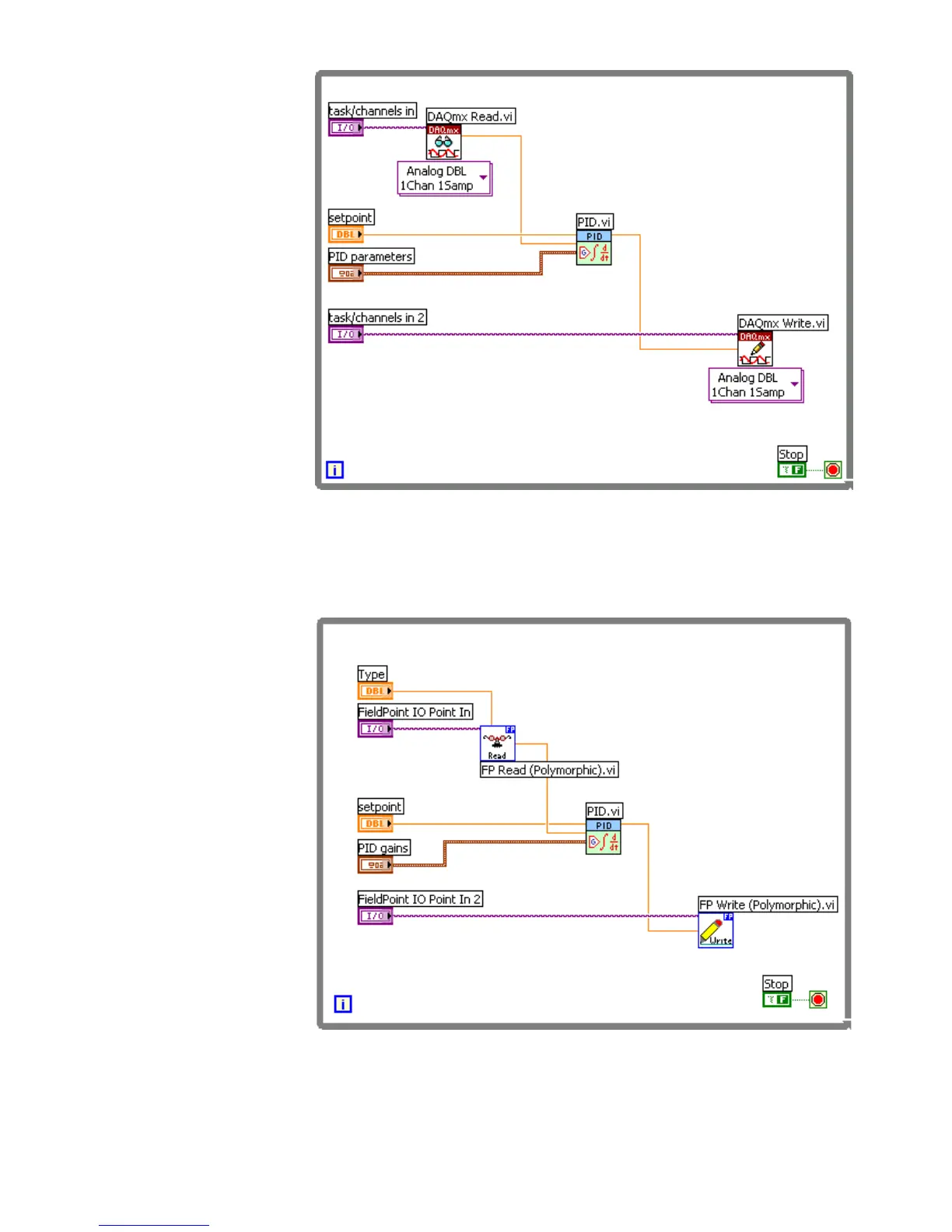

Figure 2. NI-DAQmx Control Loop
The block diagram for a FieldPoint I/O system should look similar to
Figure 3.
Figure 3. FieldPoint Control Loop
