EMINENT-E/CU/R 35, 55, 100, 120
INSTALLATION AND MAINTENANCE INSTRUCTIONS
EMINENT-E/CU/R 35, 55, 100, 120
General
* Requisite space (EMINENT-E) for replacement/inspec-
tion of the sacrificial anode.
35 litres: 180 mm
55 litres: 250 mm
100 litres: 390 mm
With vertical suspended assembly a chain anode can be
used, this only requires 180 mm above the water heater.

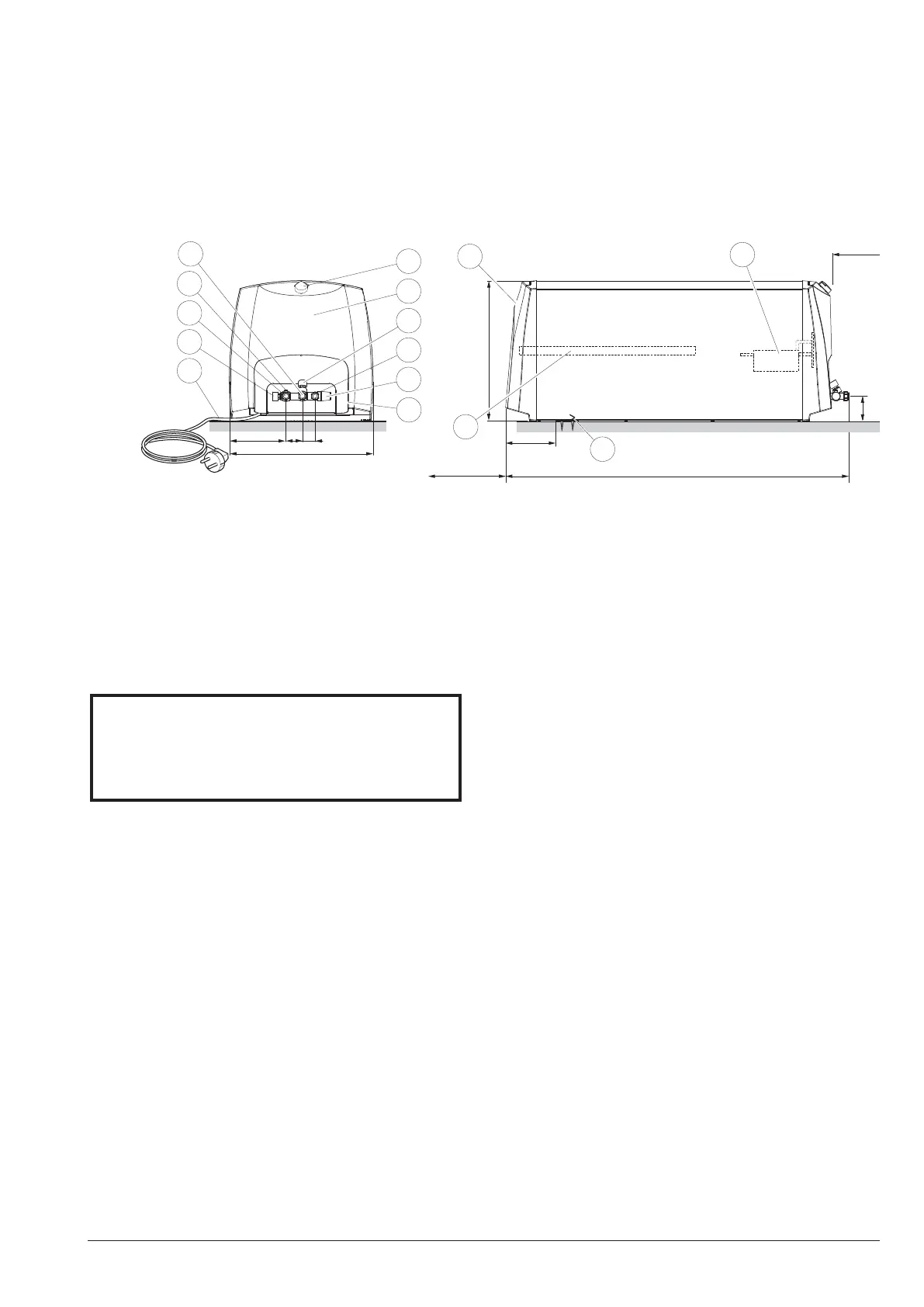

Dimensions and location of components
List of components
1 Power cord with earthed plug, length 850 mm
2 Plastic cover, electrical connection box
3 Plastic cover, anode (EMINENT-E)
5 Thermostat/temperature limiter
6 Immersion heater, RAR 14-112
12 Hanging bracket
13 Securing bracket
22 Shutoff/non-return valve
23 Safety/drainage valve
25 Mixing valve
40 Sacrificial anode (EMINENT-E)
41 Cold water connection, compression fitting
Ø 15 mm
42 Mixed water connection, compression fitting
Ø 15 mm
43 Connection safety/drainage valve, compression ring
coupling Ø 15 mm
45 Venting screw (for air supply when draining)
95 Serial number sticker
455
EMINENT 35 = 565
EMINENT 55 = 750
EMINENT 100 = 1120
1
45
42
25
41
22
43
23
2
5
40
min 200
*
95
84
EMINENT 120 = 1304
184
467
54
40
3
6
min 145
12
The serial number (95),should always be stated
with all correspondence with NIBE.
072 _ _ _ _ _ _ _ _ _ _ _
