MOTOR PROTECTION BREAKER /MINIATURE
CIRCUIT BREAKER
Motor protection breaker (AA11-FC10) / miniature circuit
breaker (AA11-FC1) cuts the power to the compressor
if the current is too high. It is located behind the front
cover and is reset manually.
Caution
Check the miniature circuit-breaker, temperat-
ure limiter and motor protection breaker. They
may have tripped during transportation.
ACCESSIBILITY, ELECTRICAL CONNECTION
The plastic cap of the electrical boxes is opened using
a screwdriver.
NOTE
The door to the input card circuit board is
opened using a Torx 20 screwdriver.

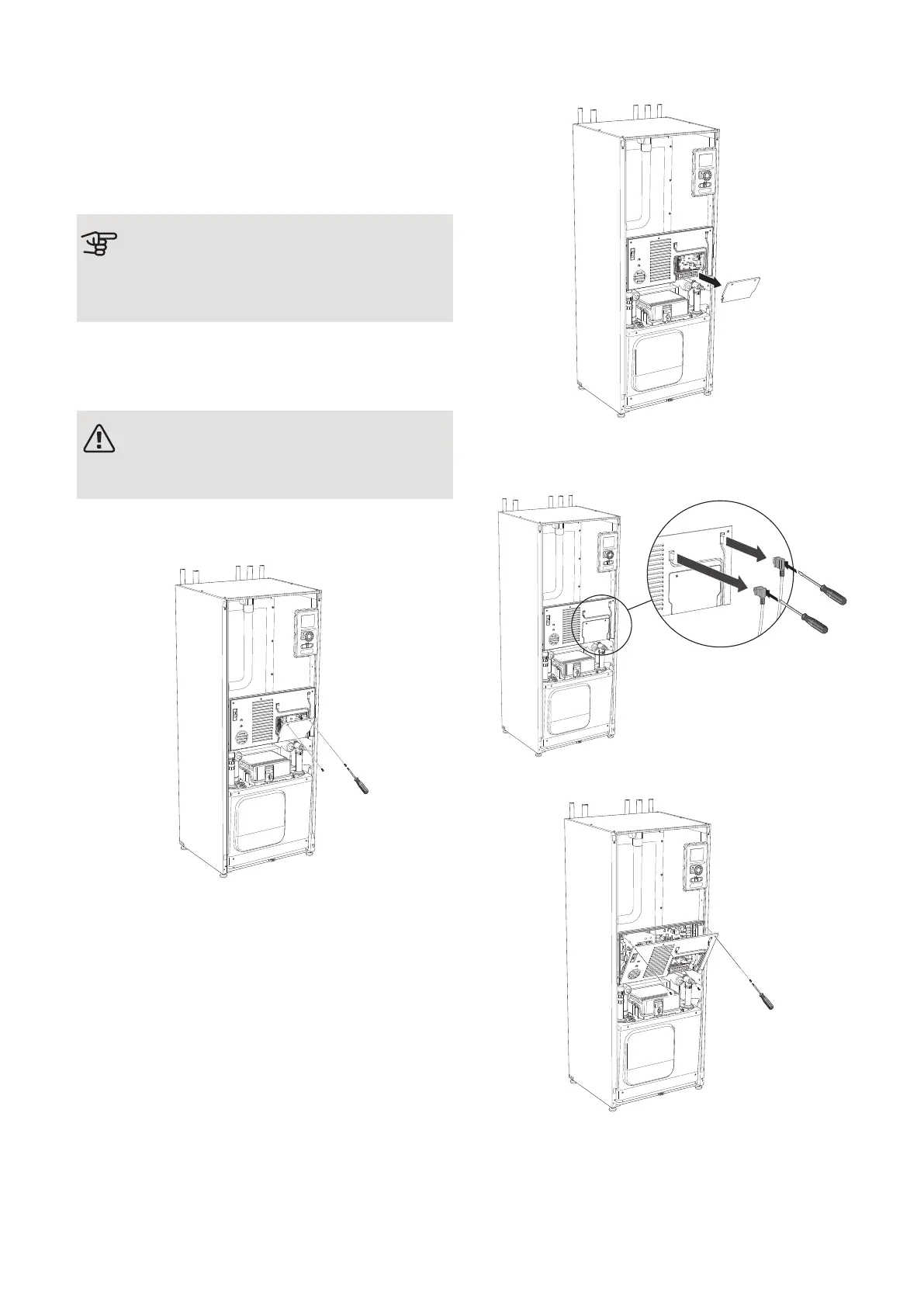

Removing the cover, input circuit board
1.
Unscrew the screws and angle out the cover.
L
E
K
L
E
K
L
E
K
L
E
K
2.
Pull off the cover.
L
E
K
L
E
K
L
E
K
L
E
K
Removing the hatch, electrical cabinet
1.
Disconnect the contacts.
LEK
2.
Unscrew the screws and angle out the cover.
L
E
K
L
E
K
L
E
K
L
E
K
21Chapter 5 | Electrical connectionsNIBE F1145
