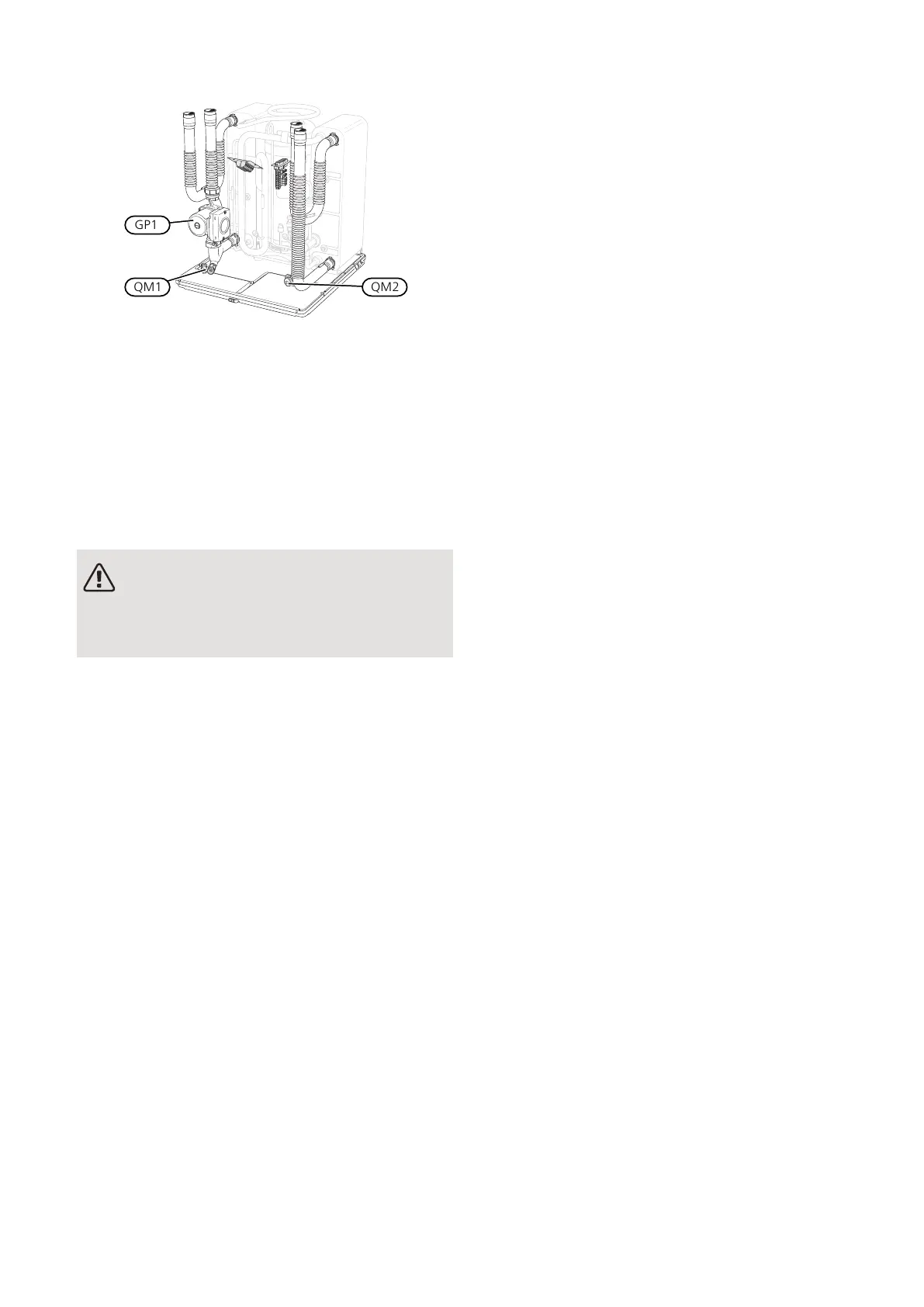

Cooling module EP15
DRAINING THE WATER HEATER (IF DOCKED)
The siphon principle is used to empty the hot water
heater. This can be done either via the drain valve on
the incoming cold water pipe or by inserting a hose into
the cold water connection.
DRAINING THE CLIMATE SYSTEM
In order to carry out service on the climate system, it
may be easier to drain the system first. This can be done
in different ways depending on what needs doing:
NOTE
There may be some hot water when draining
the heating medium side/climate system. There
is a risk of scalding.
Draining the heating medium side in a cooling
module
If, for example, the heating medium pump requires re-
placing or a cooling module requires servicing, drain the
heating medium side as follows:
1.
Close the shut-off valves outside the heat pump for
the heating medium side (return and flow line).
2.
Connect a hose to the bleed valve (QM1) and open
the valve. Some liquid will run out.
3.
Air must get into the system for the remaining liquid
to run out. To let in air, loosen the connection slightly
at the shut-off valve that joins the climate system
with the heat pump by connection (XL2) for the re-
spective cooling module.
When the heating medium side is drained, the required
service can be performed and/or replacement of any
components carried out.
Draining the entire climate system
If the entire climate system requires draining, do this as
follows:
1.
Connect a hose to the bleed valve (QM1) and open
the valve. Some liquid will run out.
2.
Air must get into the system for the remaining liquid
to run out. This is done by unscrewing the bleed
screw on the highest placed radiator in the property.
When the climate system is empty the requisite service
can be carried out.
EMPTYING THE BRINE SYSTEM
In order to service the brine system it may be easier to
drain the system first.
Draining the brine system in a cooling module
If, for example, the brine pump requires replacing or a
cooling module requires servicing, drain the brine system
by:
1.
Close the shut-off valve outside the heat pump for
the brine system.
2.
Connect a hose to the drain valve (QM2), place the
other opening of the hose in a container and open
the valve. A small amount of brine will flow into the
container.
3.
Air must get into the system for the remaining brine
to run out. To let in air, loosen the connection slightly
at the shut-off valve that joins the brine side with
the heat pump by connection (XL7) for the respect-
ive cooling module.
When the brine side is empty the requisite service can
be carried out.
45Chapter 4 | ServiceNIBE F1355
