5.

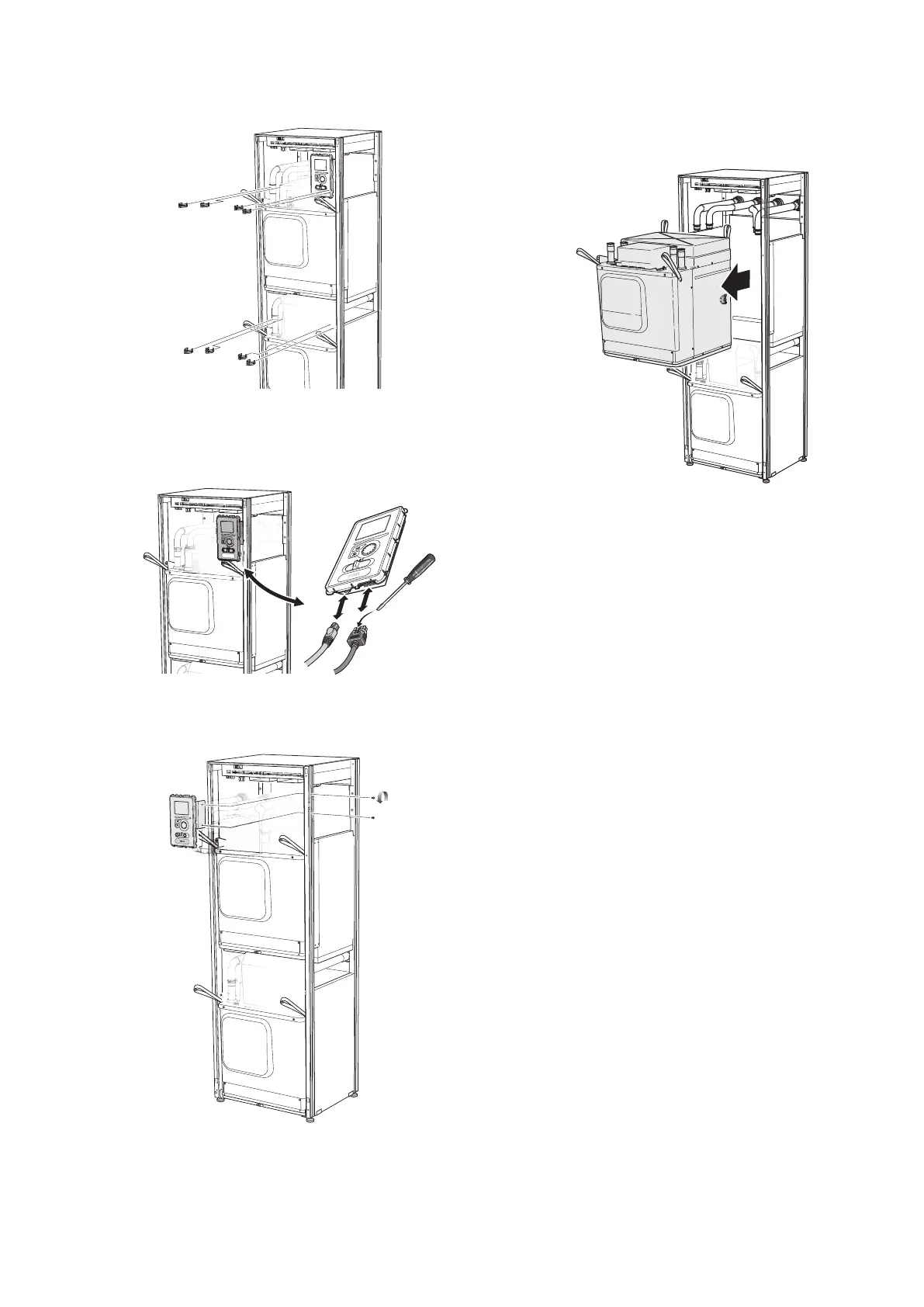

Pull off the clips (four for each cooling module) and
separate the pipes carefully.
6.
Remove the connector from the underside of the
display unit (this procedure need only be done if you
are going to pull out the upper cooling module).
L
EK
7.
Remove the two screws holding the display unit in
the frame (this procedure only needs to be done if
you are going to pull out the upper cooling module).
L
E
K
8.
Carefully pull out the upper cooling module (EP15)
using the module's lifting eyelets.
Use a height adjustable relief surface for this proced-
ure.
LEK
NIBE F1355Chapter 4 | Service48
