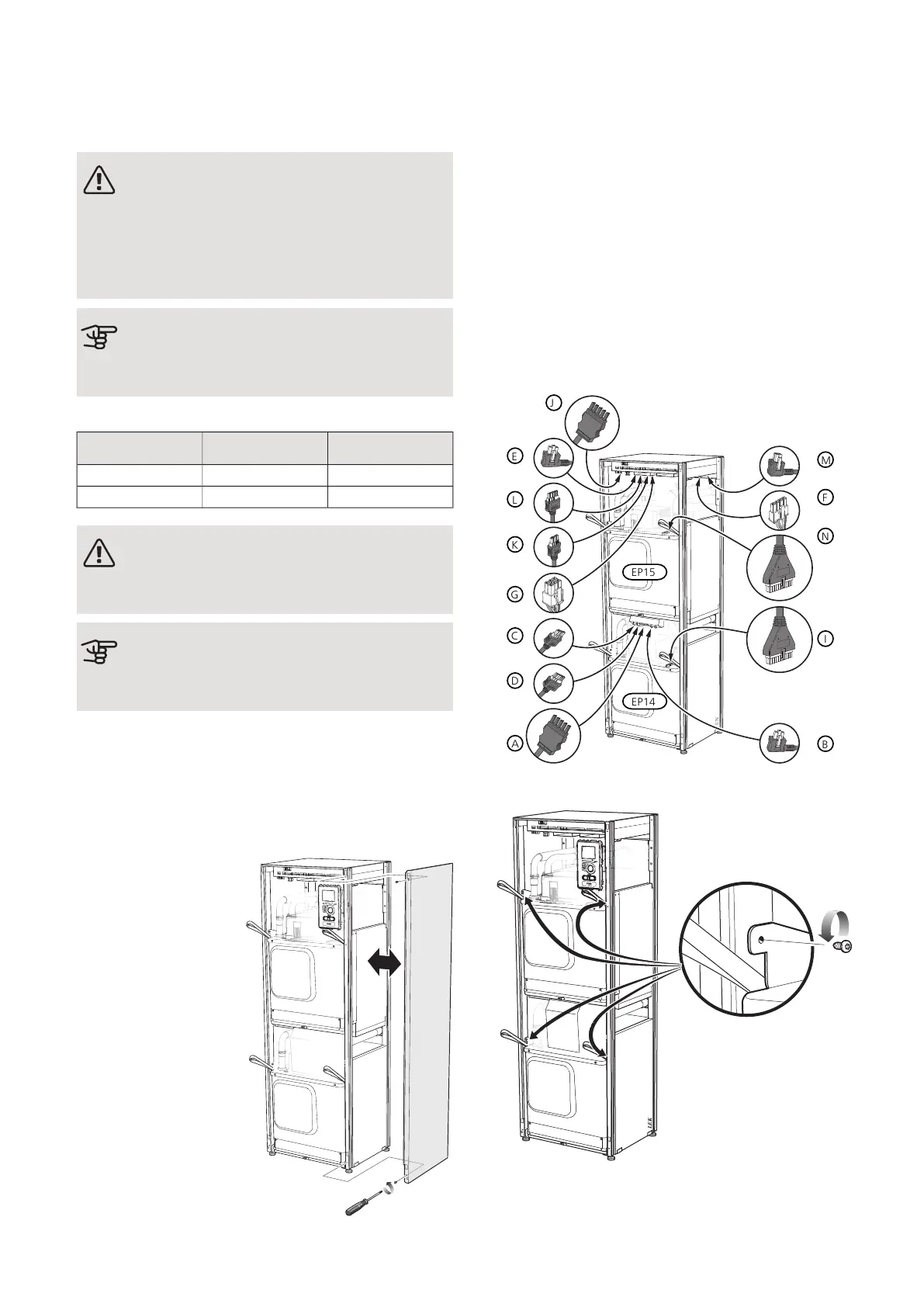

EXTRACTING THE COOLING MODULES
The cooling modules can be pulled out for service and
transport.
NOTE
The heat pump must not be moved when only
the lower cooling module has been pulled out.
If the heat pump is not secured in position the
upper cooling module must always be removed
before the lower one can be pulled out.
Caution
The cooling modules are easier to remove if
drained first (see page 45).
Weight of the cooling module
EP15EP14Type (F1355)
130 kg125 kg28 kW
144 kg126 kg43 kW
NOTE
Switch off F1355 and turn off the current at
the safety breaker.
Caution
Remove the front cover according to the de-
scription in the installer manual.
1.
Close the shut-off valves outside the heat pump.
Drain the cooling module or cooling modules accord-
ing to the instructions on page 45
2.
Remove the side panel to be able to remove the
display unit (this procedure need only be done if you
are going to pull out the upper cooling module).
L
E
K
3.
Disconnect the connectors for the relevant cooling
module.
Cooling module EP15 (upper)
• XF8 (L)
• XF9 (M)
• EP15-AA100:XF1 (N)
• XF2 (J)
• XF6 (E)
• XF7 (K)*
*Only needs to be removed at 28 kW.
Cooling module EP14 (lower)
• XF10 (F)
• XF11 (G)
• EP14-AA100:XF1 (I)
• XF1 (A)
• XF3 (B)
• XF4 (C)
• XF5 (D)
UN
A
B
M
L
I
C
K
J
F
N
D
E
G
EP14
EP15
4.
Remove the screws (two for each cooling module).
LEK
