9

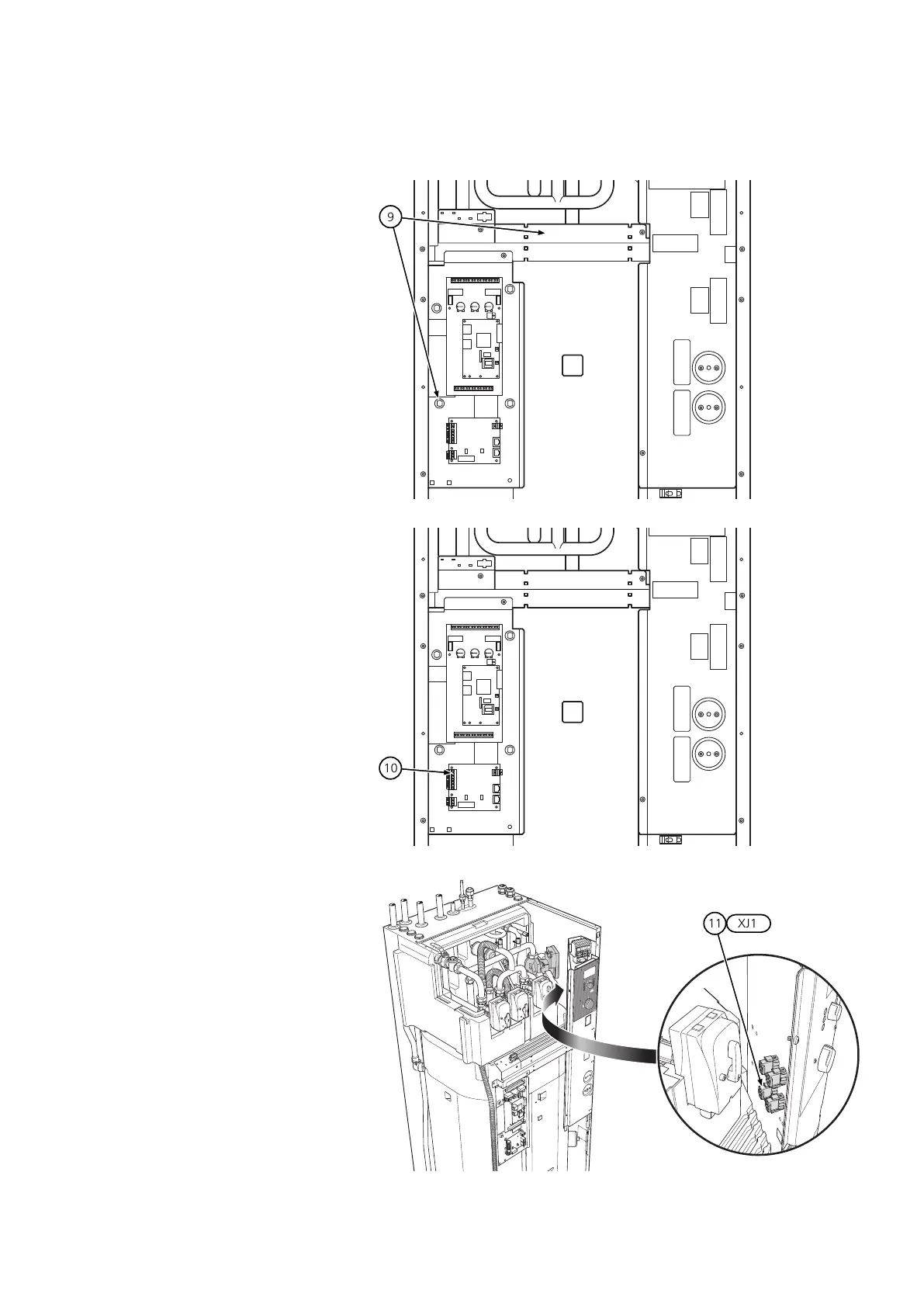

Förlägg PWM-kabeln i övre kana-
len, led den bakom metallhöljet till
kommunikationskortet (AA23). Fix-
era med buntband.
9.
10
Anslut PWM-kabeln till kommunika-
tionskortet (AA23), terminal X1.
Brun ledare (PWM) till position
1.
Blå ledare (PWM GND) till posi-
tion 2.
10.
LEK
11 XJ1
Anslut strömkabeln till terminal XJ1.11.
| SE12
