Remove the circulation pump, start
with the lower pipe connection.
6.
LEK
GM20
XL4 XL3 XL2 XL1 XL15 XL13 XL14 PF4 PF1
UB1
UB2
EP2
X1
GP1
SF1
FA2
FA1
BT30
FD1
XL8
BT24
XL9
EB1
HQ1
QM30
QM31
QN11
AA22
AA22-R26
AA22-R25
AA22-R24
AA21
AA23
BT6
BT19
QM1
PF3
LEK
B A
C

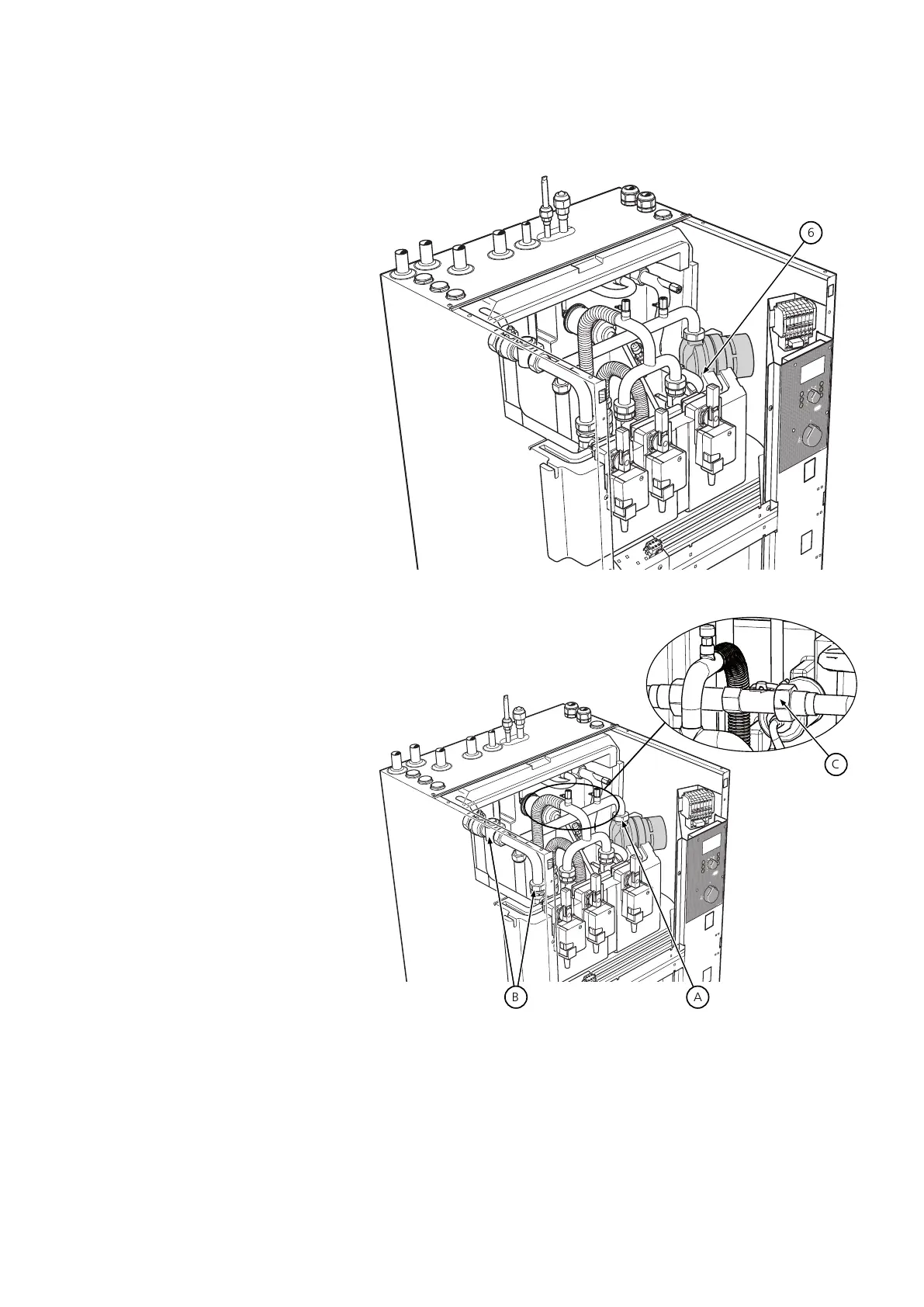

Without energy meter: Slacken
off the upper nut (A) and remove
the pipe by detaching the two pipe
connections (B).
7a.
With energy meter: Slacken off
the upper nut (A) and remove the
pipe by detaching the pipe connec-
tion to the flow meter C).
7b.
Remove the circulation pump and
replace the top cover.
8.
Start by cutting out the EPP within
the cross-hatched area, between
the min. and max. measurements,
see image. It is sufficient to cut it
down to the correct depth with a
knife. The part can then be broken
off.
9.
| GB18
