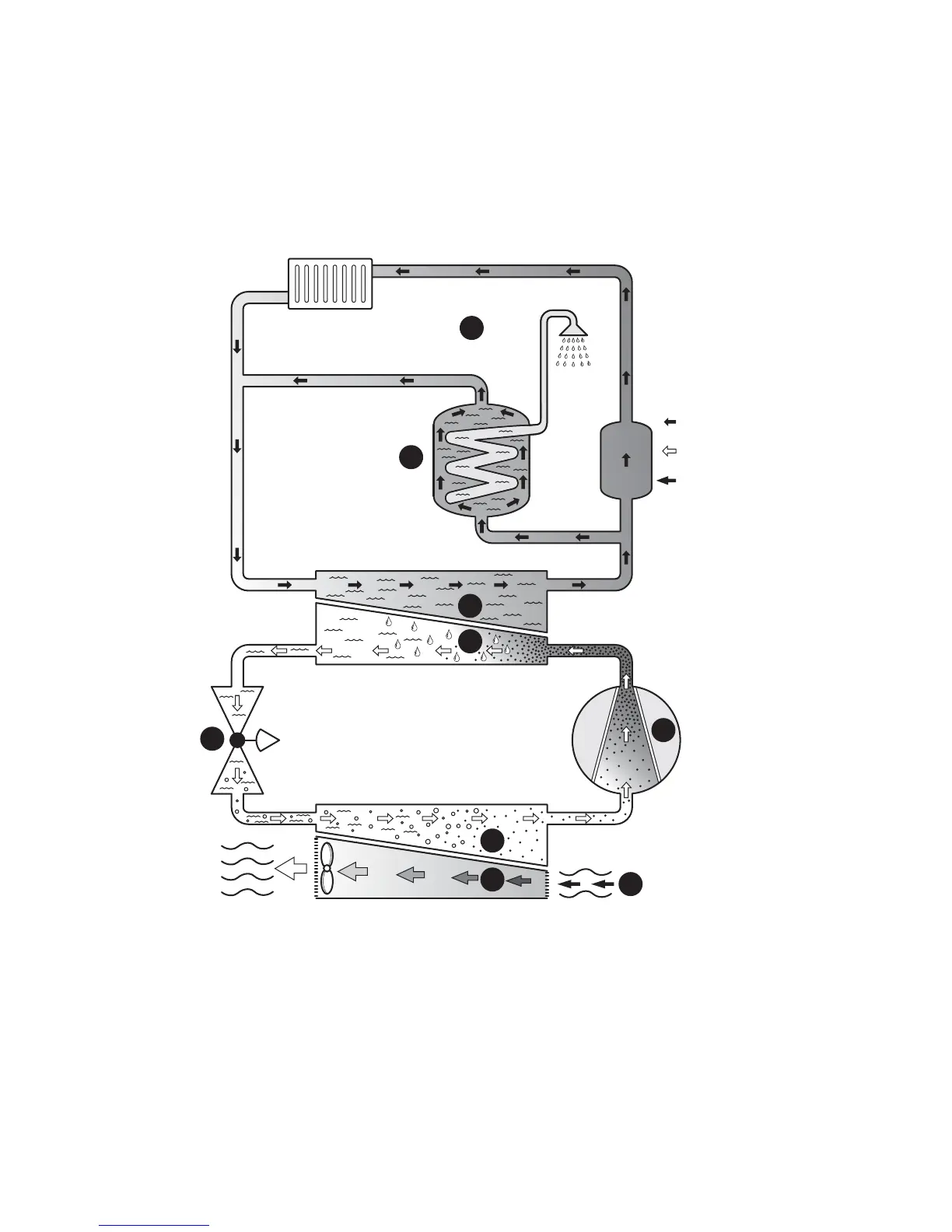

The heating installation – the
heart of the house
Förångare
Kondensor
80 °C
2 °C-3 °C
0 °C -7 °C
Expansionsventil Kompressor
A
D
F
B
C
E
Värmebärare
Köldmedium
Uteluft
55 °C45 °C
H
I
I
G
+HDWLQJ PHGLXP
2XWGRRU DLU
5HIULJHUDQW
(YDSRUDWRU
&RQGHQVHU
([SDQVLRQ YDOYH
&RPSUHVVRU
+HDW VRXUFH



The temperatures are only examples and may vary between different installations and time
of year.
9NIBE™ VVM 500Chapter 2 | The heating installation – the heart of the house

Nibe VVM 500 Specifications

General

Type	Indoor module
Volume	500 liters
Integrated immersion heater	Yes
Energy efficiency class, DHW preparation	A
Compatible with	NIBE air/water heat pumps
Refrigerant	Not applicable
Cooling Capacity	Matches the heat pump it is connected to.
