–– GROUP “C” PROCEDURES ––
COMMON to motors configured for either ONE-WAY or TWO-WAY communications
Procedures which can only be completed with a Nice transmitter with the s, n, t, PRG, ESC keys (eg. “ERA P”, “ERA P BD”, “ERA W”, “ERA W BD”)
GENERAL WARNINGS RELATING TO THE PROCEDURES
• Before starting any programming, move the awning to an intermediate position, away from the Up and Down limit switch-
es.
• All the programming procedures must be completed by selecting a single channel on the transmitter.
• If the programming transmitter controls multiple groups of screen motors, before sending a command requested by
the procedure, select the group to which the motor being programmed belongs.
• When the motor is powered up, if it makes 2 movements this means that: at least one transmitter has been memorised
and no limit switch has been programmed; if, on the other hand, it makes 1 movement this means that: no transmitter
has been memorised.
• When running a procedure, you can abort the procedure at any time by pressing ESC (on the back of the transmitter).
• When the Up and Down limit switches are not programmed, the awning can only be commanded in hold-to-run mode -
i.e. you must hold the button down until the awning reaches the desired position. The movement stops when you release
the button in any position.
• When the Up and Down limit switches have been programmed , the awning can be controlled by simply pressing and
releasing the buttons. Doing so starts the movement, which is stopped automatically by the system when the awning
reaches the programmed position.
• To perform all the procedures, it is necessary to use a transmitter memorised in “Mode I” (for example, the one memorised
with procedure A.1 motor configured for ONE-WAY communication, B.1 motor configured for TWO-WAY communication
or D.1 motor configured for ONE-WAY communication and OLD generation transmitter lacking the PRG and ESC keys).
• To change the motor’s configuration (from ONE-WAY to TWO-WAY and inversely), it is necessary to perform the “TOTAL
deletion of the memory” (A.4 motor configured for ONE-WAY communication, B.4 motor configured for TWO-WAY com-
munication or D.4 motor configured for ONE-WAY communication and OLD generation transmitter, lacking the PRG and
ESC buttons) and then switch the motor off and on again.
C.2 - MANUAL programming of the UP (“0”) and DOWN (“1”) limit switches
NOTES AND WARNINGS
• This procedure is obligatory only for awnings without a mechanical stop at the Up position.
• This procedure can be used if the limit switches have been programmed using the semiautomatic procedure (C.2).
• After the limit positions have been programmed, the awning can be controlled by simply pressing the appropriate buttons on the control unit. The awning will move
between the positions set with procedures C.1.1 and C.1.2.

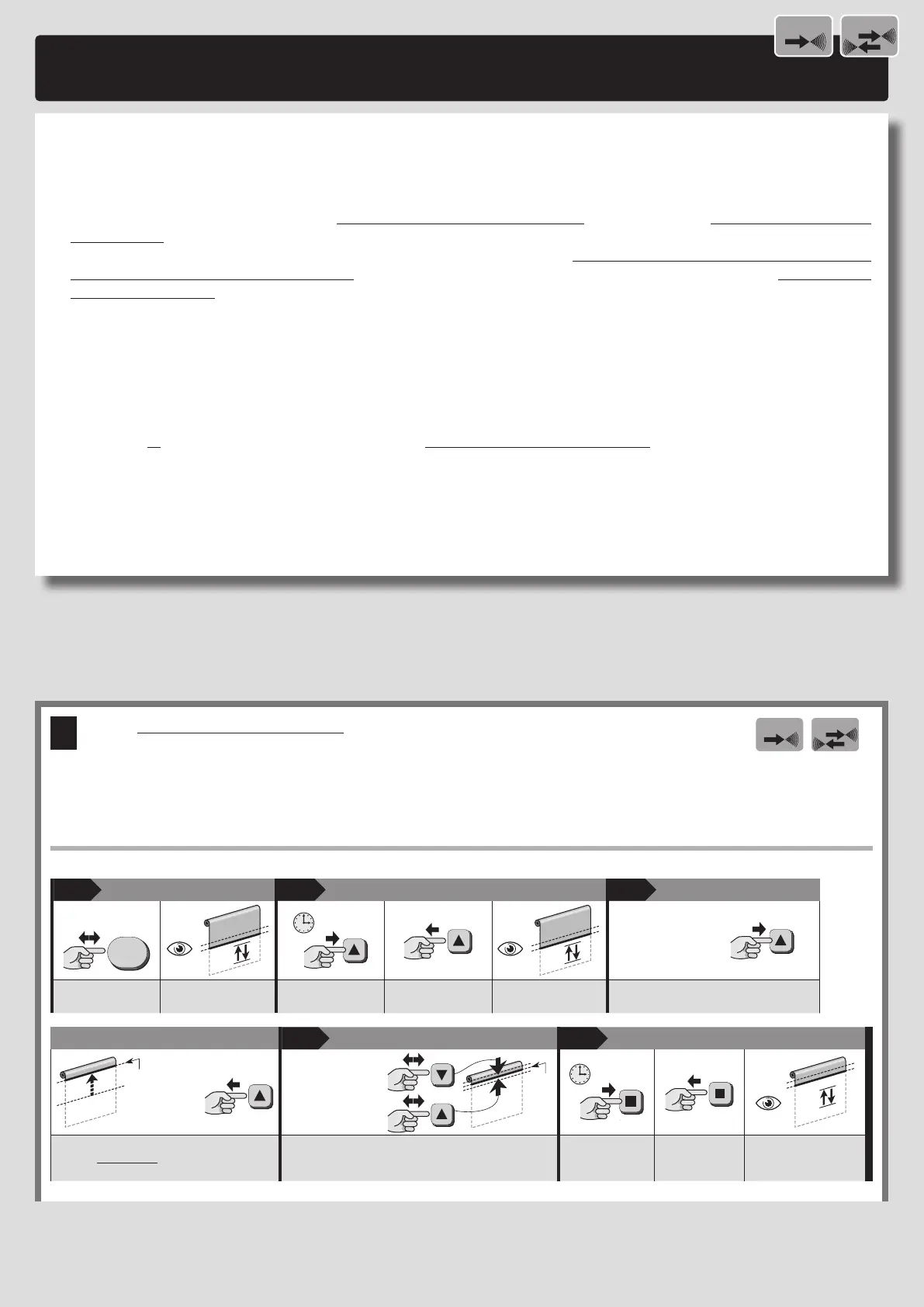

C.1.1 - To program the UP limit switch (“0”)
1 2 3
continues
(x 1)
PRG
Command
an UP
movement
Press and release
the button (1 time);
count 2 movements. Hold down the but-
ton and
release it after 5
seconds;
count 2 movements. Hold down the button and wait...
3
4 5
end
“0”
↕
Finely adjust-
ing the posi-
tion of limit
switch “0”
“0
3
... release the button as soon as the awning
reaches position “0” ( UP limit switch).
Press the buttons until you reach the desired position.
Alternatively, for more accurate adjustment, run proce-
dure A.2.1, B.3 or D.2.1.
Hold down the
button and
release it after 5
seconds;
count 3 movements.
C
English – 16
