Nice E FIT M 817 BD

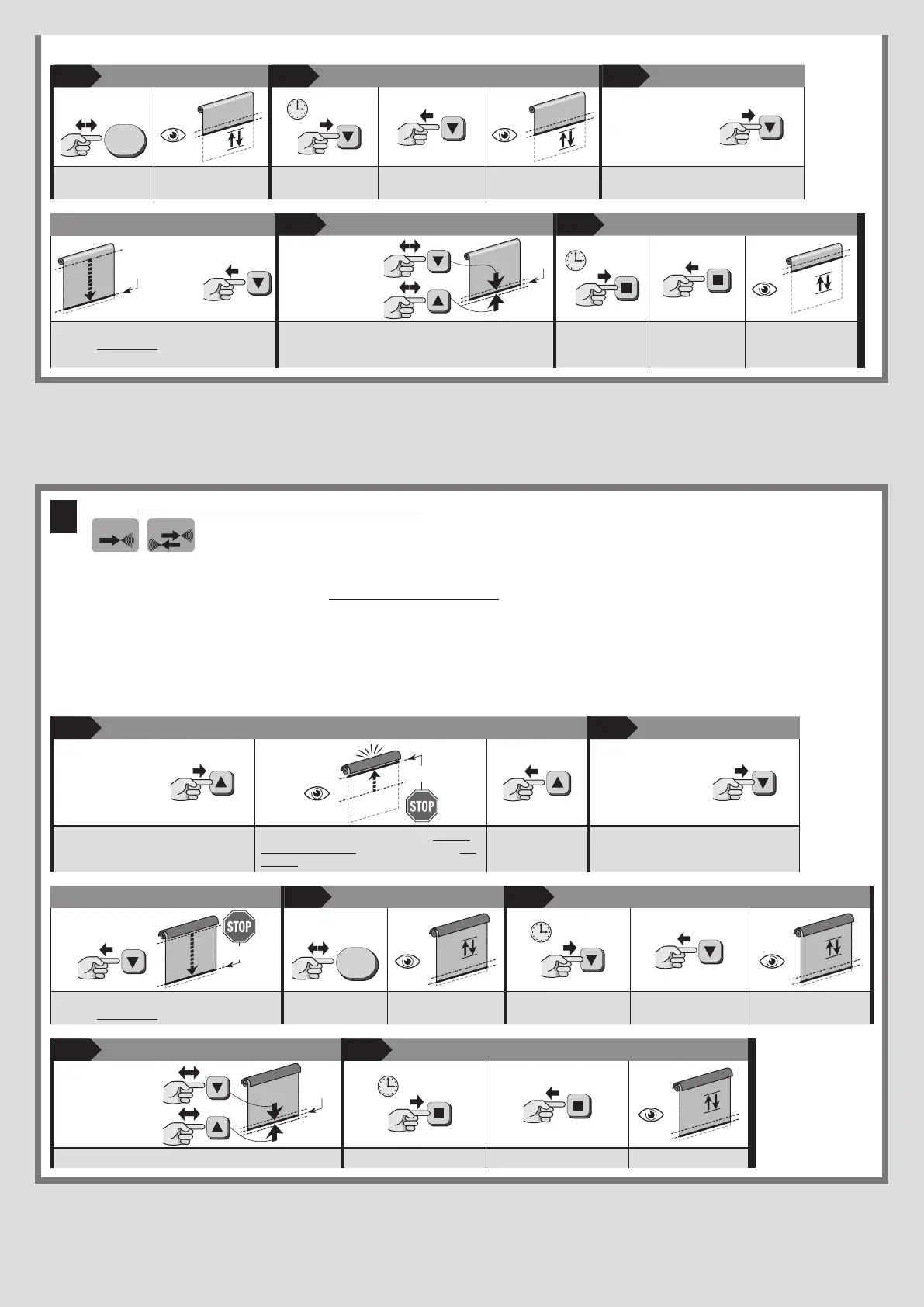

C.1.2 - To program the DOWN limit switch (“1”)
1 2 3
continues

(x 1)
PRG
2
= 5 sec
2
Command
an DOWN
movement 
Press and release
the button (1 time);
count 2 movements. Hold down the but-
ton and
release it after 5
seconds;
count 2 movements. Hold down the button and wait...
 3
4 5
end
“1”
↕
Finely adjust-
ing the posi-
tion of limit
switch “1” 
“1
”
= 5 sec
3
... release the button as soon as the awning
reaches position “1” ( DOWN limit switch).
Press the buttons until you reach the desired position.
Alternatively, for more accurate adjustment, run proce-
dure A.2.1, B.3 or D.2.1.
Hold down the
button and
release it after 5
seconds;
count 3 movements.
C.2 - SEMIAUTOMATIC programming of the UP (“0”) and DOWN (“1”) limit switches
MONO
BiDi
NOTES AND WARNINGS
• Use this procedure solely for awnings with mechanical Up “0” limit switch stop.
• If, previously, the limit switches were programmed with the “Manual (C.1)” programming, to complete this procedure before proceeding with the “Total or partial de-
letion of the memory [A.4.1 (motor configured for ONE-WAY communication), B.4.1 (motor configured for TWO-WAY communication) or D.4.1 (motor configured for
ONE-WAY communication and OLD generation transmitter lacking the PRG and ESC keys) option ‘A’ or ‘D’]”.
• After the limit positions have been programmed, the awning can be controlled by simply pressing the appropriate buttons on the control unit. The Up movement
will be limited when the awning impacts against the mechanical lock (box) in the Upper limit switch “0”. With each impact, the height of this limit switch will be auto-
matically updated by the “Automatic limit switch update” function (paragraph 5.4). Conversely, the Down movement will be limited by the Lower limit switch “1” (limit
switch set by the installer at a desired point).
1 2
continues

Command
an UP
movement 
“0”
Command
an DOWN
movement 
Hold down the button and... ... wait for the awning to be stopped when it
collides with the box (= UP limit switch = po-
sition “0”).
release the button. Hold down the button and wait...
 2
3 4
 5
“1”
(x 1)
PRG
2
= 5 sec
2
... release the button as soon as the awning
reaches position “1” ( DOWN limit switch).
Press and release
the button (1 time);
count 2 movements. Hold down the but-
ton and
release it after 5 sec-
onds;
count 2 movements.
5 6
end
Finely adjust-
ing the posi-
tion of limit
switch “1” 
“1”
= 5 sec
3
Press the buttons until you reach the desired position. Hold down the button and release it after 5 seconds; count 3 movements.
C
17 – English
