English – 13
5.2 - Learning the devices
Once the power is connected, the control unit must recognize the devices connected on the STOP input and the conguration of the PHOTO input.

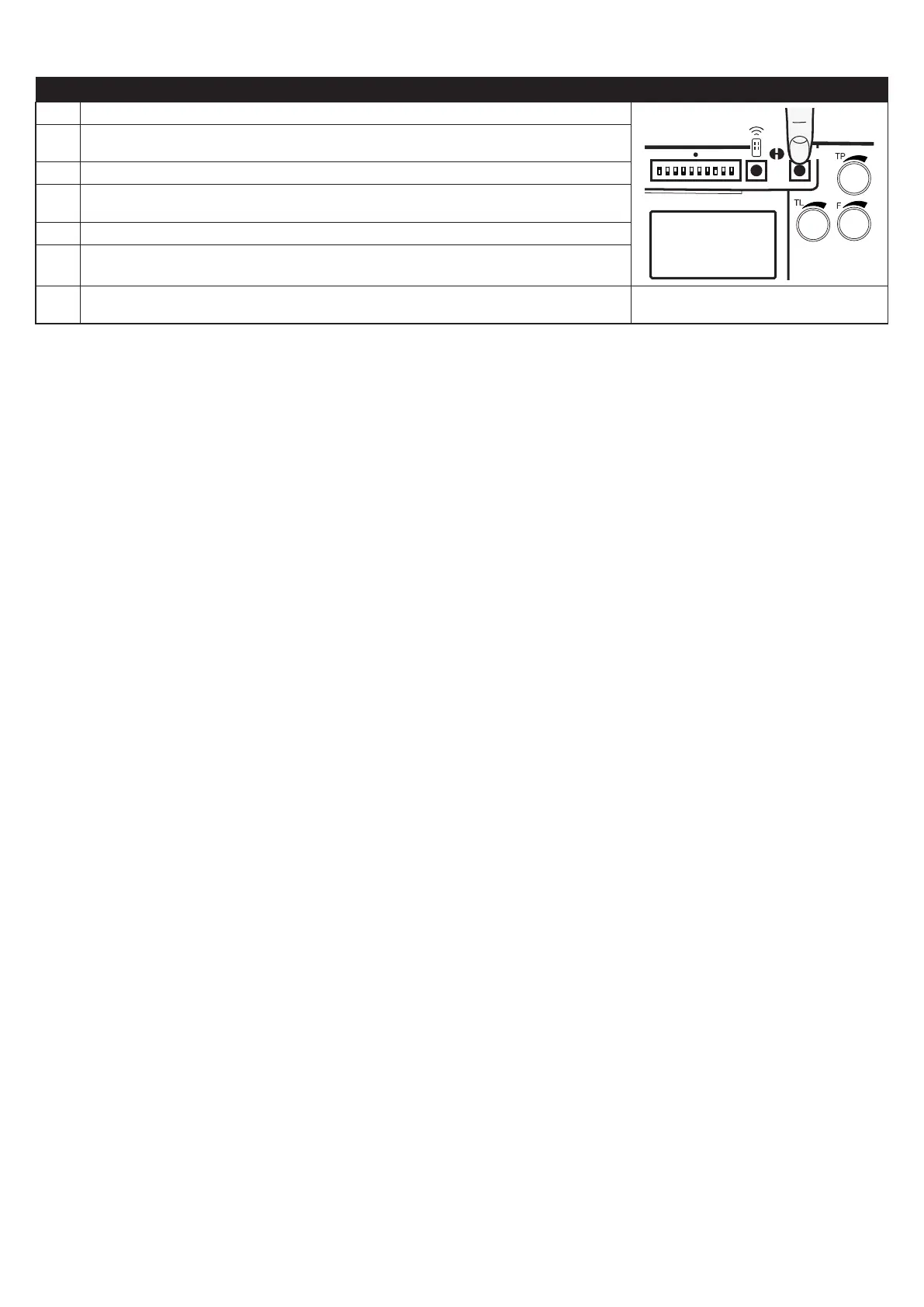

Table 7
1 Press the PROGRAM key and do not release it
PROGRAM SWITCH
LED RADIO R
RADIO
1234
5 678910
PROGRAM
TLM
2 After 3 seconds, the device recognition procedure starts; the OK LED starts ashing
quicker, keep pressing the PROGRAM key
3 Wait a few seconds for the control unit to nish recognising the devices
4 At the end, the STOP LED must be lit and the OK LED must be uninterruptedly on with a
green light
5 Release the PROGRAM key within 10 seconds
6 At this point the OK LED ashes green 3 times conrming the recognition is complete
7 If the recognition phase is not successful, the OK LED ashes red 5 times
Learning the connected devices can be repeated at any time, even after installation, for example if a device is added; to carry out the new
learning procedure, see section 8.1 "Adding or removing devices".
Once the device recognising procedure has been completed, check the PHOTO and STOP leds are lit; if this is not the case, proceed as per
point 05 of paragraph 5.1 - Hooking the automation up to the mains. Once the operations have been completed, close the cover with its bolt.
