3ashes
1 second pause
3ashes
Activation of the “motor force” limiting device During the movement, the gate experienced excessive friction; identify
the cause.
4ash
1 second pause
4ash
Activation of the STOP input At the starting of the manoeuvre or during the movement, the STOP input
was activated; identify the cause
5ash
1 second pause
5ash
Error in the internal parameters of the elec-
tronic control unit
Wait at least 30 seconds, then try giving a command. if the condition
persists it means there is a malfunction and the electronic board has to
be replaced
6ash
1 second pause
6ash
The maximum manoeuvre limit/hour has
been exceeded
Wait for a few minutes until the manoeuvre limiting device drops to under
the maximum limit
7ash
1 second pause
7ash
There is an error in the internal electric
circuits
Disconnect all the power circuits for a few seconds and then try to give
the command again. If the condition persists it means there is a serious
malfunction and the electronic board has to be replaced
8ash
1 second pause
8ash
A command that does not permit other
commands to be performed is already
present.
Check the type of command that is always present; for example, it could
be a command from a timer on the “open” input.
9.5 - Control unit signals
The leds on the control unit's terminals, connectors and keys, issue signals to indicate their normal/faulty operation.
Table 20 describes the causes and solutions for each signal.

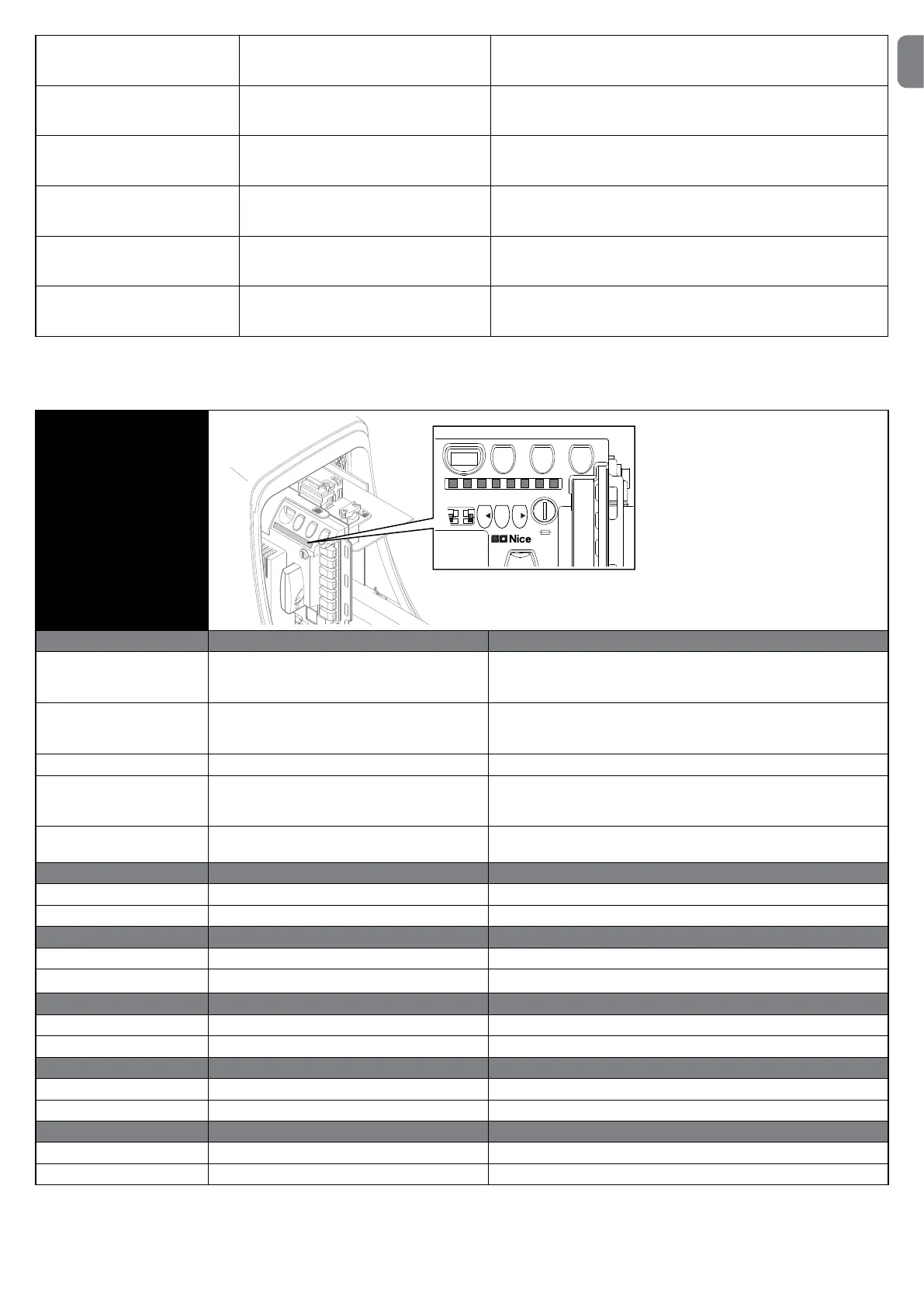

TABLE 20
Terminalledsoncontrol
unit
Stop
Set
Close
Open
SCA
Flash
L1 L2 L3 L4 L5 L6 L7 L8
1.6A T
BlueBusled Cause Solution
Off Malfunction Check for presence of the power supply; check that the fuses are not
blown; in this case, identify the cause of the fault and then replace with
versionswiththesamespecications.
On Serious malfunction There is a serious malfunction; try switching off the control unit for a few
seconds; if the condition persists, it means there is a malfunction and the
circuit board has to be replaced.
1ashpersecond Everything OK Normal control unit operation.
2quickashes Status variation This is normal when there is a change in one of the inputs: SS, STOP,
OPEN, CLOSE, triggering of photocells or the radio transmitter is being
used.
Seriesofashesseparated
by a pause light
Miscellaneous Thisisthesamesignalasontheasher(seeTable19)
1 second pause
LedSTOP Cause Solution
Off Activation of the STOP input Check the devices connected to the STOP input
On Everything OK STOP Input active.
SSled Cause Solution
Off Everything OK SS input not active
On SS input activation Normal if the device connected to the SS input is active
Solution
OPENled Cause
Off Everything OK OPEN input not active
On OPEN input activation Normal if the device connected to the OPEN input is active
CLOSEled Cause Solution
Off Everything OK CLOSE input not active
On CLOSE input tripped Normal if the device connected to the CLOSE input is active
STOPled Cause Solution
Off STOP input Check the devices connected to the STOP input
On Everything OK STOP Input active
