English – 13

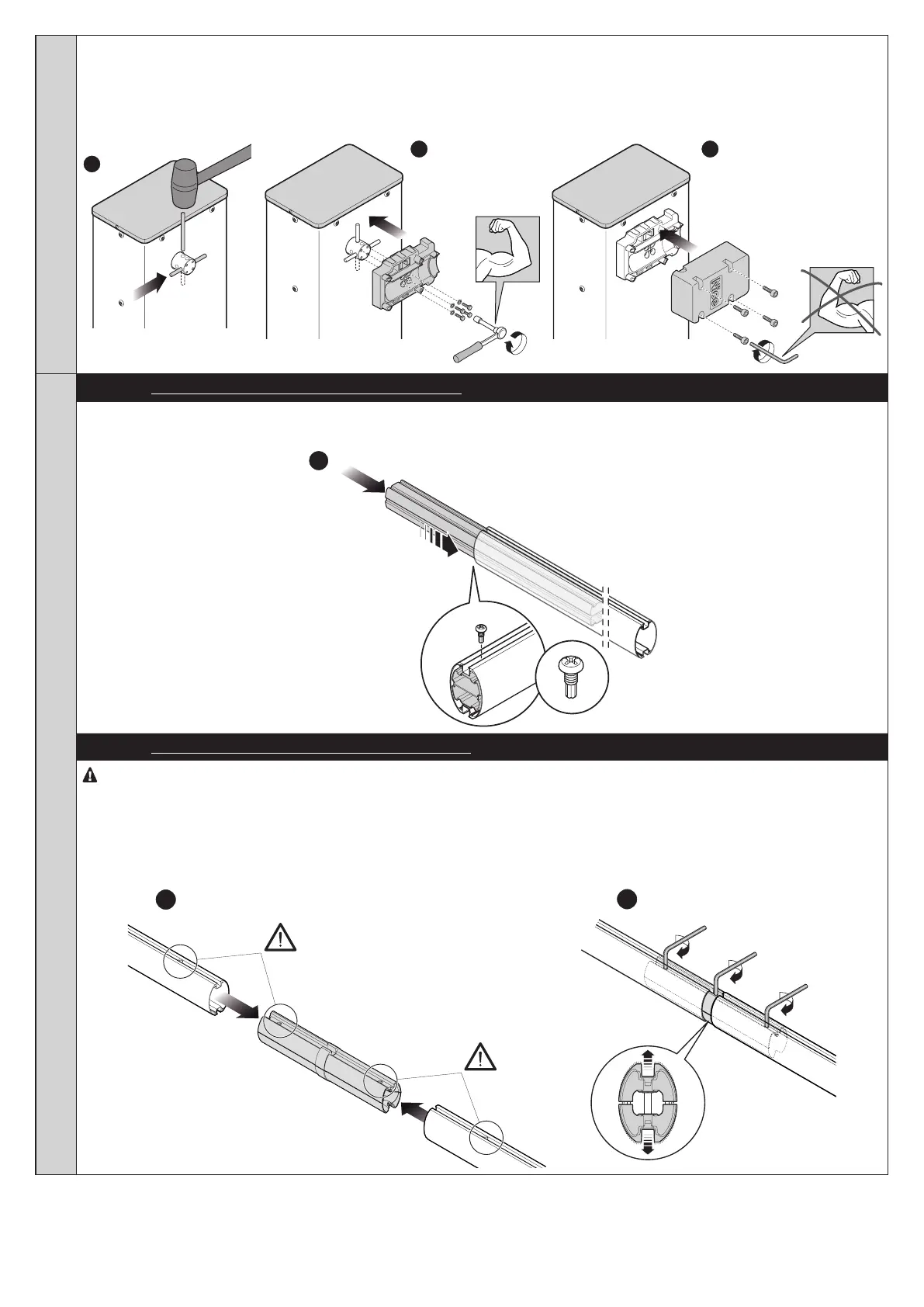

08. Installation of the boom and accessories:
a - insert the two pins in their correct positions (on the motor shaft)
b - position the support on the drive shaft into a “vertical boom” position and secure it with the specic screws and open grover wash-
ers, screwing with force
c - place the cover of the boom and secure it partially with the 6 screws
a
09.
Assembly BOOM CONSISTING OF 1 PIECE (whole or cut):
ONLY for WIDE L, start the assembly from this point:
a - insert them into the free end of the boom (if necessary use a rubber mallet) and continue with step '10'
Assembly BOOM CONSISTING OF 2 PIECES (whole or cut):
CAUTION - With booms consisting of two pieces, you must secure the shorter piece of the boom to the aluminium
support.
ONLY for WIDE L, start the assembly from this point:
a - insert the universal joint into the free ends of the two booms. Important: pay attention to the orientation of the joint, because the
screw heads must be on the same side as the holes on the booms
b - unscrew the 3 screws in equal measure to expand the joint inside the booms and continue with step '10'
b
a
