NICEDAY CT11 - Assembly Instructions: Locking and Caps; Step 3: Locking the Vertical Tube; Step 4: Attaching Decorative Cap

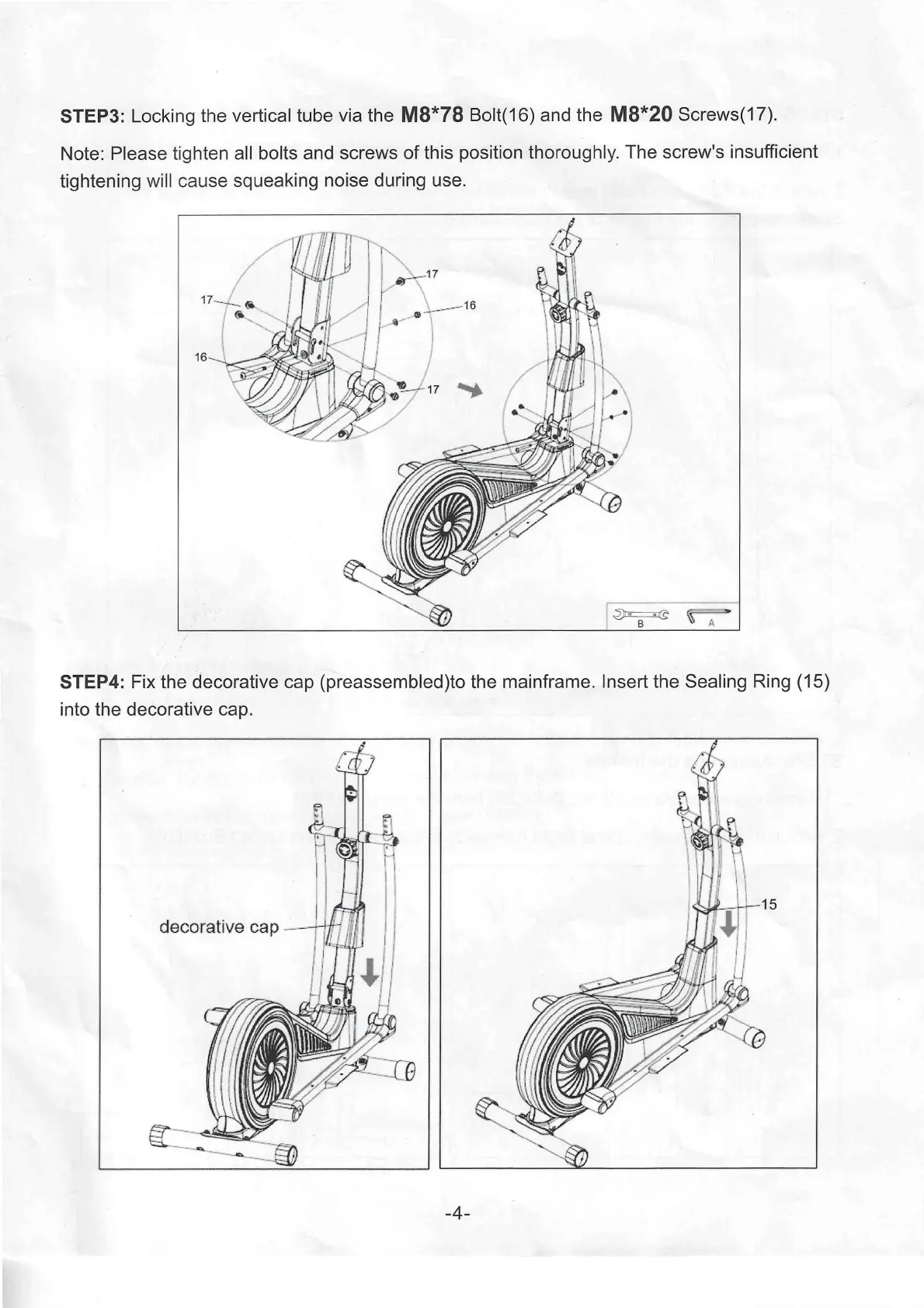

STEP3: Locking the vertical tube via the M8*78 Bolt(16) and the M8*20 Screws(17).
Note: Please tighten all bolts and screws of this position thoroughly. The screw's insufficient
tightening will cause squeaking noise during use.
17
6
#
16
+ + + ==L
STEP4: Fix the decorative cap (preassembled)to the mainframe. Insert the Sealing Ring (15)
into the decorative cap.
decorative cap –
-4-
