Nicepower SPS3010D - Panel Instruction; Front Panel Overview; Rear Panel Overview

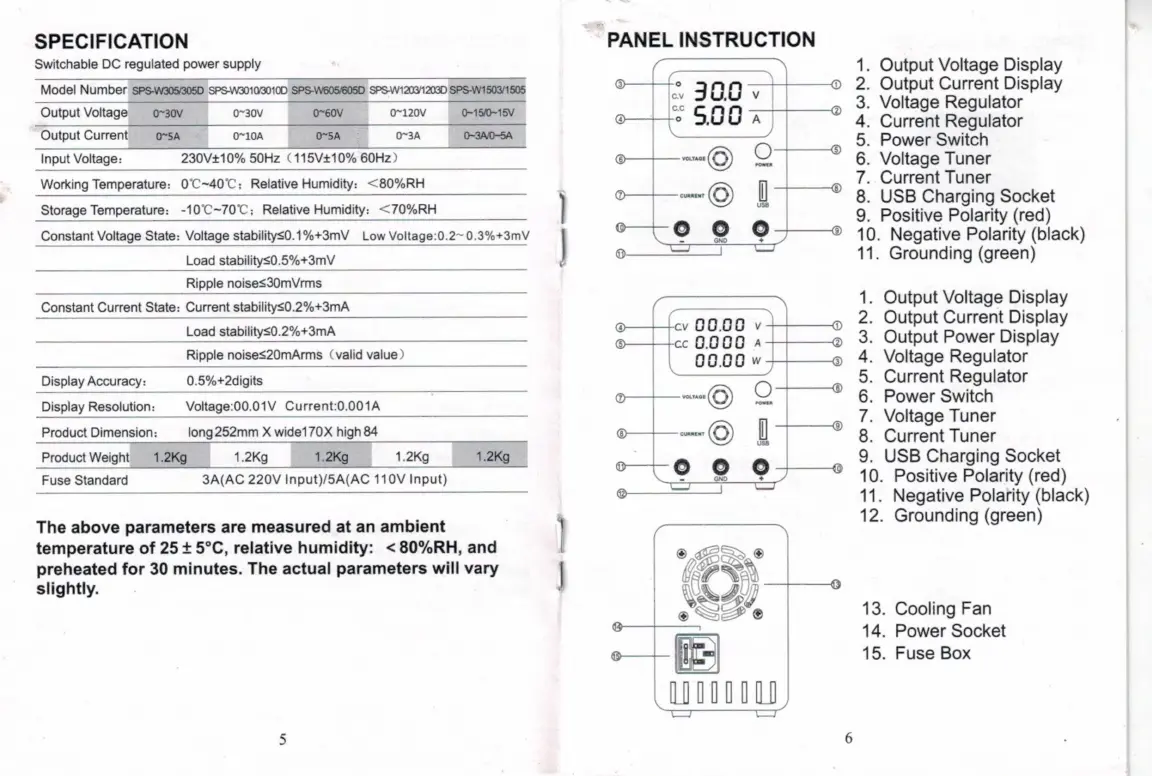

SPECIFICATION
Switchable DC regulated power supply
Model Number SPS-W305/305D SPS-W3010/3010D SPS-W605/605D SPS-W1203/1203D SPS-W1503/1505
Output Voltage o-30V —So*30V Or60v 0~120V 0~15/0~15V
Output Current O~SA 0~10A O~SA O~3A 0~3A/0~5A
Input Voltage: 230V+10% 50Hz (115V+10% 60HZ)
Working Temperature: 0°C~40°C; Relative Humidity: <80%RH
Storage Temperature: -10°C~70°C; Relative Humidity: <70%RH
Constant Voltage State: Voltage stabilitys0.1%+3mV Low Voltage:0.2~0.3%+3mV
Load stabilitys0.5%+3mV
Ripple noises30mVrms
Constant Current State: Current stabilitys0.2%+3mA
Load stabilitys0.2%+3mA
Ripple noises20mArms (valid value)
Display Accuracy: 0.5%+2digits
Display Resolution: Voltage:00.01V Current:0.001A
Product Dimension: long 252mm X wide170X high 84
Product Weight 1.2Kg 12Kg | aeKG@ #4 1.2Kg | qeKg
Fuse Standard 3A(AC 220V Input)/5A(AC 110V Input)
The above parameters are measured at an ambient
temperature of 25+ 5°C, relative humidity: <80%RH, and
preheated for 30 minutes. The actual parameters will vary
slightly.
PANEL INSTRUCTION
1. Output Voltage Display
2. Output Current Display
3. Voltage Regulator
4. Current Regulator
5. Power Switch
6. Voltage Tuner
7. Current Tuner
8. USB Charging Socket
9. Positive Polarity (red)
10. Negative Polarity (black)
11. Grounding (green)
. Output Voltage Display
. Output Current Display
. Output Power Display
Voltage Regulator
Current Regulator
. Power Switch
. Voltage Tuner
. Current Tuner
USB Charging Socket
10. Positive Polarity (red)
11. Negative Polarity (black)
12. Grounding (green)
OMDNOOARWN=
13. Cooling Fan
14. Power Socket
15. Fuse Box
