3.4 Installing the drive

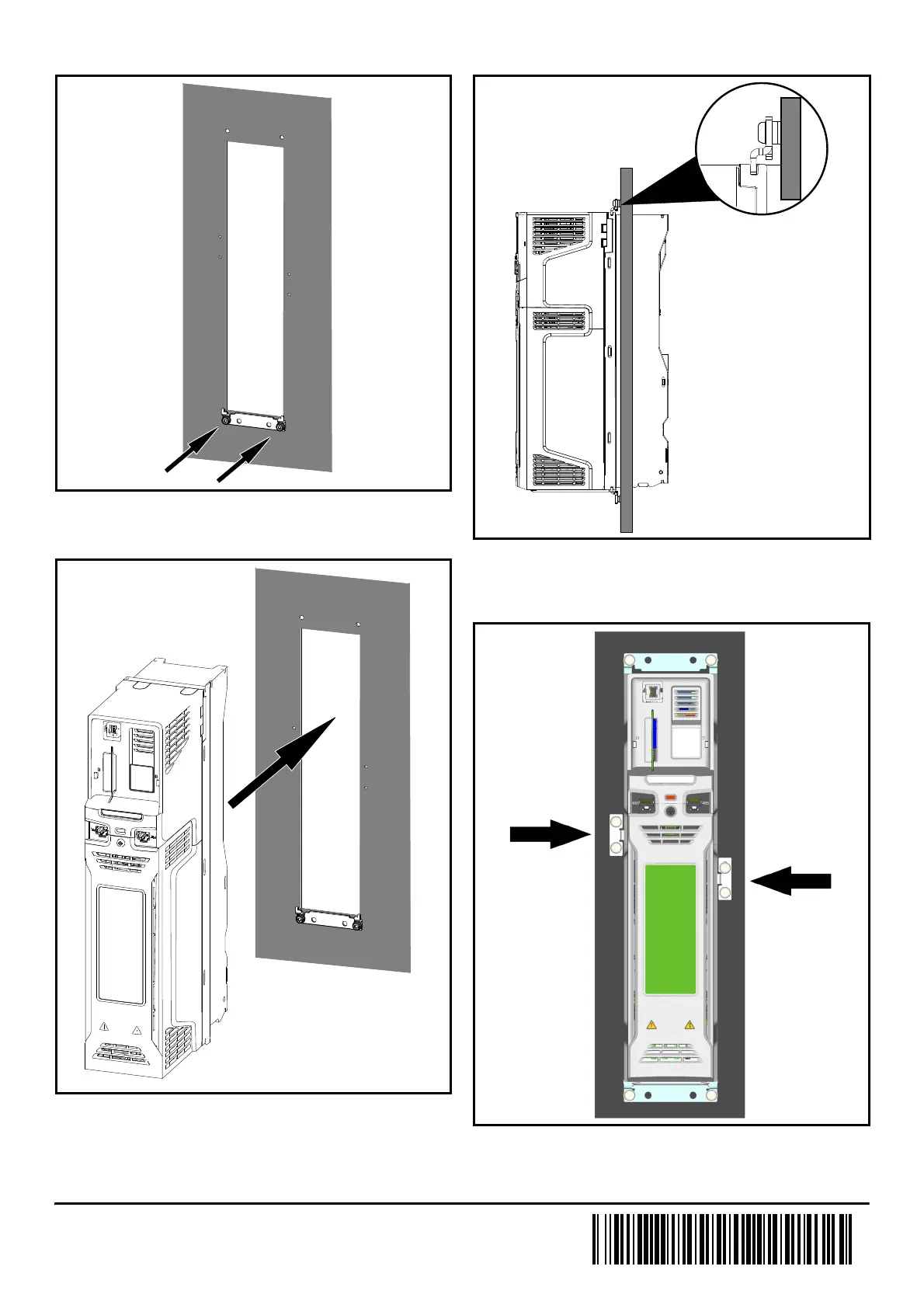

Figure 3-4 Installing the lower mounting bracket
Loosely secure the lower mounting bracket to the mounting plate using
suitable M5 fasteners as shown in Figure 3-4.
Figure 3-5 Inserting the drive through the backplate and securing
to the backplate
Insert the drive through the cut-out in the mounting plate and engage the
drive chassis mounting slots on the lower mounting bracket ensuring
that the drive is supported at all times until secured firmly.
Figure 3-6 Securing the upper mounting bracket
Locate the upper mounting bracket into the drive chassis upper
mounting slots and secure the drive to the mounting bracket using
suitable M5 fasteners. Make sure the M5 fasteners are fully secured at
the top and bottom of the mounting plate before proceeding further.
Figure 3-7 Installing the through panel mounting brackets
Install the through panel securing brackets (x2) into the drive chassis,
and secure them to the backplate using suitable M5 fasteners. Check to
be sure that the gasket has not become trapped under the mounting
brackets before fully tightening the M5 fasteners.
