12 SI-Ethernet User Guide
Issue: 3
3 Mechanical installation

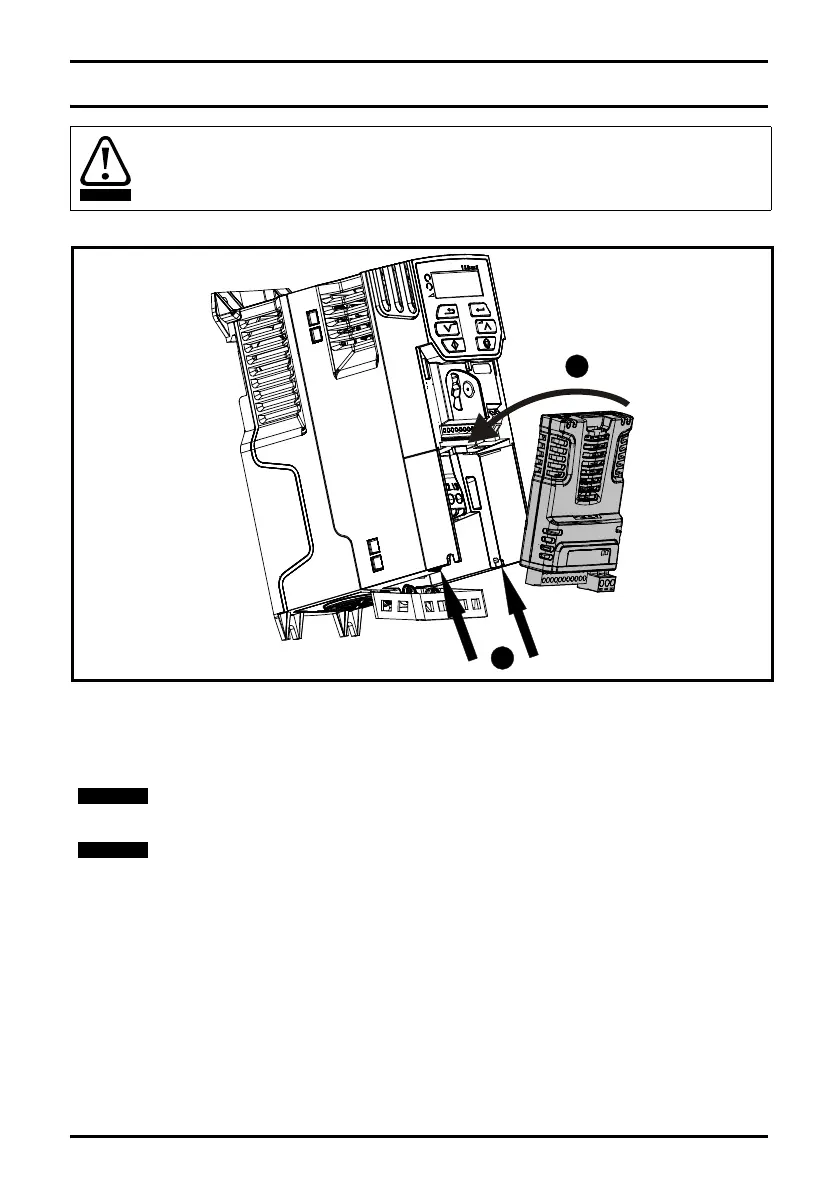

Figure 3-1 Installation of an SI option module on Unidrive M200 to M400 (sizes 2 to 4)
With the option module tilted slightly backwards, align and locate the two holes in the rear of the
option module onto the two tabs (1) on the drive.
Place the option module onto the drive as shown in (2) until the module clicks into place. The
terminal cover on the drive holds the option module in place, so this must be put back on.
Before installing or removing an option module from any drive, ensure the AC supply has
been disconnected for at least 10 minutes and refer to Chapter 1 Safety information on
page 6. If using a DC bus supply ensure this is fully discharged before working on any
drive or option module.
WARNING
1
2
Option modules can only be installed on drives that have the option module slot
functionality.
Figure 3-1 above is for illustration only, the actual option module may be different to the
one shown.
NOTE
NOTE
