TM Series
Operating & Safety Instructions
English/USA – 01/10
Issue 06
25

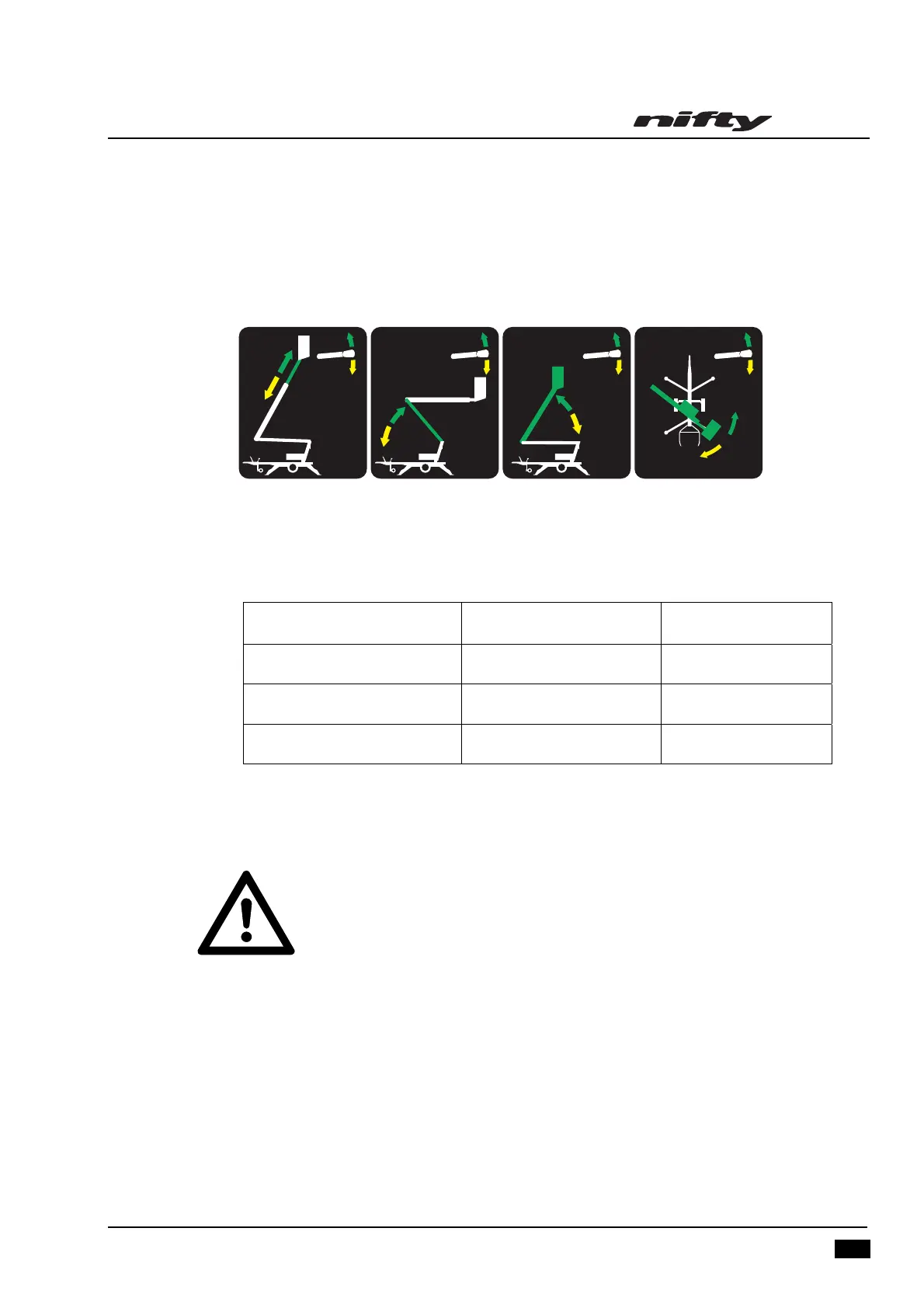

4.3.2 BOOM FUNCTIONS
1) Push and hold green power button.
1 2 3 4
2) Select lever 1, 2, 3 or 4 for desired boom function.
1 Operates Telescope UP for out
DOWN for in.
**
2 Operates Lower Boom UP for up DOWN for down
3 Operates Upper Boom UP for up DOWN for down
4 Operates Swing UP for right DOWN for left
** (If applicable, Ground control of telescoping is optional).
ALWAYS ENSURE THE AERIAL PLATFORM IS ON A FIRM SURFACE AND THE
AREA IS FREE OF ANY OVERHEAD OBSTRUCTIONS.
ENGAGING THE RED EMERGENCY STOP BUTTON WILL SHUT DOWN THE
ENGINE AND THE ELECTRIC CIRCUIT PREVENTING OPERATION OF ANY
FUNCTION.
P14928/001
