TM Series
Operating & Safety Instructions
English/USA – 01/10
Issue 06
27
EMERGENCY PROCEDURES
1) Push in red emergency stop to shut down all functions.
2) Use emergency hand pump to provide motive power and manoeuvre the machine as normal
using the hand levers (Platform or Base).

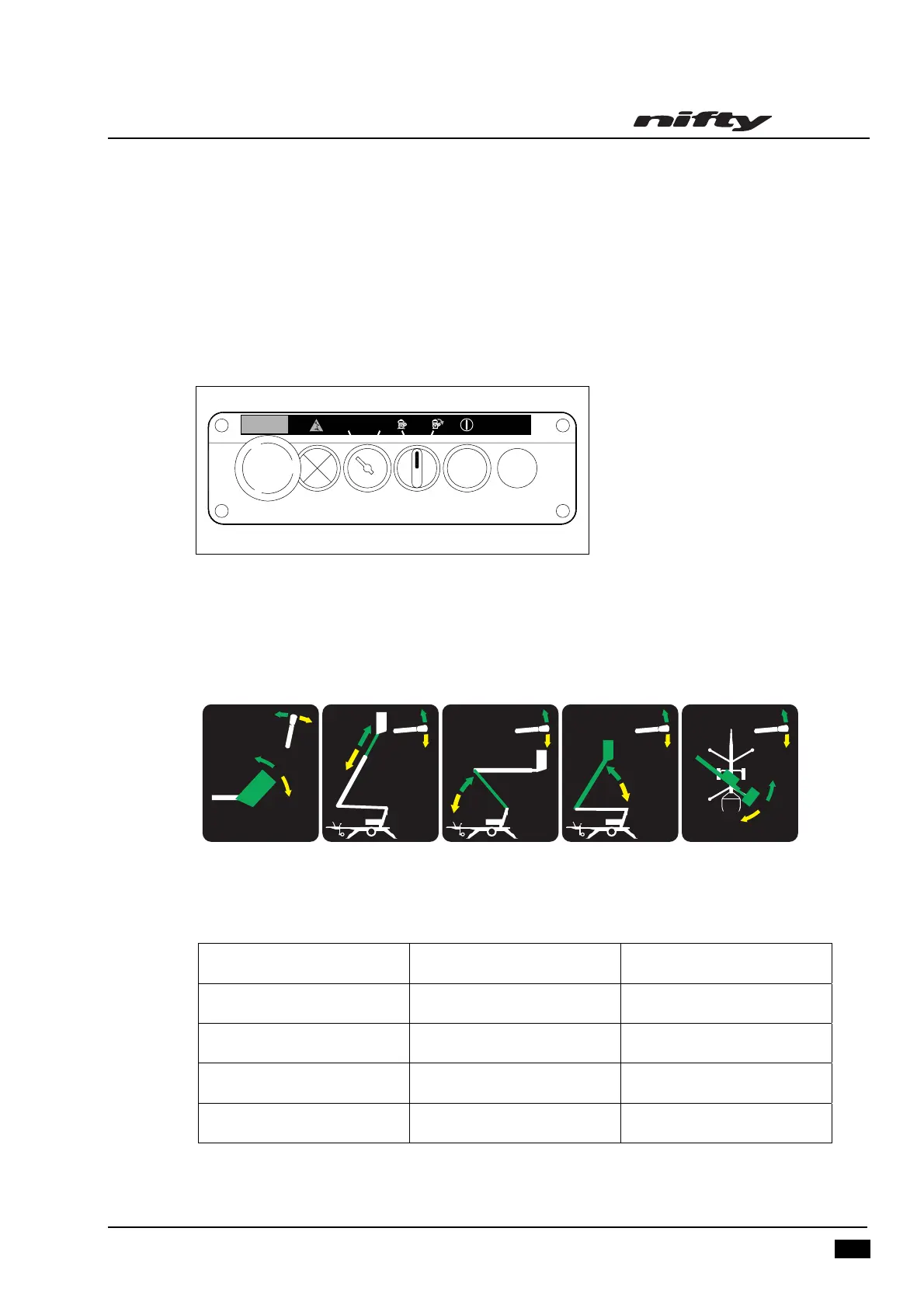

PLATFORM CONTROL STATION
(BI-ENERGY MODEL)
4.4.2 BOOM FUNCTIONS
1) Push and hold green "Power Control" button
1 2 3 4 5
2) Select lever 1, 2, 3, 4 or 5 for desired function
1 Operates Platform Lev. FWD for forward BACK for back
2 Operates Telescope UP for out DOWN for in.
3 Operates Lower Boom UP for up DOWN for down
4 Operates Upper Boom UP for up DOWN for down
5 Operates Swing UP for right DOWN for left
P15924/01
0I
P14927/001
