Nikko Gamma I - Parts Location

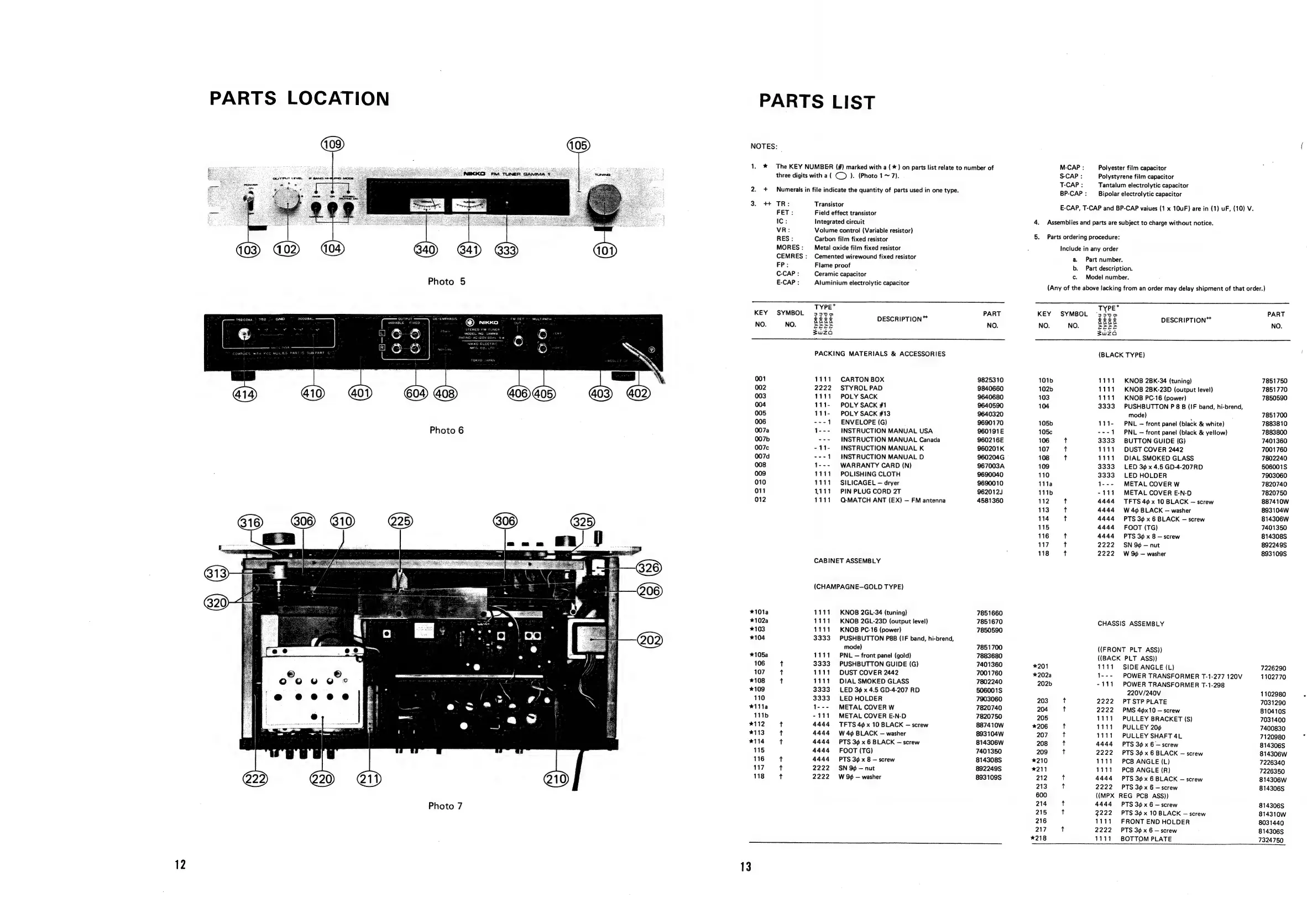

PARTS LOCATION
j —w—vvamenemawnnmacannines AN Ti” PNA
COMPUIES with ۤ CC MULES PART 15 SUBPART C
' i ~
|
414)
12
41 GO G04) G08
Photo 5
OUTPUT =e” OE-EMPHASIS. pa
ARIABLE FIXED : ® niko
STEREO FM TUNER
MODEL MO. GAMMA
RATING: AC 120¥ 6Or7 'F
256
NIKKO ELE we
MEG. CO. LTO
TOKYO cAPAN
Photo 6
Photo 7
13
PARTS
LIST
NOTES: .
three digits with a( C_ ). (Photo 1~ 7). .
* = The KEY NUMBER (#) marked with a ( * ) on parts list relate to number of
13
2. + Numerals in file indicate the quantity of parts used in one type.
3. ++ TR: Transistor
FET: Field effect transistor
IC: Integrated circuit
VR: Volume control (Variable resistor)
RES : Carbon film fixed resistor
MORES: Metal oxide film fixed resistor
CEMRES : Cemented wirewound fixed resistor
FP: Fiame proof
C-CAP : Ceramic capacitor
E-CAP : Aluminium electrolytic capacitor
TYPE*
KEY SYMBOL 35300 PART
dood DESCRIPTION *
NO. NO. 2Ezz NO.
SwZa
PACKING MATERIALS & ACCESSORIES
001 1111 CARTON BOX 9825310
002 2222 STYROL PAD 9840660
003 1111 POLY SACK 9640680
004 111- POLY SACK #1 9640590
005 111- POLY SACK #13 9640320
006 ---1 ENVELOPE (G) 9690170
007a 1--- INSTRUCTION MANUAL USA 960191E
007b --- INSTRUCTION MANUAL Canada 960216E
007c -11- INSTRUCTION MANUAL K 960201K
007d ---1 INSTRUCTION MANUAL D 960204G
008 1--- WARRANTY CARD (N) 967003A
009 1111 POLISHING CLOTH 9690040
010 1111 SILICAGEL — dryer 9690010
011 1111 PIN PLUG CORD 2T 962012J
012 1111 OMATCH ANT (EX) — FM antenna 4581360
CABINET ASSEMBLY
(CHAMPAGNE-—GOLD TYPE)
*101a 1111 KNOB 2GL-34 (tuning) 7851660
*102a 1111 KNOB 2GL-23D (output level) 7851670
*103 1111 KNOB PC-16 (power) 7850590
*104 3333 PUSHBUTTON P8B (IF band, hi-brend,
mode) 7851700
*105a 1111 PNL — front panel (gold) 7883680
106 t 3333 PUSHBUTTON GUIDE (G) 7401360
107 t 1111 DUST COVER 2442 7001760
*108 t 1111 DIAL SMOKED GLASS 7802240
* 109 3333 LED 3¢ x 4.5 GD-4-207 RD 506001S
110 3333 LED HOLDER 7903060
*il1la 1--- METAL COVER W 7820740
111b -111 METAL COVER E-N-D 7820750
*112 t 4444 TFTS 4¢x 10 BLACK — screw 887410W
*113 t 4444 W4¢ BLACK — washer 893104W
*114 58 4444 PTS 3¢x 6 BLACK — screw 814306W
115 4444 FOOT (TG) 7401350
116 t 4444 PTS 3¢~x 8 — screw 814308S
117 t 2222 SN9¢—nut 892249S
118 t 2222 W9¢— washer 893109S
5. Parts ordering procedure:
M-CAP :
S-CAP :
T-CAP :
BP-CAP :
E-CAP, T-CAP and BP-CAP vaiues (1 x 10uF) are in (1) uF, (10) V.
Include in any order
Part number.
Polyester film capacitor
Polystyrene film capacitor
Tantalum electrolytic capacitor
Bipolar electrolytic capacitor
4. Assemblies and parts are subject to charge without notice.
b. Part description.
c.
Model number.
(Any of the above lacking from an order may delay shipment of that order.)
TYPE*
Sa Cee xe DESCRIPTION™ ae
NO. NO. SSS NO.
2wza
(BLACK TYPE)
101b 1111 KNOB 2BK-34 (tuning) 7851750
102b 1111 KNOB 2BK-23D (output level) 7851770
103 1111 KNOB PC-16 (power) 7850590
104 3333 PUSHBUTTON P8 B (IF band, hi-brend,
mode) 7851700
105b 111- | PNL — front panel (black & white) 7883810
105c ---1 PNL — front panel (black & yellow) 7883800
106 t 3333 BUTTON GUIDE (G) 7401360
107 t 1111 DUST COVER 2442 7001760
108 t 1111 DIAL SMOKED GLASS 7802240
109 3333 LED 3¢x 4.5 GD-4-207RD 506001S
110 3333 LED HOLDER 7903060
111a 1--- METAL COVER W 7820740
111b -111 METAL COVER E-N-D 7820750
112 t 4444 TFTS4¢x 10 BLACK — screw 887410W
113 t 4444 W4¢ BLACK — washer 893104W
114 t 4444 PTS 3¢ x 6 BLACK — screw 814306W
115
4444
FOOT
(TG)
7401350
116 t 4444 PTS 3¢x 8 — screw 814308S
117 t 2222 SN 9¢ — nut 892249S
118 t 2222 W 9d — washer 893109S
CHASSIS ASSEMBLY
((FRONT PLT ASS))
((BACK PLT ASS))
*201 1111 SIDE ANGLE (L) 7226290
*202a 1--- POWER TRANSFORMER T-1-277 120V 1102770
202b -111 POWER TRANSFORMER T-1-298
220V/240V 1102980
203
t
2222
PTSTPPLATE
7031290
204
t
2222
PMS
44x10
—
screw
810410S
205
1111
PULLEY
BRACKET
(S)
7031400
* 206 t 1111 PULLEY 20¢ 7400830
207
t
1111
PULLEY
SHAFT
4L
7120980
208
t
4444
PTS
3¢x
6
—
screw
814306S
209 t 2222 PTS 3¢x 6 BLACK — screw 814306W
*210
1111
PCB
ANGLE
(L)
7226340
*211 1111 PCB ANGLE (R) 7226350
212
t
4444
PTS
3¢x
6
BLACK
—
screw
814306W
213
t
2222
PTS
3¢x
6
—
screw
814306S
600 ((MPX REG PCB ASS))
214
t
4444
PTS
36x
6
—screw
814306S
215
t
2222
PTS
3¢x
10
BLACK
—
screw
814310W
216
1111
FRONT
END
HOLDER
8031440
217
t
2222
PTS
3¢x
6
—screw
814306S
*218
1111
BOTTOM
PLATE
7324750
