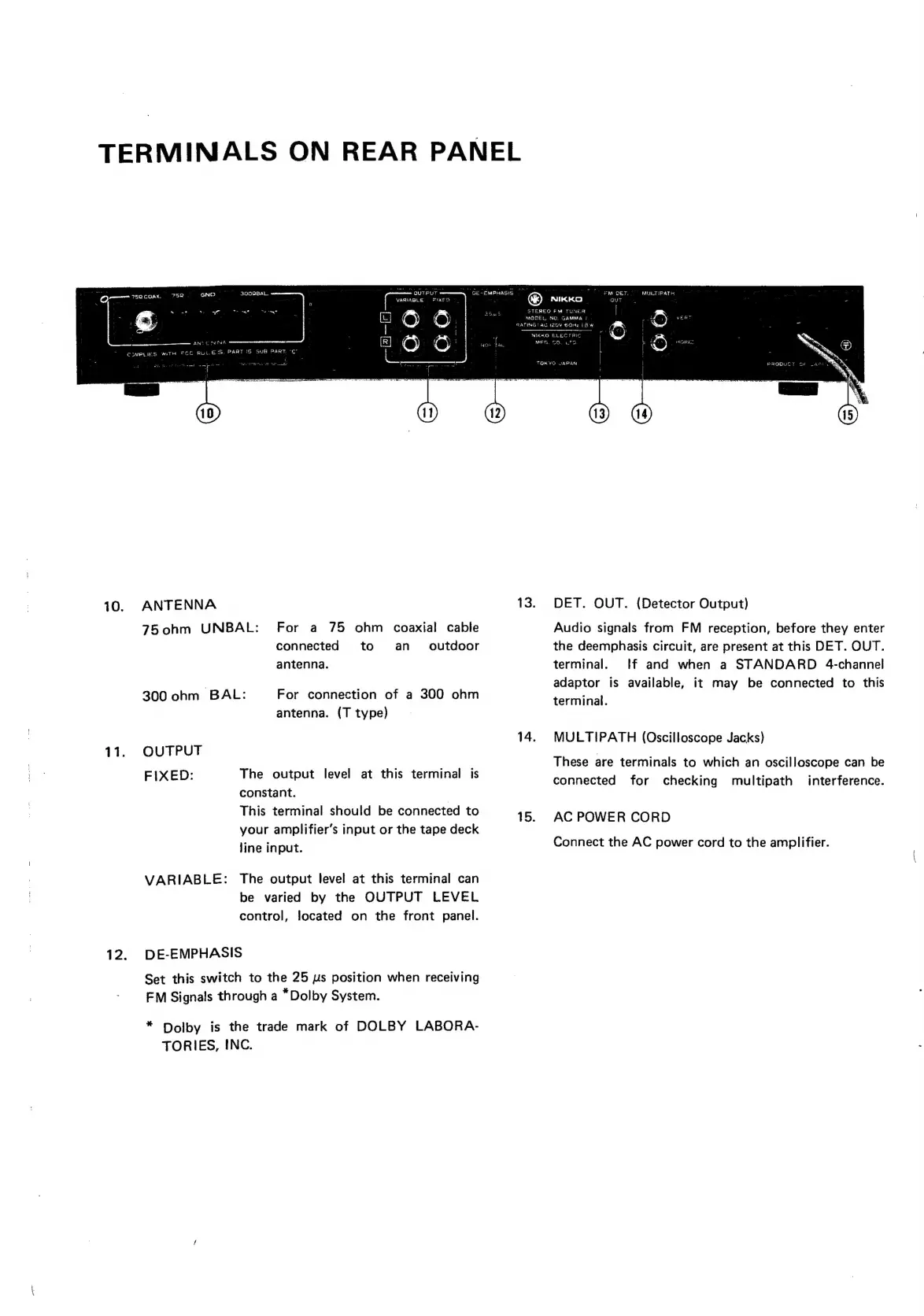

TERMINALS ON REAR PANEL
GE-EMPHASIS “ "en pet. MULTIPATH
NIKKO ouT
STEREO FM TUNER
NE,
MOSEL NO. GAMMA |
G 21a
10. ANTENNA 13. DET. OUT. (Detector Output)
75 ohm UNBAL: For a 75 ohm coaxial cable Audio signals from FM reception, before they enter
connected to an_ outdoor the deemphasis circuit, are present at this DET. OUT.
antenna. terminal. If and when a STANDARD 4-channel
adaptor is available, it may be connected to this
300 ohm BAL: For connection of a 300 ohm
antenna. (T type)
terminal.
14. MULTIPATH (Oscilloscope Jacks)
11. OUTPUT
FIXED:
The
output
level
at
this
terminal
is
constant. |
This terminal should be connected to 15. AC POWER CORD
your amplifier’s input or the tape deck
line input. Connect the AC power cord to the amplifier.
These are terminals to which an oscilloscope can be
connected for checking multipath interference.
VARIABLE: The output level at this terminal can
be varied by the OUTPUT LEVEL
control, located on the front panel.
12. DE-EMPHASIS
Set
this
switch
to
the
25
us
position
when
receiving
FM Signals through a “Dolby System.
* Dolby is the trade mark of DOLBY LABORA-
TORIES, INC.
