Nikon 1 AW1 Quick Start Guide

Before using the waterproof Nikon 1 AW1 and its attached waterproof lens, do a quick
waterproof integrity test by placing the camera in a basin of water and looking for any escaping
air bubbles. After the camera is removed from the water, dry it off and check for leaks.

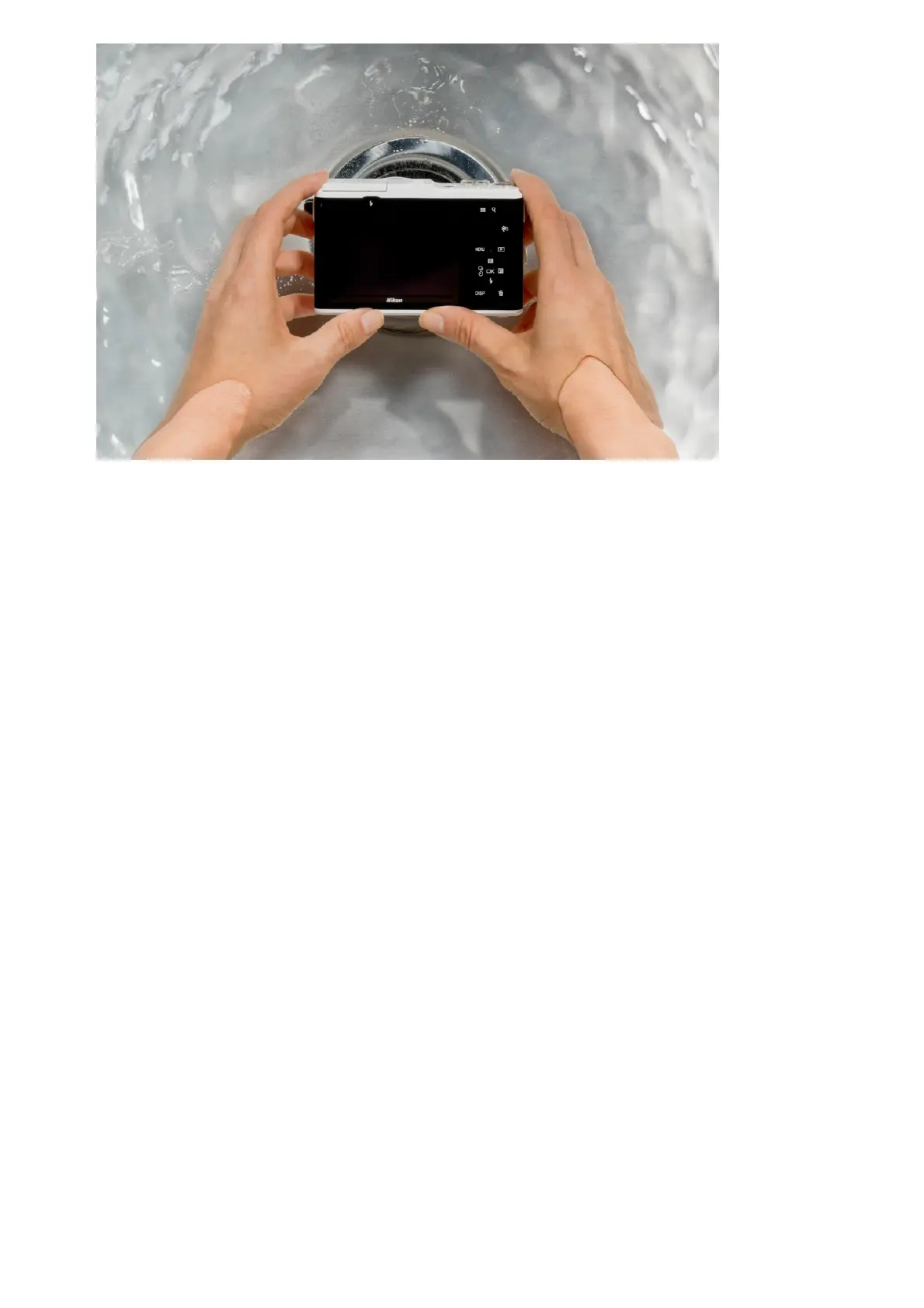

As a final check, immerse the camera with its waterproof lens attached in a sink or
basin of water to make sure that you don’t see leaks. Turn the camera on and test
the zoom ring and camera controls. Air may escape from the pressure-
equalization vent and microphone and speaker covers, and that’s normal.
If however, you see air escaping from the lens mount or the connector and battery-
chamber/media card slot covers, immediately remove the camera from the water
and dry it thoroughly. Check to see that the O-ring and connector and battery
chamber/media card slot covers are properly sealed. If you find the camera to be
leaking during normal use, consult a Nikon-authorized service center.
If the camera passes the water submersion test, you’re ready to take it shooting
under the sea or in a pool.
After Use

Nikon 1 AW1 Specifications

General

Sensor Type	CMOS
Effective Pixels	14.2 million
ISO Sensitivity	160-6400
Lens Mount	Nikon 1 mount
Autofocus System	Hybrid AF (phase-detection/contrast-detect AF)
Display Size	3.0 inches
Camera Type	Mirrorless
Screen Type	TFT LCD
Built-in Flash	Yes
GPS	No
Wi-Fi	No
Dimensions	113.3 x 71.5 x 37.5 mm
Sensor Size	13.2 x 8.8 mm
Continuous Shooting Speed	15 fps
Video Recording	1080/30p
Waterproof	Yes (15m)
Shockproof	Yes (2m)
Freezeproof	Yes (-10°C)
Battery Life	Approx. 220 shots
Image Stabilization	Lens-based
Shutter Speed	1/16000 to 30 s
LCD Screen	921, 000 dots
