- A12 ・ AF-S 28-300mm f/3.5-5.6G ED VR -

JAA80851-R.3811.A

#96 (A-D)

#119

#96 (A-D)

B2045

May.10.2012

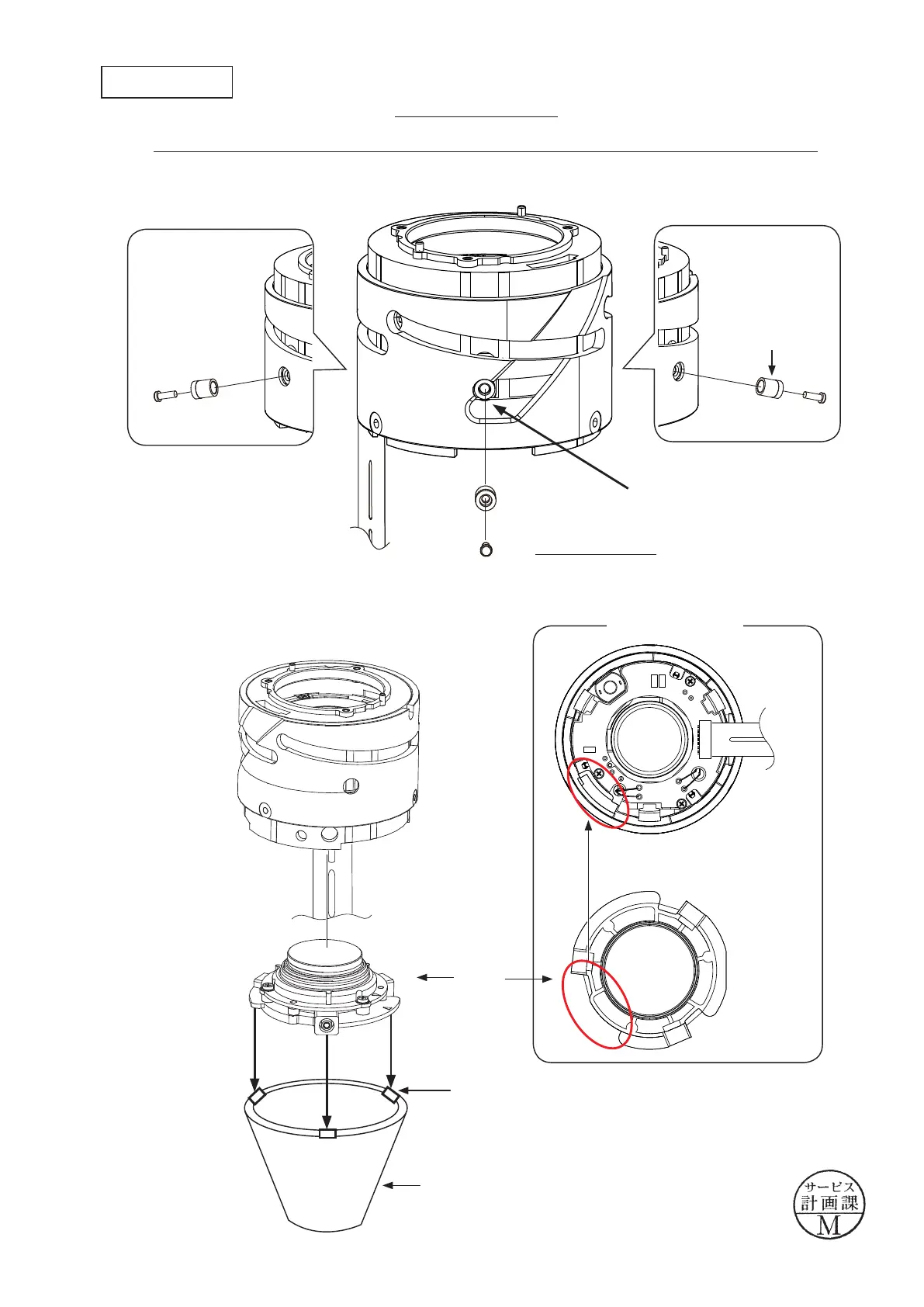

• Attach the three rollers (#96: A-D) and three screws (#119).

• Tighten the three screws (#119) with the torque driver (J15420).

Select the appropriate roller (#96) depending on the inner circumferential groove width of the cam

ring (#24). (ref. page D2)

• Mount the 3rd lens-G unit (B2045) by attaching it to the self-made tool (using a lid of a glass pump

container, etc).

Mountbyttinginthefan-like

hole.

3rd lens-G unit

Attach the roller at the position of

this illustration.

Stepped side

comes to the

screw.

Attach the piece of the double-stick tape each to the positions

where the 3 square sections of [B2045] are seated.

Self-made tool (using a lid of glass pump container, etc)

[Diameter: approx. 42mm]

Viewed from bottom

Changed page

△

× 2

(Torque value: 13 cN.m)

△(

Addition)

Tightening torque= 13 cN

・

△(
