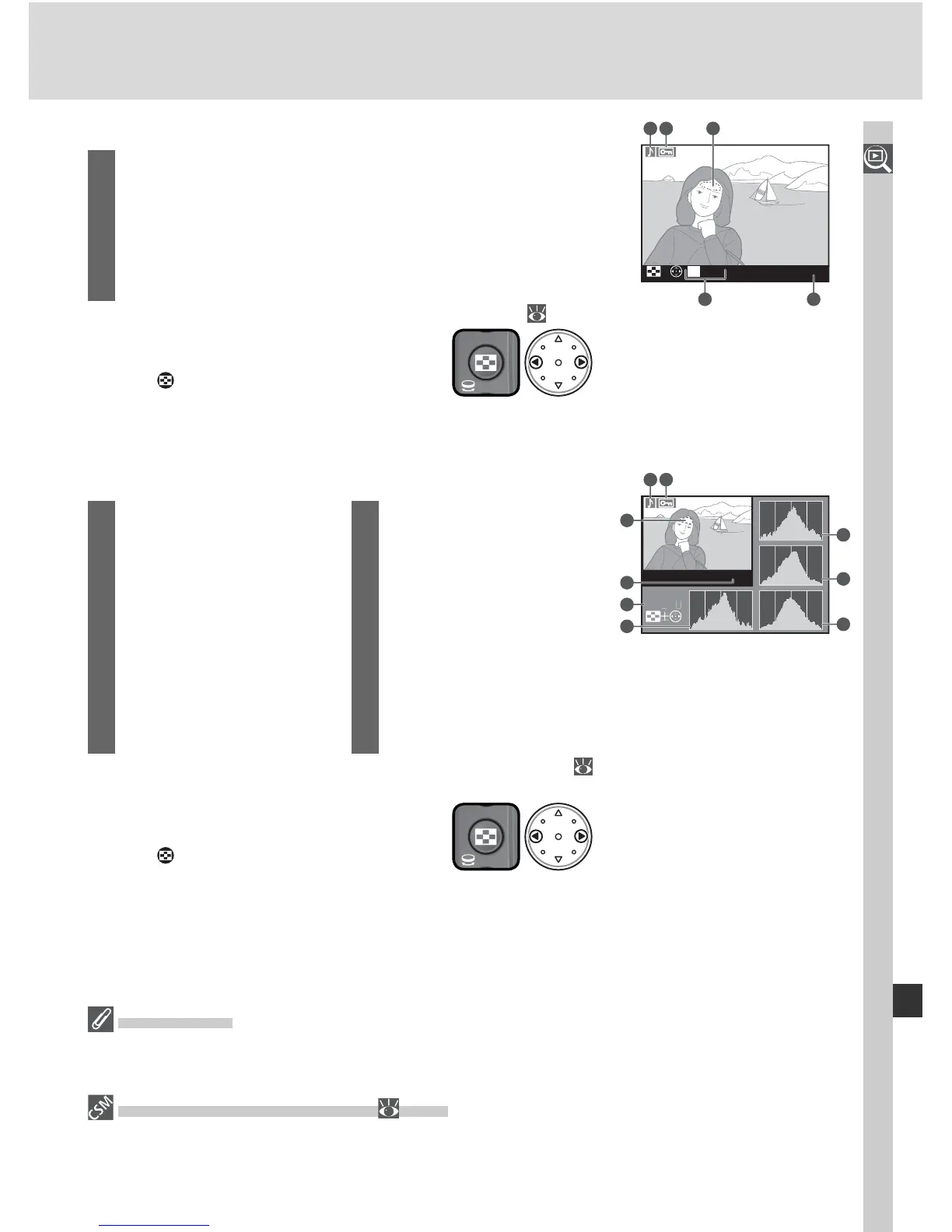

Nikon D2XS - Page 155

141
More About Playback
Page 7 (Highlights)
*
100-1
＋
RGB R G B
Highlight
54
1 2 3
1 Voice memo icon ................................................149
2 Protect status......................................................145
3 Image high lights (areas of image that may be over-
exposed) are marked by a fl ashing border
†
4 Current channel
5 Folder number/frame number
‡
............................158
* Displayed only if Highlights is selected for Display mode ( 166).
† Highlights can be displayed separately for each
color channel. Press multi selector left or right while
pressing button to cycle through channels as fol-
lows: RGB (all channels) ↔ R (red) ↔ G (green) ↔
B (blue) ↔ RGB.
‡ Displayed in yellow if photo was taken with high-speed crop on.
Histograms
Camera histograms are for use only as a guide and may differ from those displayed in
imaging applications.
f3—Photo Info/Playback ( 207)
The roles of the multi selector buttons can be reversed, so that the left and right but-
tons display other images and the up and down buttons control photo information.
Page 8 (RGB Histogram)
*
1
00
-
1
R
GB
R
G
B
＋
Highlight
1 2
8
7
4
5
6
3
9
1 Voice memo icon ...149
2 Protect status.........145
3 Image high lights (areas
of image that may be
overexposed) are marked
by a fl ashing border
†
4 Folder number/frame
number
‡
................158
5 Current channel
* Displayed only if RGB histogram is selected for Display mode (
166).
† Highlights can be displayed separately for each
color channel. Press multi selector left or right while
pressing button to cycle through channels as fol-
lows: RGB (all channels) ↔ R (red) ↔ G (green) ↔
B (blue) ↔ highlight display off ↔ RGB.
‡ Displayed in yellow if photo was taken with high-speed crop on.
6 Histogram (RGB chan-
nel). In all histograms,
horizontal axis gives
pixel brightness, vertical
axis number of pixels.
7 Histogram (red channel)
8 Histogram (green chan-
nel)
9 Histogram (blue channel)
