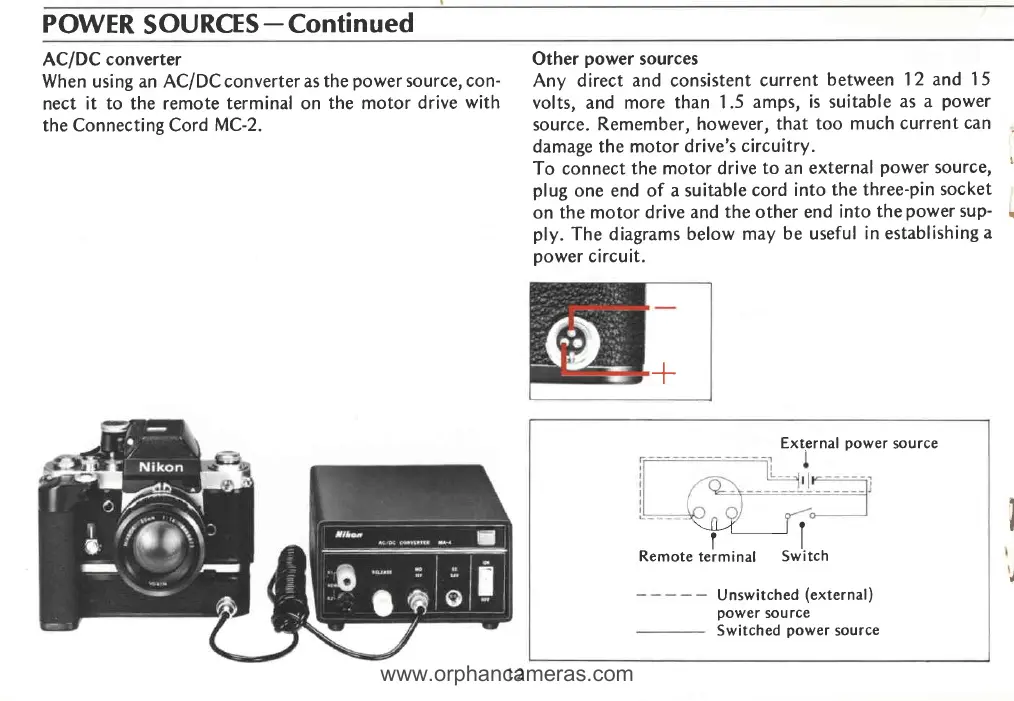

Nikon MD-3 - AC;DC Converter and Other Sources

POWER
SOURCES
-
Continued
AC/DC converter
When using an AC/DC converter
as the
power
source, con-
nect it to the remote
terminal on
the
motor
drive
with
the Connecting Cord
MC-2.
Other
power
sources
Any direct and consistent
current
between 12 and
15
volts, and more
than 1.5
amps,
is
suitable
as a
power
source.
Remember,
however,
that too much
current
can
damage the motor
drive's
circuitry.
To connect
the motor drive
to an external
power
source,
plug
one end of a suitable
cord
into
the three-pin
socket
on the motor
drive and
the other end
into
the
power
sup-
ply.
The diagrams
below may
be useful
in establishing
a
power
circuit.
External
power
source
Unswitched
(external)
power
source
Switched
power
source
\[-{
| ?
l-l
Remote
terminal
Switch
I
I
I
J
+
\
