Air exchange
In the ”Air exchange” menu it is possible to adjust 4 steps of ventilation speed (air volume). Inlet
and exhaust is to be adjusted individually at each level.
The inlet speed can be adjusted to a minimum and the exhaust can be adjusted to both a maxi-
mum and a minimum.
Use of the CTS600 panel:
- press ESC to go one step back in the menu
- press qpto move up or down in a menu or to adjust an
activated menu
- press ENTER to activate a menu
- press ENTER to confirm a menu
- press OFF to turn off the unit
- press ON to turn the unit on
The value indicates the lowest
permissible ventilation step of the
inlet ventilator
(0 – 2)
The value indicates the lowest
permissible ventilation step of the
exhaust ventilator
(1 – 2)
INLET
MIN 0
EXHAUST
MIN 1
EXHAUST
MAX 4
ENTER
SERVICE
ENTER
TEMP.
CONTROL
DEFROST
PRESET
OFF
ROOM
CONTROL
INLET
CONTROL
HEATING
SURFACE
The value indicates the highest
permissible ventilation step of the
exhaust ventilation
(3 – 4)
INLET
>1< 23%
INLET
>2< 40%
INLET
>3< 65%
EXHAUST
>1< 25%
EXHAUST
>3< 70%
EXHAUST
>4< 100%
INLET
>4< 100%
EXHAUST
>2< 45%
Here it is possible to adjust each
ventilation step in % of maximum
ventilator output.
MANUAL
OFF
AIR
EXCHANGE
.
AIR
QUALITY
DELAY
0 MIN
PWR SAVE
MODBUS
ADR 30
OFF
DATALOG
INTV 10
RESTART
OFF

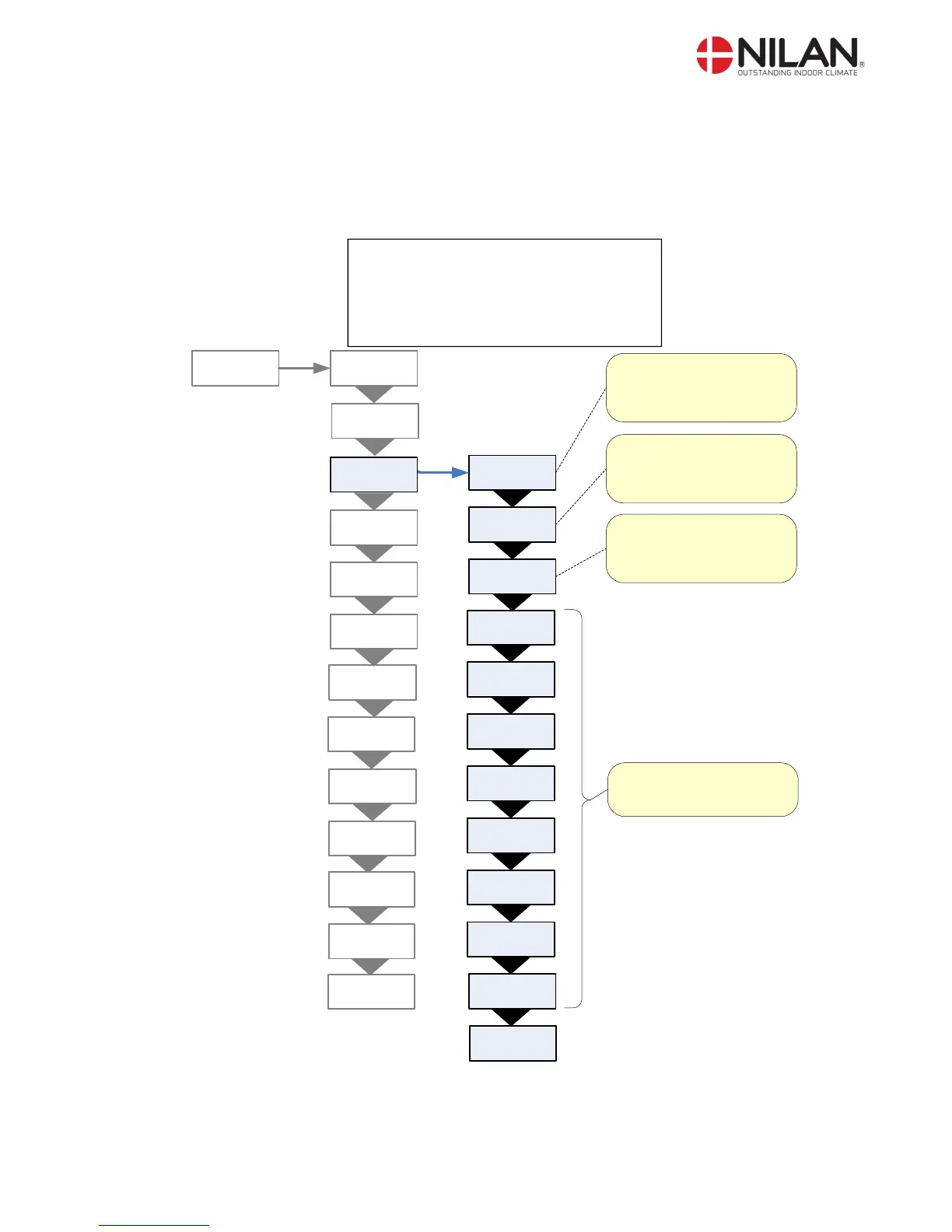

Figure 9: The "Air exchange" menu
