INSTALLATION (CONT’D)

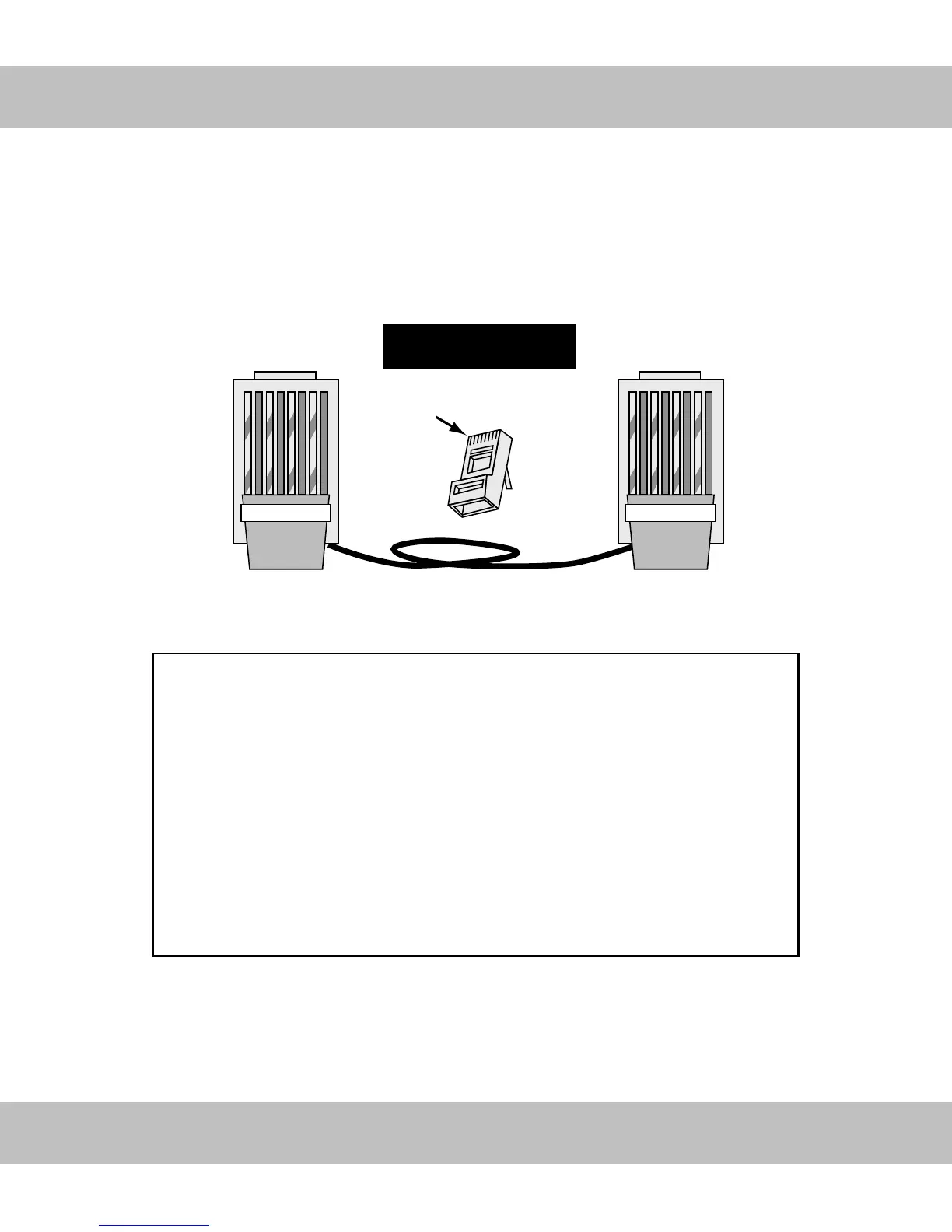

Wiring Termination Diagram

         

       





         

       



Figure 7: IntelliControl ICS RJ-45 Pinout and checklist.

Pin # Description Color Code

1 TX+ White/Green

2 TX- Green

3 RX+ White/Orange

4 IR Signal Blue

5 IR Ground White/Blue

6 RX- Orange

7 UI Power White/Brown

8 UI Ground Brown

Note: TX+ = Transmit, RX+ = Receive, UI = User Interface.

RJ-45 Plugs
