INSTALLATION (CONT’D)
Wiring
IntelliControl ICS keypads connect to the IntelliControl ICS Modular MultiZone
Receiver via CAT-5 cable. For the system to function properly all runs
of CAT-5 must be pulled in home-runs from the keypad locations to the
system head end where the IntelliControl ICS Modular MultiZone Receiver
will be located.
Note: Keypads can be connected to any available switch location.
The runs of CAT-5 must be terminated with RJ-45 connectors using the T-568A
pinout configuration as shown in Figure 7.

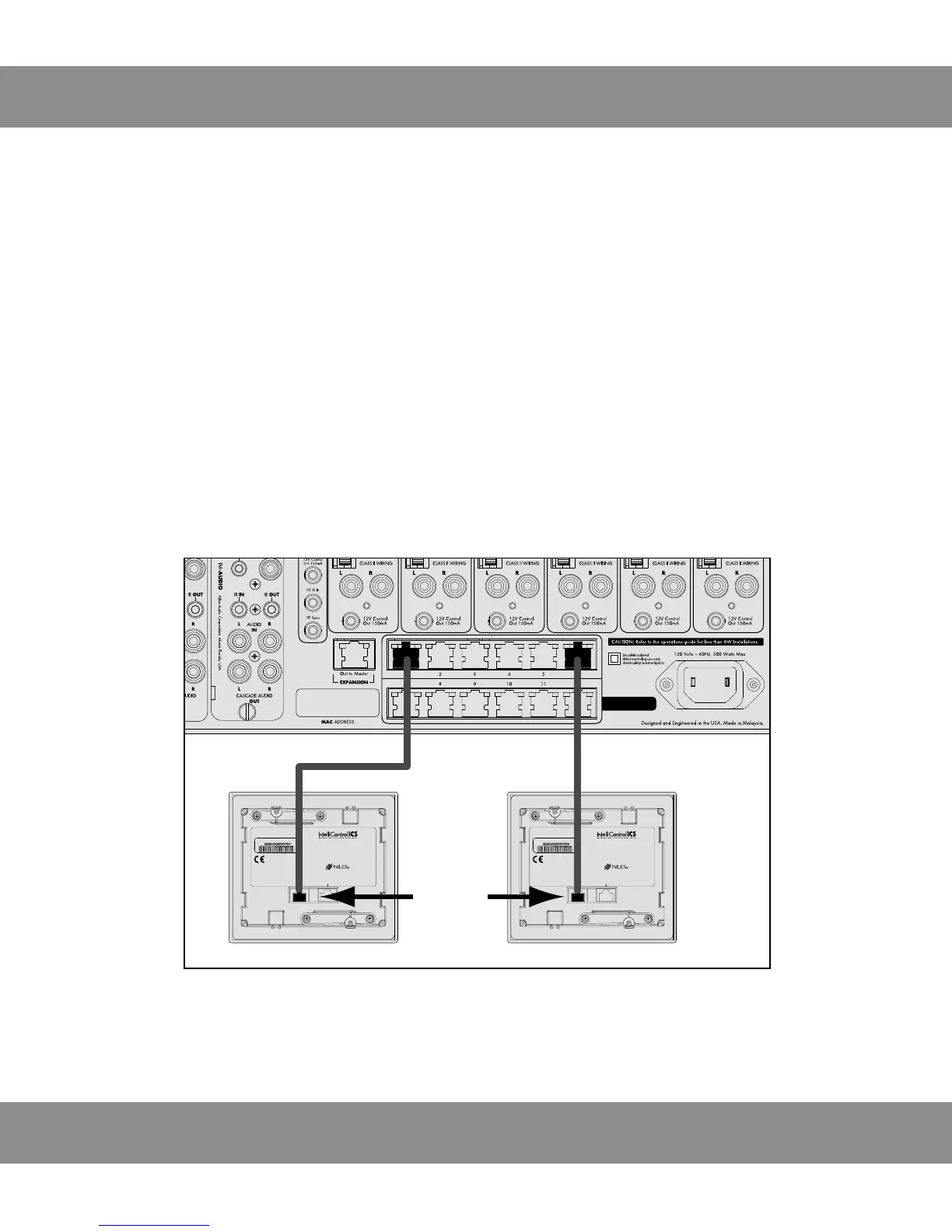

Figure 8: Display connecting to the Communication and Control Switch.
