Niles IntelliControl ICS Quick Install Guide

14
INSTALLATION (CONT’D)
Adding an IR Sensor
To add an IR sensor to a keypad, use the wiring diagrams and connector
detail that follow to adapt an RJ-45 connector from a keypad to the plug-in
wire terminals on the IR sensor.










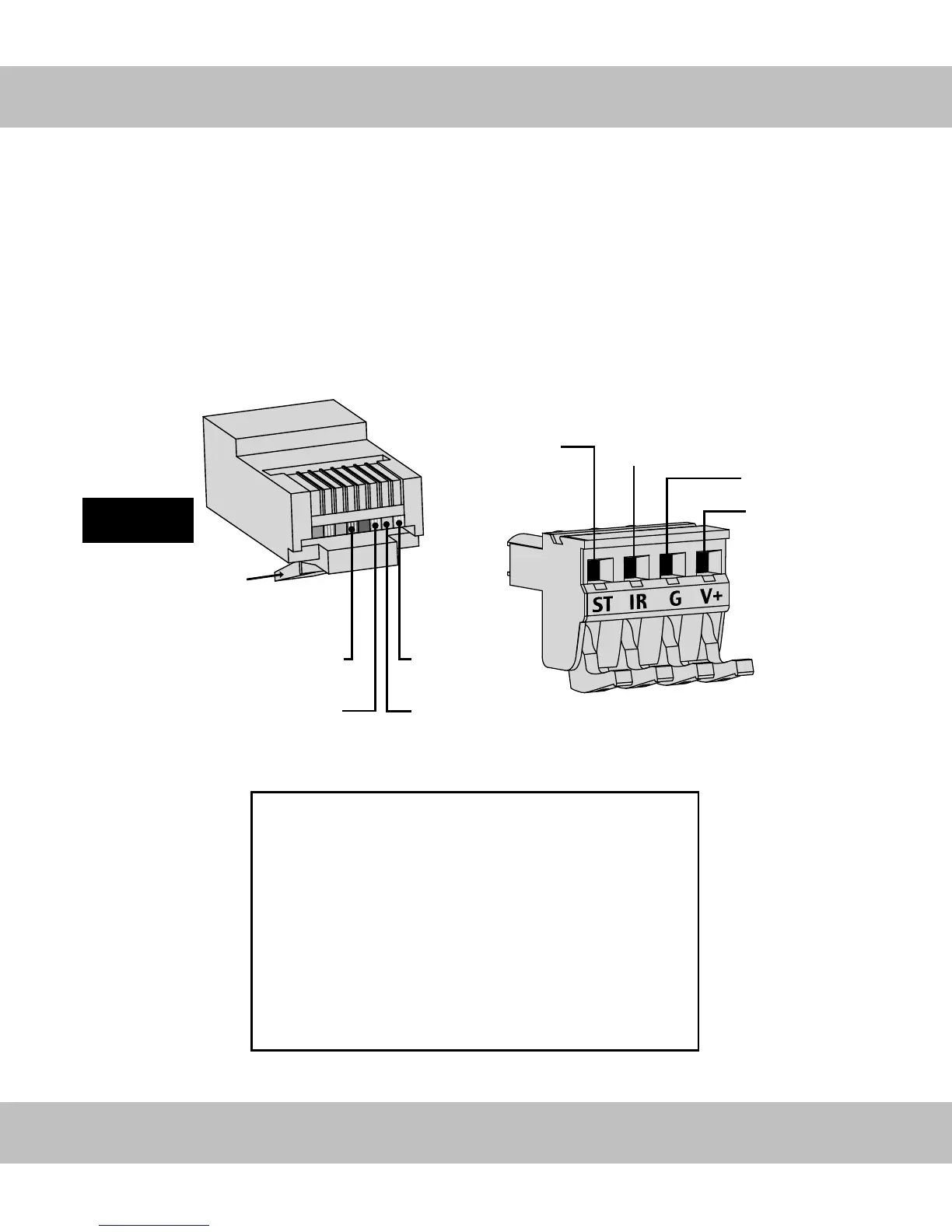

Figure 9: IR Sensor to Display Keypad pinout. See table below.
RJ-45
Pin # Color Code Connector
1 White/Green 12V
2 Green Data
3 White/Orange Ground
4 Blue Empty
5 White/Blue Status
6 Orange Empty
7 White/Brown Empty
8 Brown Empty
