Niles MSU140 - Addendum

18
I NFRARED M AIN S YSTEM U NIT
Addendum: Using the MSU140 with the
IntelliControl
®
automation system
1234
POWER
+12V DC
3-30V
AC/DC
STATUS
IN
FLASHER OUTPUTS
MSU140
IR MAIN SYSTEM UNIT
INPUT 1
150 OHm
Resistor
Using the MSU140 with the IntelliControl Home Theater
automation system

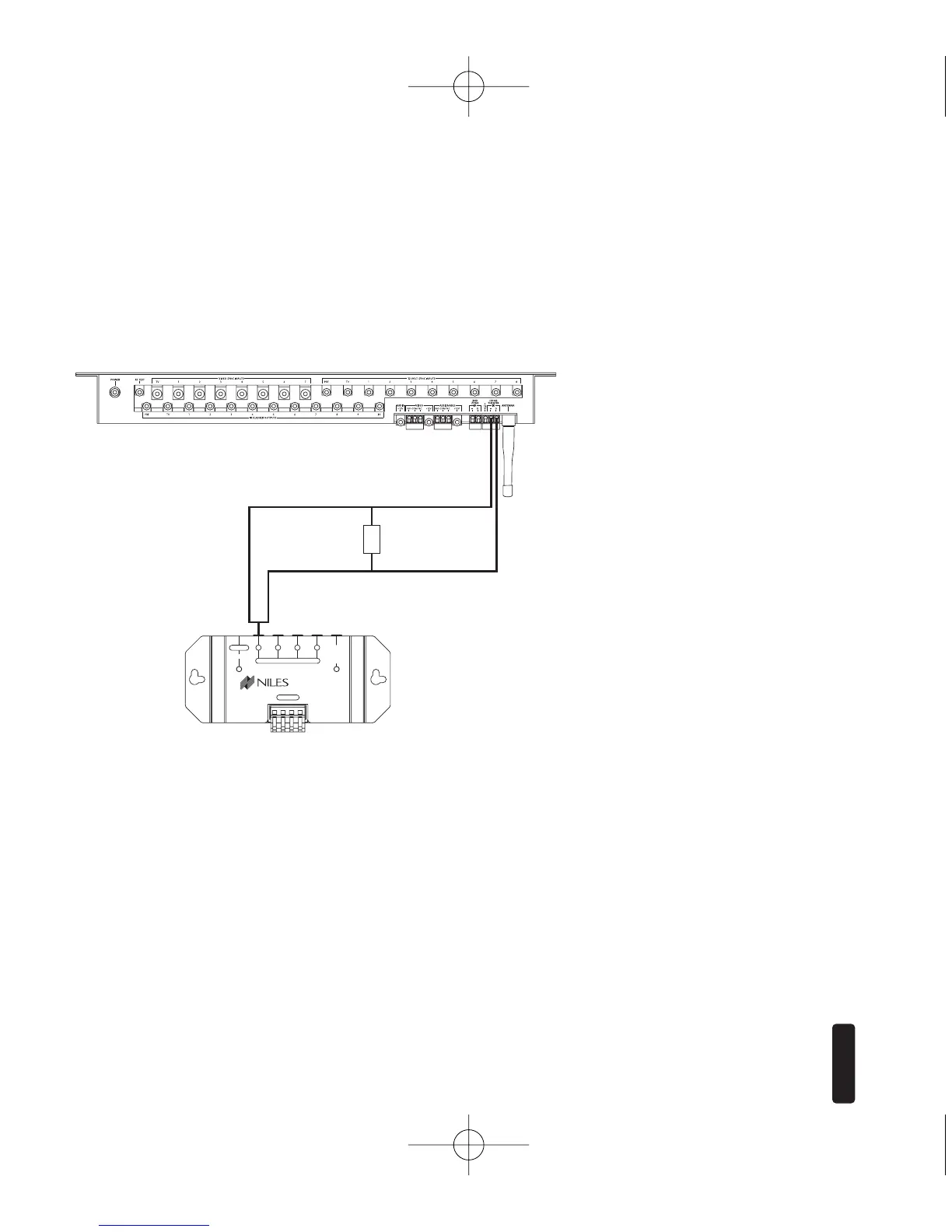

When connecting an MSU flasher output to an
IntelliControl “Home Theater” port, a 150-Ohm resistor
must be placed between the data and the ground line of
the IntelliControl IR sensor input (see figure above). No
resistor is needed if the MSU is being connected to the
”2nd Zone” port of the IntelliControl.
