3. Make the connections to the SPS-4. Strip 3/8" of insulation
from the end of each wire. Tightly twist the end of each wire
until there are no frayed ends. Insert each wire into the
appropriate hole on the spring-loaded connector terminals.
Be certain that proper phasing is observed—connect the
positive terminals on the SPS-4 to the positive terminals on
the amplifier and speakers and the negative terminals on the
SPS-4 to the negative terminals on the amplifier and speak-
ers. See (Figure 3).
4. Locate the pre-printed Room Labels. Affix the appropriate
label to the recessed area over each ON/OFF selector button.
10
S
PEAKER
S
ELECTION
S
YSTEM

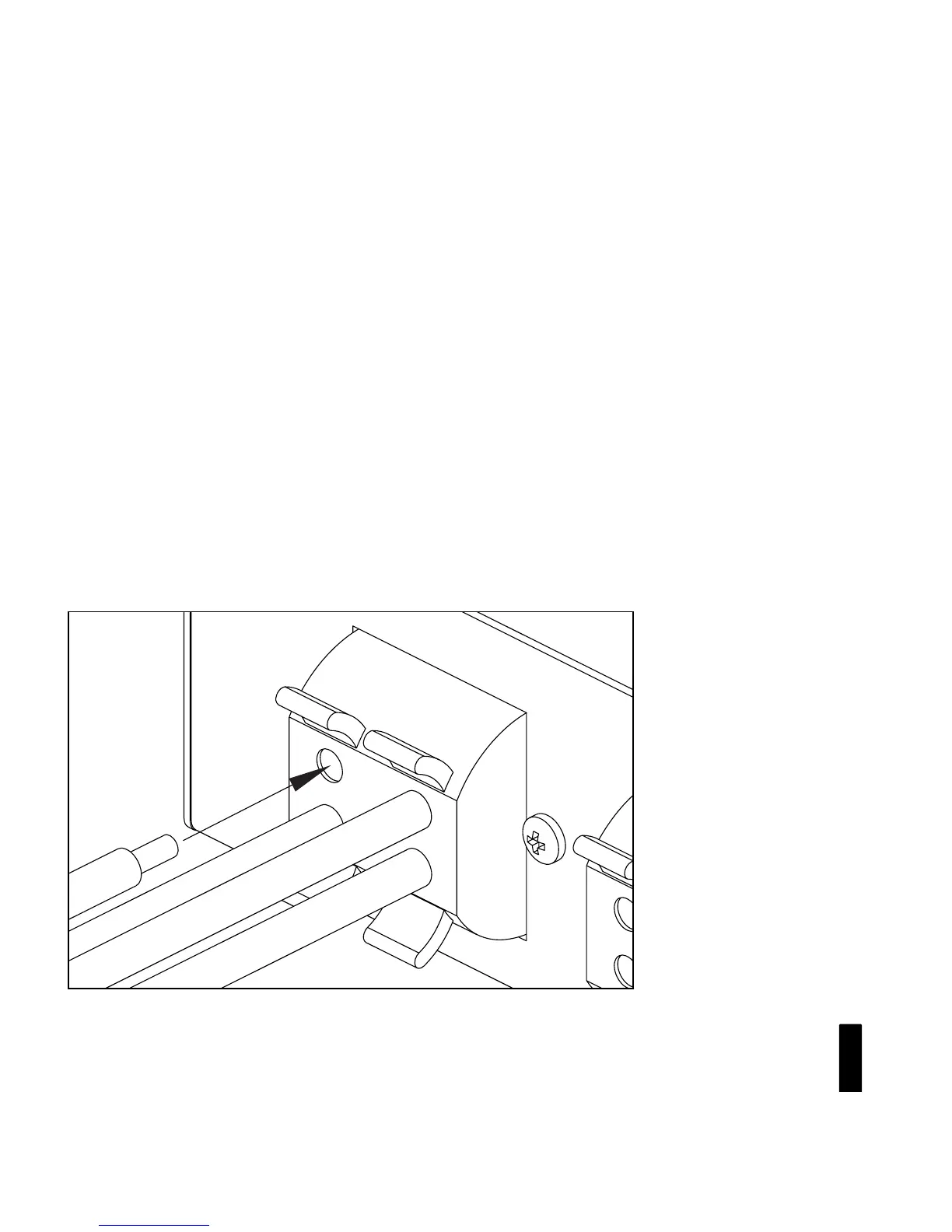

Figure3
Connecting the
Wires
