Niles SPS-4 - Installation

Installation
1. Select a convenient mounting location for the SPS-4.
2. Run all the necessary wiring to the SPS-4. Label the wires
for future reference. See (Figure 2).
9
S PEAKER S ELECTION S YSTEM
TUNER 94.9
15
SPEAKER 2 SPEAKER 1SPEAKER 3SPEAKER 4
LR
AMPLIFIER
LR
LR
++
--
++
--
LRLR
++
--
Niles Audio
Corporation, Inc.
Miami, Florida USA
NILES
Niles SPS-4
Receiver
Speaker
Pair 4
Speaker
Pair 3
Speaker
Pair 2
Speaker
Pair 1

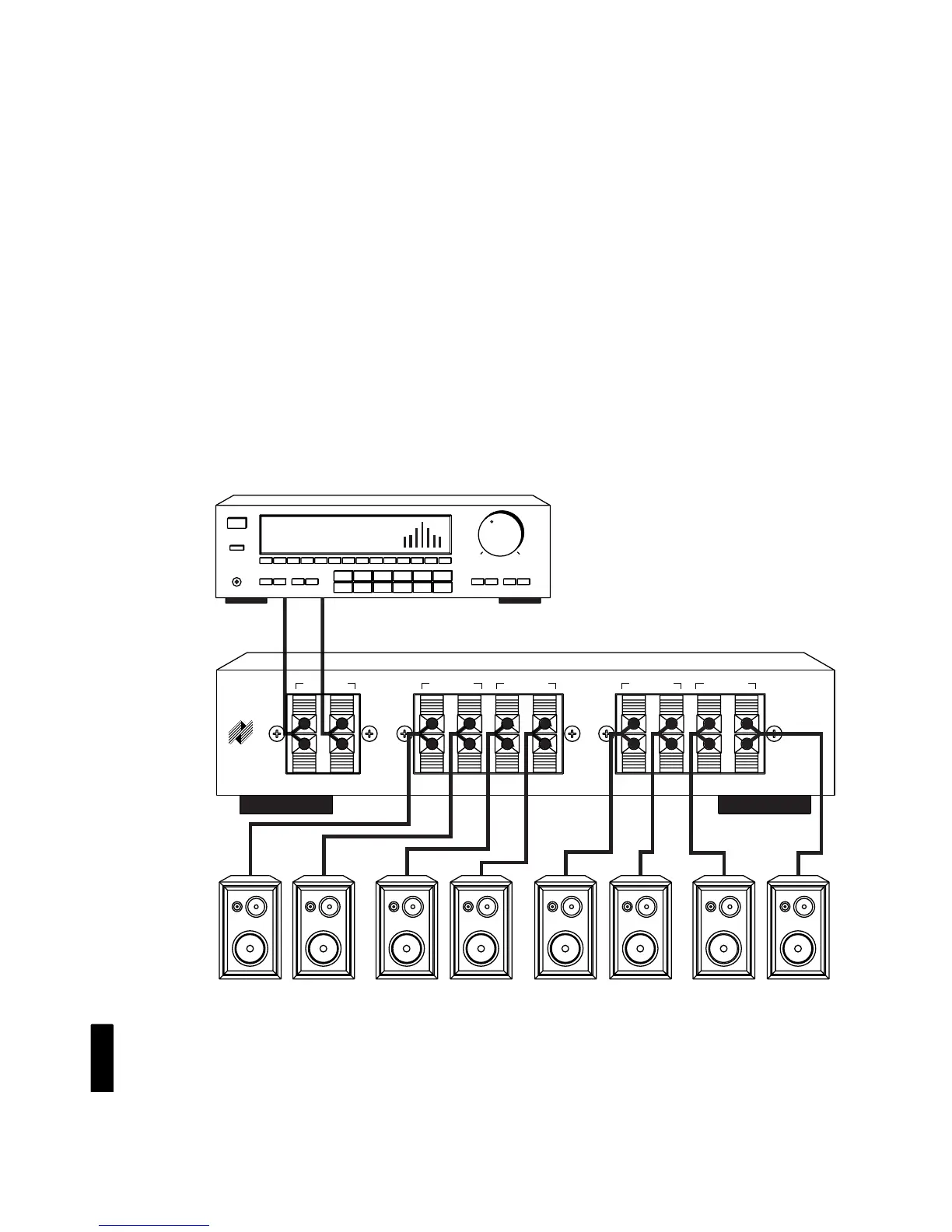

Figure2
Wiring Diagram
