AUTOMATED SWITCHING SYSTEMS
NILES AUDIO CORPORA
TION
12331 S.W
. 130 Str
eet, Miami, FL 33186 T
el: 800.259.4434 –
www
.nilesaudio.com
NA
TV
A50PDF
FEATURES
■ Digital amplifier design provides outstanding performance in a small discrete package
■ 50 watts per channel RMS into 8 ohms, .05% THD (both channels driven)
■ 75 watts per channel RMS into 4 ohms, .05% THD (both channels driven)
■ Stable into low-impedance loads - 2.66 ohms
■ DC, short-circuit, and overload protection with automatic reset
■ Two turn-on modes: Current Sense and Voltage Trigger
■ Voltage trigger input accepts 3V-30V AC/DC
■ Accommodates two pair of speakers via removable screwless connectors
■ 12Volt control out – 12Volt DC/200mA
■ Removable three-wire IEC line cord
■ CSA listed and tested under UL6500 standards
SPECIFICATIONS
■ Dimensions: 8” wide x 2 3/8” high x 8” deep
Warranty: Two-year limited
Stereo Amplifier with Built-in Automated Speaker-level Switching
TVA50
Stock Number
FG01058
Product Detail

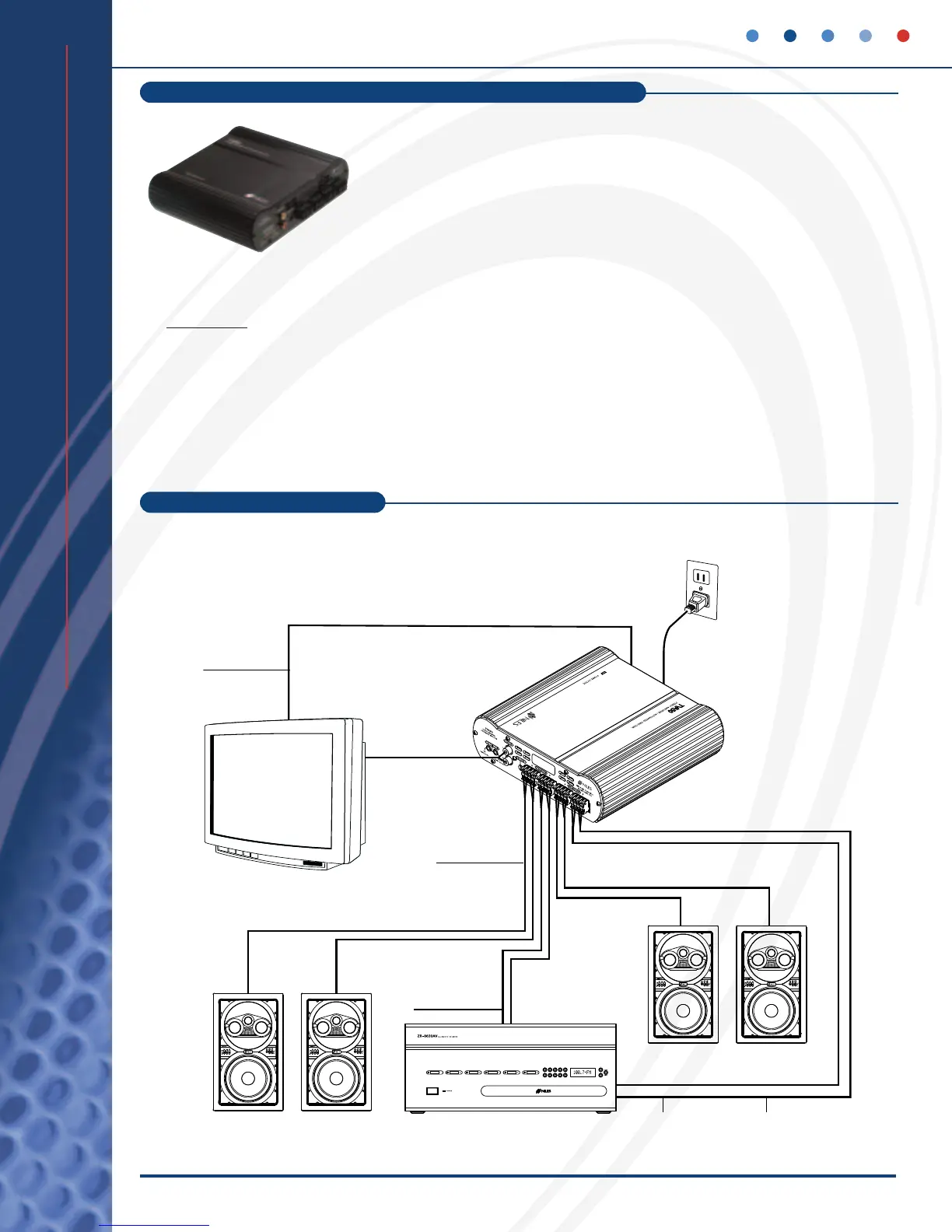

Use TVA50 to automatically switch between whole house audio and a local TV using current sensing.
TO UNSWITCHED
OUTLET
TO CURRENT SENSING OUTLET
SPEAKER (B) OUT
SPEAKER (B)
SPEAKER (A) WHOLE HOUSE RECEIVER
TV – LOCAL ROOM
RIGHT/LEFT
TV VARIABLE
LINE OUT
TVA50
TV – POWER
CORD
TO SPEAKER
(A) INPUT
TO SPEAKER
(A) OUT
TO SPEAKER
(B) INPUT
RIGHT LEFT
RIGHT LEFT
RIGHT
LEFT
RIGHT LEFT
