Niles VCS100 User Manual

109
H IGH-PO WER S TEREO V OLUME C ONTROLS
H IGH-PO WER S TEREO V OLUME C ONTROLS
SPECIFICATIONS
Audio Power Handling
100W/channel RMS
200W/channel peak music power
Mounting
In-wall, fits into most 18-cubic-inch single-gang junction boxes
at least 2-3/4" deep
W
iring Requirements
14-16 gauge, two individual runs of two-conductor speaker
wire, or one run of four-conductor speaker wire.
Unit Dimensions
1-5/8" wide x 2-5/8" high
Faceplate Dimensions
Faceplate: 2-3/4" wide x 4-1/2" high
Depth Behind Faceplate
2-9/16"
CONTENTS
VCS 100R
• VCS 100 volume control
• Snap-on Decora color insert
• Decora wallplate
• Standard wallplate
• Knob
• Device mounting screws X2
• Faceplate screws X2
• Removable speaker connector X2
VCS 100
• VCS 100 Volume Control
• Snap-on Decora color insert
• Knob
• Device mounting screws X2
• Removable speaker connector X2

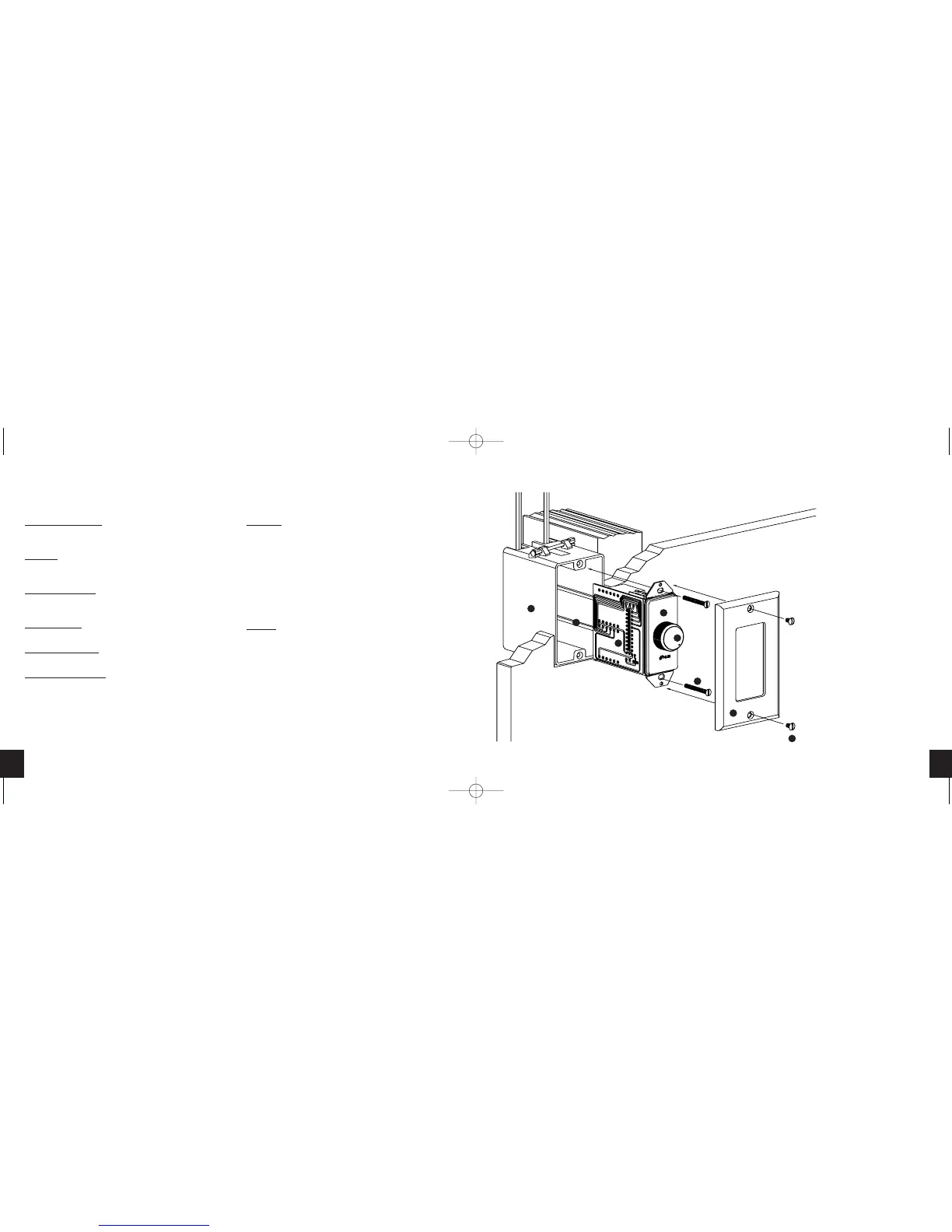

(a) Electrical Box
(b) Speaker Wire
(c) VCS 100 Volume Control (supplied)
(d) Snap-on Color Insert (supplied)
(e) Knob (supplied)
(f) Device Screws (2 supplied)
(g) Decora Wallplate (supplied)
(h) Faceplate Screws (2 supplied)
b
c
d
e
f
g
h
a
Figure 9
DS00310BCN/VCS100-VCS100R 11/12/03 10:36 AM Page 11

Niles VCS100 Specifications

Audio Power Handling

RMS power per channel	100 W
Peak music power per channel	200 W

Mounting

Mounting type	In-wall
Junction box compatibility	18-cubic-inch single-gang
Minimum junction box depth	2-3/4"

Wiring Requirements

Wire gauge	14-16 gauge
Speaker wire runs	Two individual runs of two-conductor or one run of four-conductor

Dimensions

Unit width	1-5/8"
Unit height	2-5/8"
Faceplate width	2-3/4"
Faceplate height	4-1/2"
Depth behind faceplate	2-9/16"
