B l e n d i n g Hi g H Fi d e li t y An d Ar c H i t e c t u r e
®
CALL 1-800-BUY-HIFI – 305.238.4373 – www.nilesaudio.com
1) LED Zone ON/OFF Indicators Individually illuminate when the corresponding zone is active, turn off when the zone is
off, and provide diagnostic information about the zone.
2) Main Power Switch Push-button, latching switch turns the main power to the ZR-6 MultiZone Receiver ON and OFF.
3) Band, Set, –, and + Push Buttons Used to operate the AM/FM tuner, set favorite preset stations into memory, and
perform system configuration operations.
4) Backlit LCD Display Two-line, 16-character, LCD display shows current tuner preset, band, programming, diagnostics
information and menus during configuration.
5) Programming Panel Behind a removable cover are the installer programming buttons and connections. (shown below)
6) Rack Mount
Ears
Two metal rack-mount ears are included and can be attached for installing the ZR-6 MultiZone
Receiver into a professional rack.
7) IR Receiver Receives the IR codes from hand-held remotes during programming.
8) Program Button Enters and exits ZR-6 MultiZone Receiver IR programming and editing mode.
9) Previous and Next Buttons Step forward and backward through each part of the programming process.
10) Test IR Button Transmits the last-learned IR code out of its respective IR output to verify correct operation.
11) Erase Button Erases various parts of the ZR-6 MultiZone Receiver memory.
12) Sequence Insert (Library 1) Inserts the stored IR commands from Library 1 into sequences to control source devices.
13) Sequence Insert (VS-6/Library 2) Inserts pre-loaded VS-6 High Definition Video Switcher IR commands and/or
additional stored IR commands from Library 2 into sequences to control source devices.
14) Archive/Update Port Used to connect a computer for archiving and restoring previously saved ZR-6 MultiZone
Receiver configurations and or updating the firmware of the ZR-6 MultiZone Receiver and connected keypads.
15) Programming Slide Switch Disables the rear RS-232 connection and activates the front RS-232 connection for
archiving, setup, and firmware updates.
16) IR Status LED Indicates reception of IR codes by the ZR-6 MultiZone Receiver.

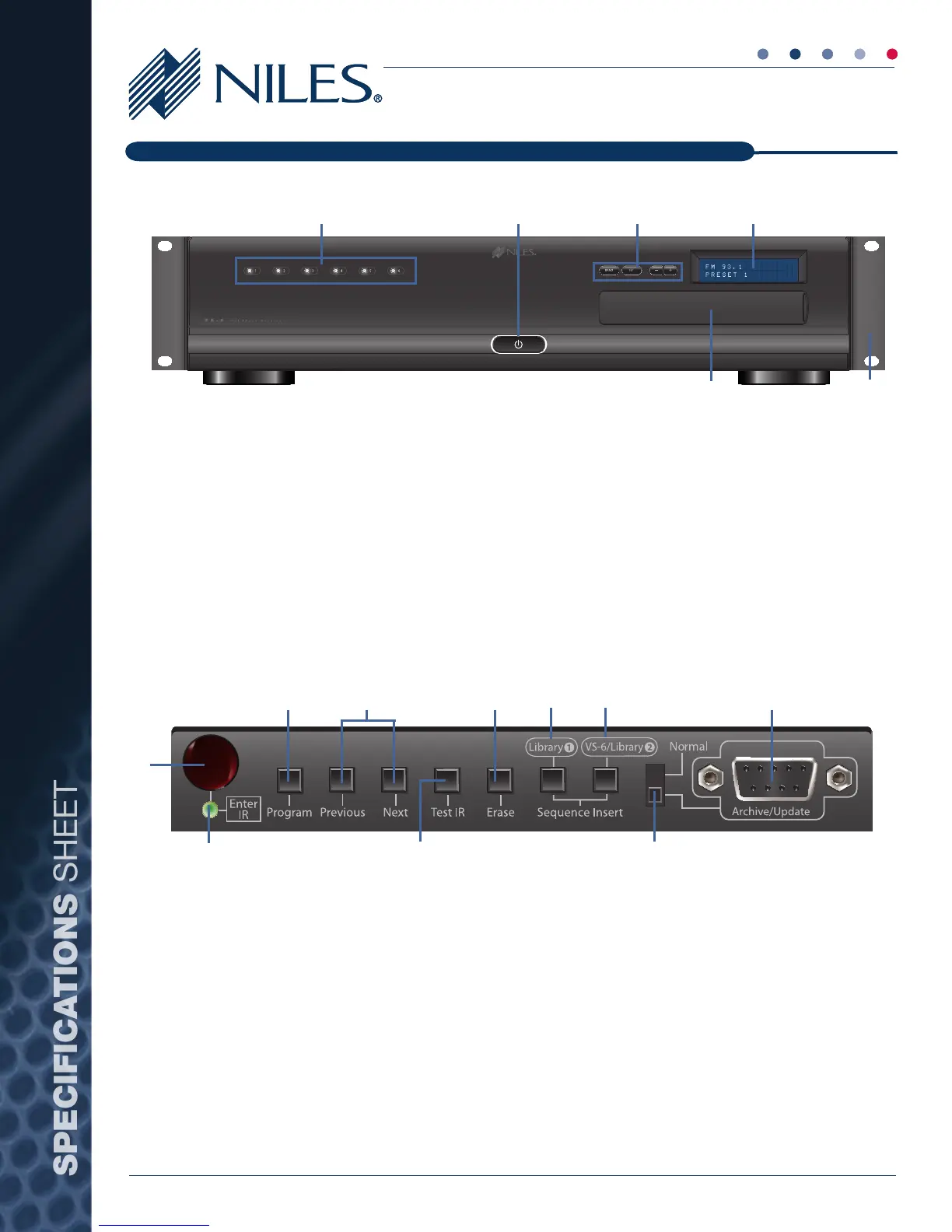

ZR-6 MultiZone Receiver
Front View
ZR-6 MultiZone Receiver
Programming Panel
15
1 0
16
7
8
9
11
14
12 13
1
2 3
4
5
6
PARTS GUIDE
