Niles ZR-6 Specification Sheet

SPECIFICATIONS SHEET
B l e n d i n g Hi g H Fi d e li t y An d Ar c H i t e c t u r e
®
CALL 1-800-BUY-HIFI – 305.238.4373 – www.nilesaudio.com
SPECIFICATIONS SHEET
KEYPAD ZONES VIDEO SYNC
1 2 3
5 6 4
2 3 4
5 6
FLASHERS 12 V TRIGGERS
2 3 4
6 HP 5
All
Zone 4
EXPANSION
In
Out
AM/FM
L
R
Page
2 3 4
5 6
Audio
iPOD
ZONE 6 ZONE 5 ZONE 4 ZONE 3 ZONE 2 ZONE 1
Zone 5
Zone 6
HT
Sync
IR In
RS 232
120 Volts ~ 60Hz. 500 Watts Max.
Niles Audio Corp oration
Miami, Florida U SA
Z R - 6
MultiZone Receiver
Global
3 2 4 5 6
AUDIO
5 4 6
PREOUTS
8 Ω (4 Ω Min.)
Speaker Outputs
Class 2 Wiring
8 Ω (4 Ω Min.)
Speaker Outputs
Class 2 Wiring
8 Ω (4 Ω Min.)
Speaker Outputs
Class 2 Wiring
8 Ω (4 Ω Min.)
Speaker Outputs
Class 2 Wiring
8 Ω (4 Ω Min.)
Speaker Outputs
Class 2 Wiring
8 Ω (4 Ω Min.)
Speaker Outputs
Class 2 Wiring
VOLTAGE SYNC
L+ L- R- R+ L+ L- R- R+ L+ L- R- R+ L+ L- R- R+ L+ L- R- R+ L+ L- R- R+ L+ L- R- R+ L+ L- R- R+ L+ L- R- R+ L+ L- R- R+ L+ L- R- R+ L+ L- R- R+
AUDIO INPUTS
INPUT 2 OR CASCADE OUT FOR iPod
Thi s d ev ice co mp lie s w it h p ar t 1 5 of th e F CC R ul es. Op er ati on is su bje c t to th e fo ll ow in g tw o c on dit io ns : ( 1) Th is de vi ce
may n ot ca us e h ar mf ul in te rf er enc e, a nd (2) t hi s d ev ic e m us t a cc ep t a ny i nte r fer en ce rece iv ed, i nc lud in g i nt er fe ren ce
tha t ma y c au se u nd esi re d op era ti on .
SERIAL # LABEL HERE
CAUT ION – RISK OF ELEC TRIC SHOC K – DO N OT O PEN
AVIS – RISQ UE D E CH OC ELECTR IQUE – NE P AS O UVRI R
Double Insulated
When servicing use only
identical replacement parts.

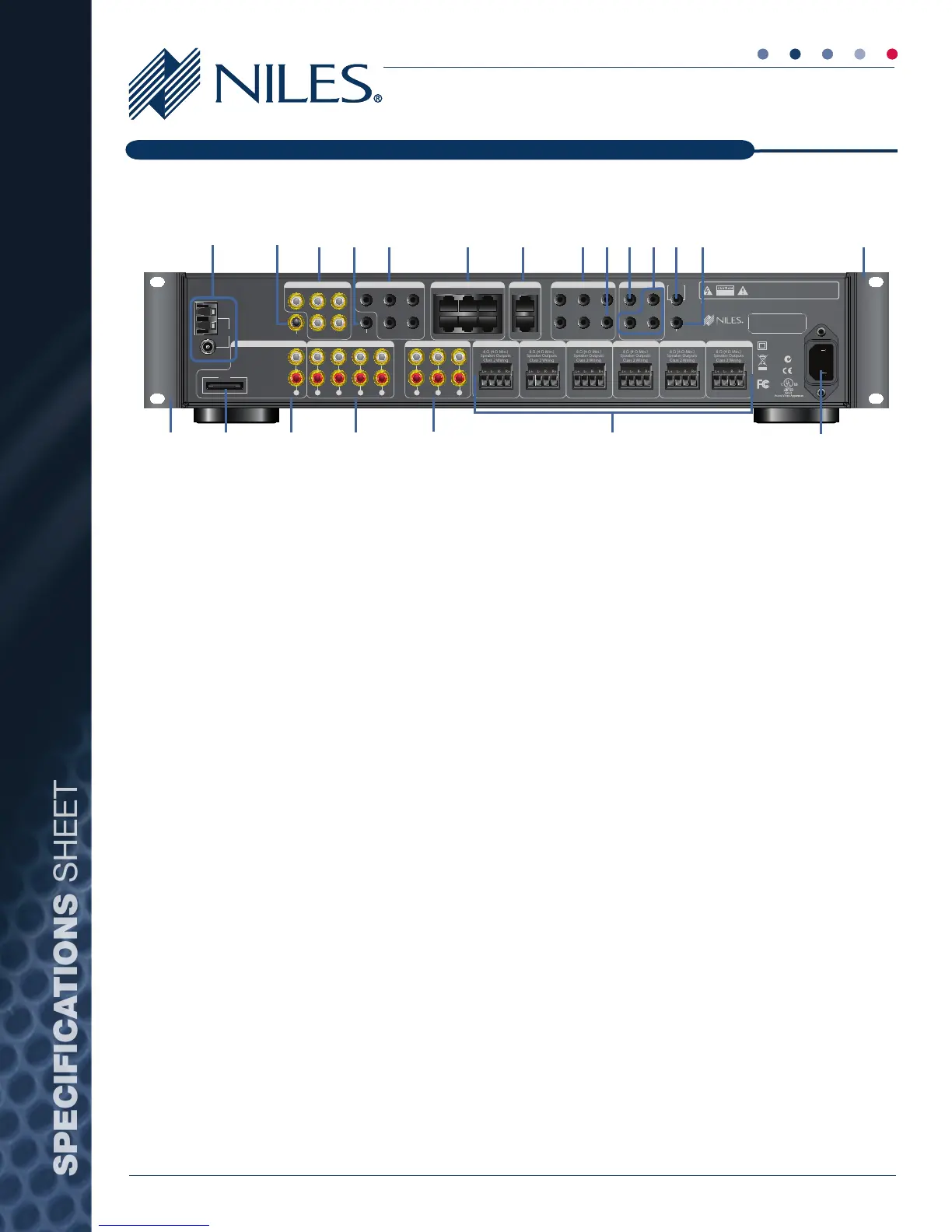

ZR-6 MultiZone Receiver
Rear View
18
19
20
21
22 23
24 25
26
27
28
29
31
30
32
3334
35
36
17
30
PARTS GUIDE
17) AM/FM Antenna Connections For connecting the supplied AM and FM antennas.
18) Paging Input Connects to a compatible telephone system, intercom system and/or a doorbell.
19) Video Sync Inputs Determines on/off status of connected video device by detecting presence of a video signal.
20) RS-232 Port A 3.5 mm stereo mini-jack is used to provide RS-232 serial communication so the ZR-6 MultiZone Receiver
can be monitored and controlled by an external control system.
21) Voltage Sync Inputs Determine the on/off status of connected source devices by detecting the presence of a trigger
voltage between 3V and 20V, AC or DC.
22) Keypad Ports Six zone-specific RJ-45 jacks are used to connect the keypads with CAT-5 cable.
23) Expansion Ports Two RJ-45 jacks are used to connect the Master MultiZone Receiver to the Slave MultiZone Receivers
using CAT-5 cable.
24) MicroFlasher
®
Outputs Five 3.5 mm stereo mini-jacks are used to connect the optional Niles MicroFlashers (FG01019)
to control the source devices.
25) High Output Flasher A single 3.5 mm mini-jack is used to connect an optional Niles IRB1 High Output IR Flasher
(FG01023) to control multiple devices from a single flasher.
26) Global 12V Trigger Output A single 3.5 mm mini-jack is used to provide a 12V DC trigger to automate the power
turn-on and turn-off of connected devices such as a Niles AC-3 Voltage-triggered AC Power Strip (FG00242).
27) Zone Four, Five, and Six 12V Trigger Outputs Three 3.5 mm mini-jacks are used to provide a 12V DC trigger to
automate the power turn-on and turn-off of zone-specific connected devices such as Niles System Integration Amplifiers.
28) Global IR Input A single 3.5 mm mini-jack is used to provide an input connection for IR commands from an external
control system such as the Niles iC2
™
Home Theater Automation System (FG01342).
29) HT (Home Theater) Sync Input A single 3.5 mm mini-jack is used to detect voltage from a connected home theater
system to let the ZR-6 MultiZone Receiver know when the home theater is on.
30) Rack Mount Ears Two metal rack-mount ears are included and can be attached for installing the ZR-6 MultiZone
Receiver into a professional rack.
31) IEC Power Cable Connector Two-pin connector for the removable power cord.
32) Loudspeaker Terminals A removable terminal is provided for each of the six zones. Accepts speaker wire up to 14 AWG.
33) Zone Four, Five, and Six Preamplifier Outputs Three pairs of stereo RCA jacks are used to connect external power
amplifiers. Can be switched between fixed or variable output.
34) Source Audio Inputs Four pairs of stereo RCA jacks are used to connect stereo audio to Sources 3-6.
35) Source 2 Audio Input/iPod Cascade Audio Output A pair of stereo RCA jacks are used to provide an analog input
for a Source 2 external device when an iPod is not being used with the system. With an iPod, these jacks become
cascade audio outputs to route the iPod’s audio signal to a Slave ZR-6 MultiZone Receiver.
36) iPod Connector A 30-pin connector is used to provide a connection for an iPod digital music player as Source 2.
