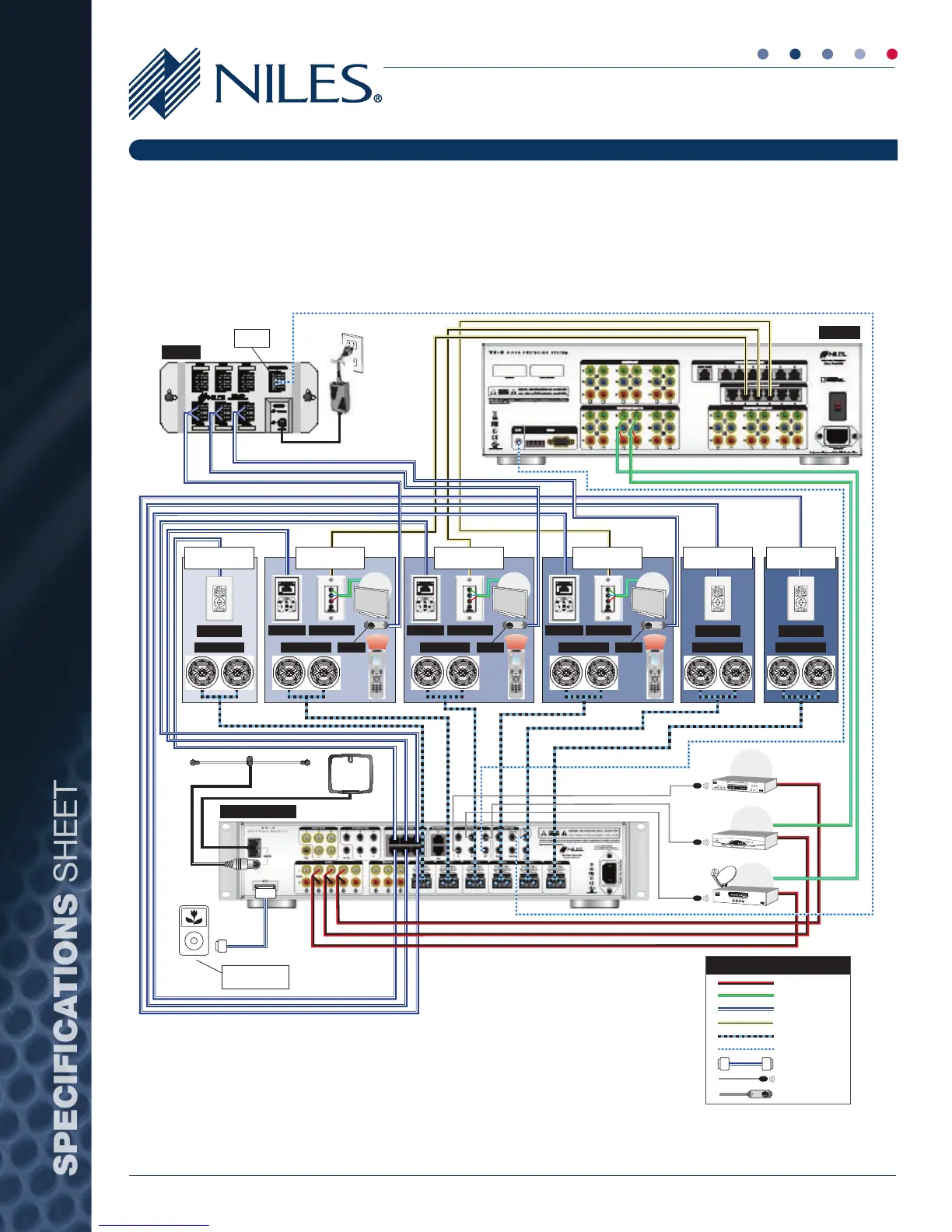

System
Wiring
Diagrams
INCLUDING DISTRIBUT
ED VIDEO WITH A NILES VS-
6
HIGH DEFINITION COM
PONENT VIDEO SWITCHER
WiRing LEgEnD
Audio
CA
T-5 Data
Flasher
HD
Video
3.5 mm
Speaker Cable
30 Pin Cable
CA
T-5
Video
IR Sensor
Data and
Ground
VS-6
MASTER ZR-6
Cable
Box
CD
Player
Satellite
Receiver
Solo-6 IR
ZONE 1
KITCHEN
IRH610
Solo-6 IR
ZONE 5
LIVINg ROOM
Solo-6 IR
ZONE 6
DININg ROOM
IR
ZONE 2
MASTER BEDROOM
Plasma/
LC
D
MS210
Solo-6 MD
C5-HDDAWM
Loudspeakers
IR
ZONE 3
OFFICE
Plasma/
LC
D
MS210
Solo-6 MD
C5-HDDAWM
Loudspeakers
IR
ZONE 4
gAME ROOM
Plasma/
LC
D
MS210
Remote
Solo-6 MD
C5-HDDAWM
Loudspeakers
Loudspeakers
Loudspeakers
Loudspeakers
Remote
Remote
Must support USB
hosting (per Apple)
iPod
®
Dock
6
8
Table of Contents
Key Features
1
Programming Panel
3
Rear View
4
System Wiring Diagrams
6
STAND-Alone ZR-6 Multizone Receiver
6
Including Distributed Video with a Niles VS-6 High Definition Component Video Switcher
7
Other manuals for Niles ZR-6
Installation Guide
104 pages
Brochure
6 pages
Design Guide
44 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Niles ZR-6 and is the answer not in the manual?
Ask a question
Niles ZR-6 Specifications
General
Channels/Zones
6
Impedance
8 ohms
Frequency Response
20 Hz - 20 kHz
Source Inputs
6
Input Sensitivity
200 mV
Weight
18 lbs
Inputs
6
Power Output
60W per channel
