FORM NO. 56041580 - Captor
™
4300, 4800, 5400 / CR 1100, 1200, 1400 - A-11
ENGLISH / A-11
OPERATOR’S COMPARTMENT (CONTINUED)
P Light Sensor
Q Shaker Switch
* Shaker Indicator (left)
* Dust Filter Plugged Indicator (right)
R Open Dump Door Switch
* Open Dump Door Indicator
S Hopper Open Indicator
T Hopper Overtemp Indicator
U Close Dump Door Switch
* Close Dump Door Indicator
V Lower Hopper Switch
* Lower Hopper Indicator
W Raise Hopper Switch
* Raise Hopper Indicator
X Dust Control Switch
* Dust Control ON Indicator
Y Side Broom UP/OFF Switch
* Side Broom OFF Indicator
Z Vacuum System Switch
* Vacuum System Indicator
AA Scrub System OFF Switch
* Scrub System OFF Indicator
BB Coolant Temperature Gauge
CC Oil Pressure Gauge
DD Fuel Gauge (Gas / Diesel)
EE Voltmeter

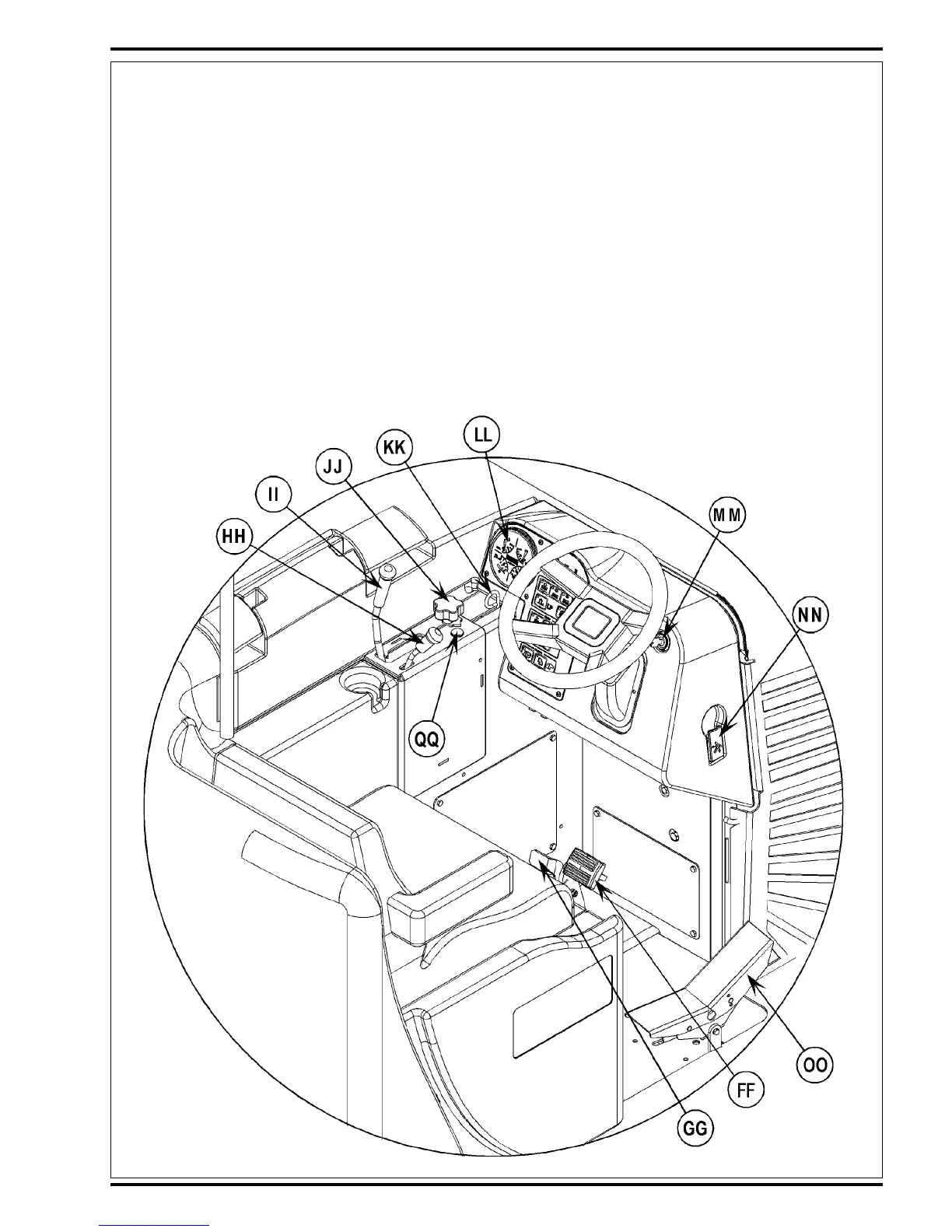

FF Brake Pedal
GG Parking Brake Latch
HH Solution Flow Control Lever
II Main Broom Raise/Lower (ON/OFF) Lever
JJ Main Broom Adjust Knob
KK Hopper Safety Support Lever
LL Control Panel
MM Ignition Switch
NN Tilt Wheel Lever
OO Drive Pedal
PP Hour meter
QQ Main Broom Overload Indicator Light
