A-8 - FORM NO. 56041580 - Captor
™
4300, 4800, 5400 / CR 1100, 1200, 1400
A-8 / ENGLISH

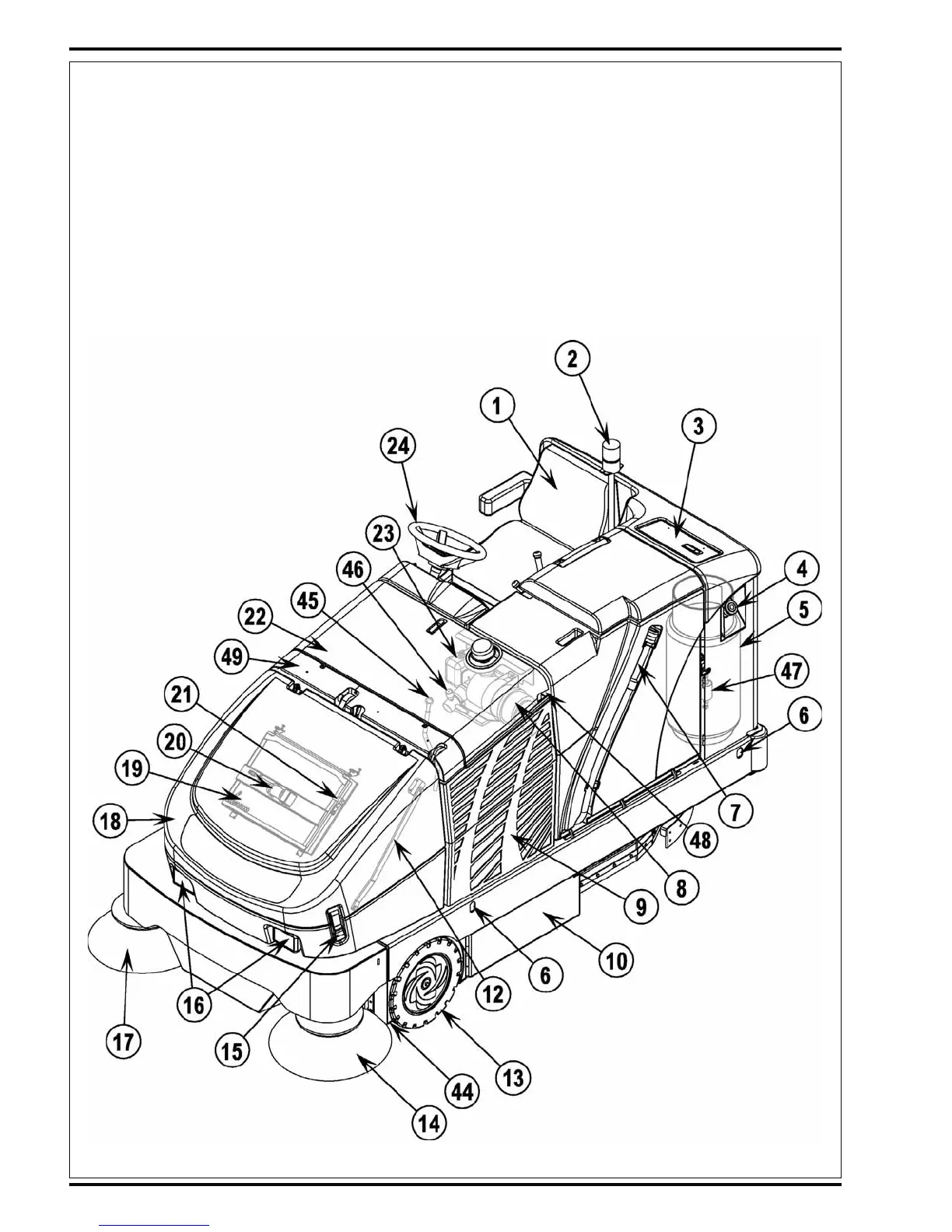

KNOW YOUR MACHINE
As you read this manual, you will occasionally run across a bold number or letter in parentheses - example: (2). These numbers refer to
an item shown on these pages unless otherwise noted. Refer back to these pages whenever necessary to pinpoint the location of an item
mentioned in the text. NOTE: Refer to the service manual for detailed explanations of each item illustrated on the next 4 pages.
1 Operator’s Seat
2 Strobe Light (optional)
3 Solution Tank Fill
4 Gasoline Tank Cap
5 Fuel Tank
6 Tie Down Locations
7 Recovery Tank Drain Hose
8 Engine Air Filter
9 Left Engine Compartment Access Panel
10 Main Broom Left Access Door
11 Battery
12 Hopper Lid Prop Rod
13 Front Wheel
14 Left Side Broom
15 Hopper Lid Latch
16 Headlights
17 Right Side Broom
18 Hopper Cover
19 Dust Control Filter
20 Dust Control Shaker Assembly
revised 11/06
