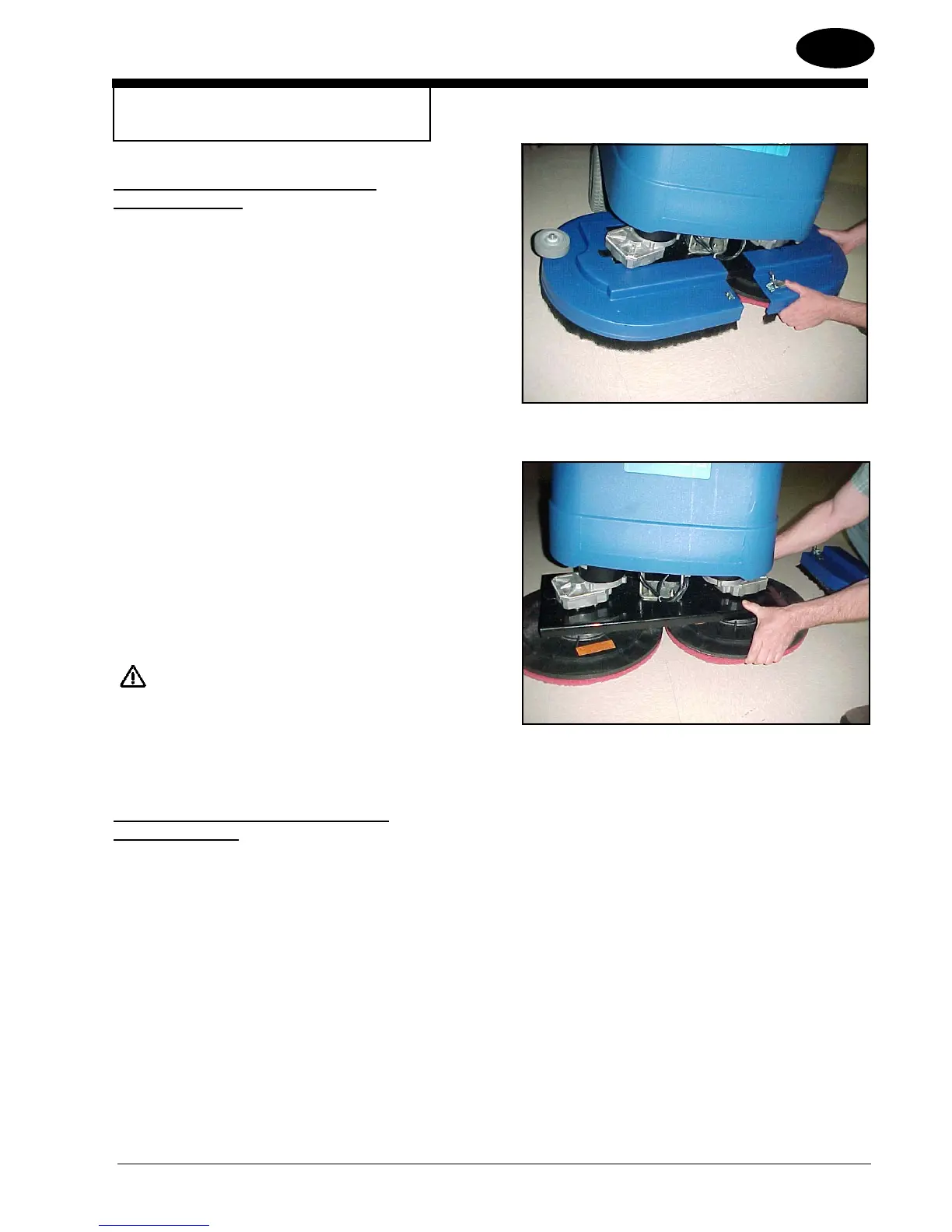

Figure 12
Figure 13
HOW TO PREPARE THE MACHINE
FOR OPERATION
How To Install The Brushes Or Pad Drivers
On The Disc Machine
To install the brushes or pad drivers on the machine,
follow this procedure:
1. Turn the key switch “ON”.
2. Put the brush head assembly in the “UP” position.
3. Turn the key switch “OFF”.
4. Unlatch right and left brush housings and remove them. See
fi gure 12.
5. Put a brush or pad driver under the brush motor plate. See
fi gure 13.
6. Align the lugs on the motor gimbal with the slots in the brush
gimbal.
7. Pull the brush up until the gimbal locks.
8. Repeat steps 5, 6 and 7 to install the second brush or pad driv-
er.
9. Reinstall right and left brush housings and latch front cover.
DANGER: Operating a machine that is not completely
or fully assembled could result in injury or
property damage. Do not operate this ma-
chine unless it is completely assembled.
Inspect the machine carefully before op-
eration.
How To Remove The Brushes Or Pad Drivers
On the Disc Machine
To remove the brushes or pad drivers from the machine, follow this
procedure:
1. Turn the key switch “ON”.
2. Put the brush head assembly in the “UP” position.
3. Turn the key switch “OFF”.
4. Unlatch right and left brush housings and remove them. See
fi gure 12.
5. Push down on two sides of the brush or pad driver until the gim-
bals release.
To Next Page
