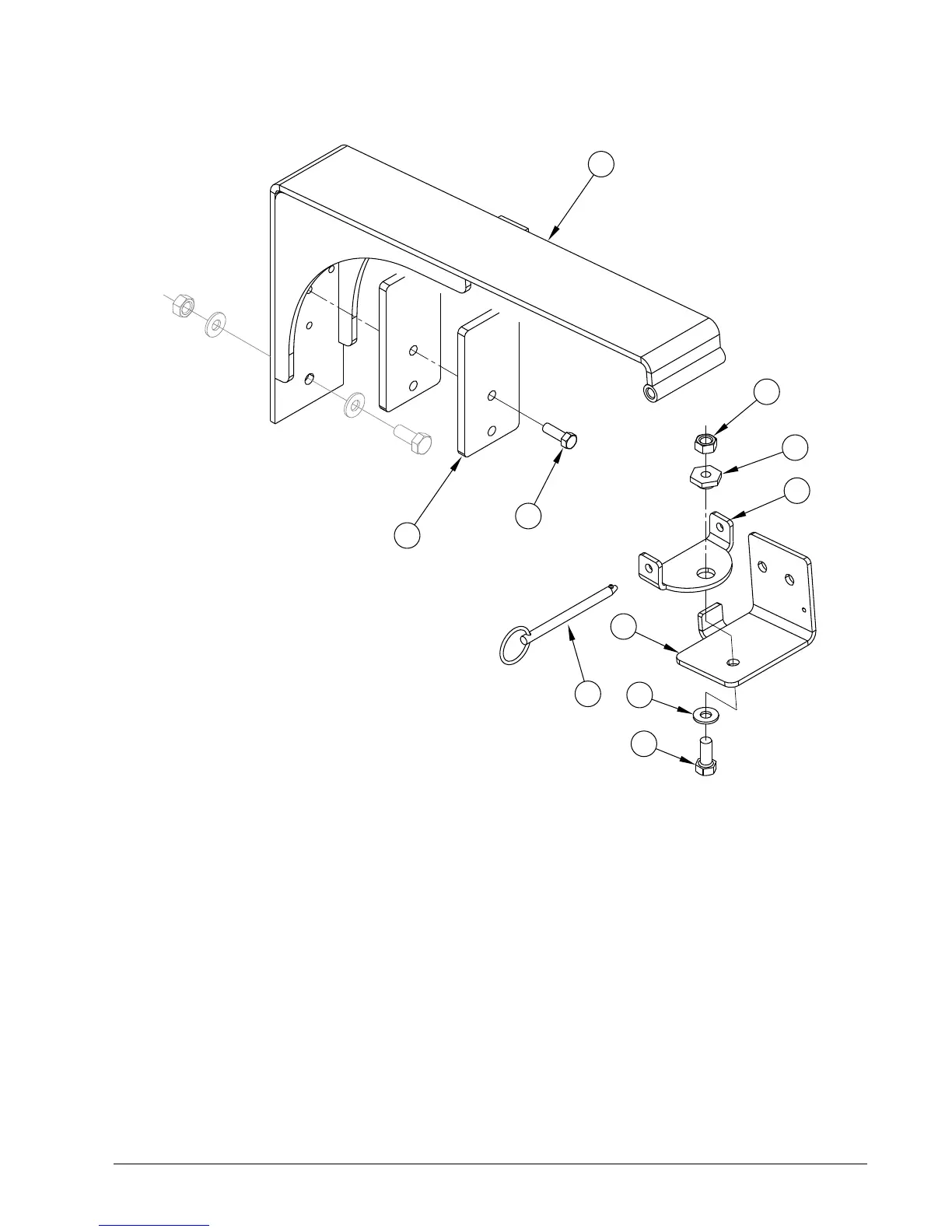

FRONT SQUEEGEE ARM ASSY – ROTARY MACHINES ONLY
Ref Part No. Qty Description
1 61548A 1 Arm, Weldment Squeegee
2 81112A 2 Nut, 5/16-18 Thin ESNA
3 67867A 1 Spacer, Squeegee Swivel
4 60256A 1 Arm, Squeegee Pivot
5 980651 3 Washer, 5/16 Flat
6 85811A 2 Screw, 5/16-18 x 3/4 Hex Head
7 53491A 1 Pin, Quick Release
8 61370A 2 Weight
9 170915 2 Screw,1/4-20 X 3/4 Hx Hd(Ss)
10# 61572A 1 Mount, Front Squeegee
# = Revised or new since last update
10
1
2
3
4
5
6
7
8
9
revised 8/11
