13
UNO / DUO BOOSTER BASIC
Original Instructions
4.1.2 High pressure hose -
to outlet point
(continued)
Pipeline, max. length:
UNO BOOSTER DUO BOOSTER
Ø12 x 1,5 - max. 50 m Ø15 x 1,5 - max. 25 m
Ø15 x 1,5 - max. 180 m Ø18 x 1,5 - max. 120 m
Ø18 x 1,5 - max. 500 m Ø22 x 2,0 - max. 250 m
When using max. pipe lengths,
only use a high pressure hose
of 10 m.

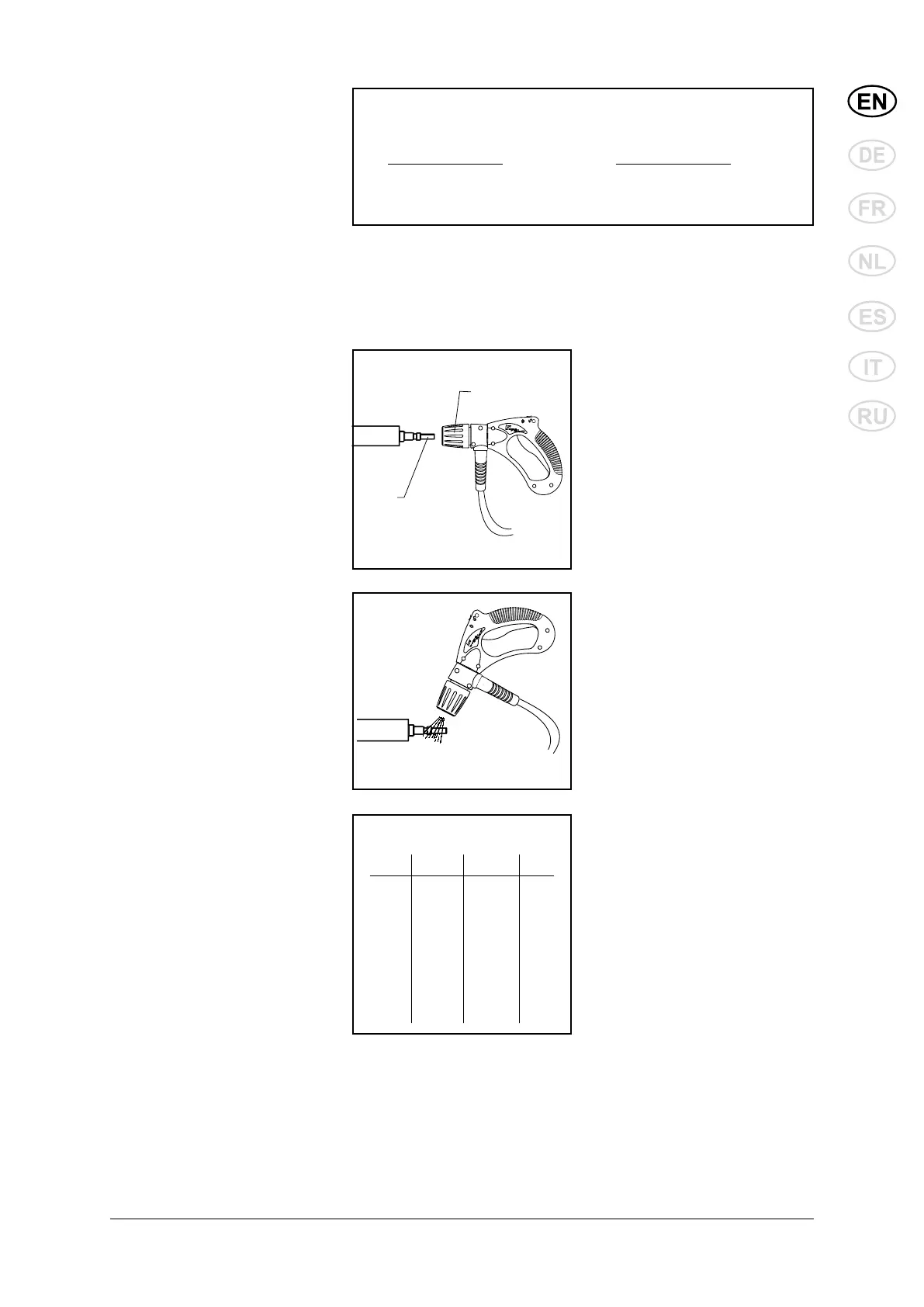

4.1.3 Spray handle -
accessories
4.1.4 Selection of
spray lance
You may use a double spray
lance as well as a single spray
lance with the machine. The
machine has been optimized
to use spray lances with a type
06 nozzle. The max. pressure
of the machine can be reduced
by using nozzles with a wider
diameter. See diagram.
P: Nozzle pressure
Q: Water volume
C: Colour code
N: No. of pumps (2 only DUO)
MULTIPRESSURE
P bar Q l/min. C N
27 17 Hvid 1
27 35 Sort 2
50 17 Brun 1
53 33 Grøn 2
80 17 Blå 1
80 27 Rød 2
107 17 Orange 1
107 26 Gul 2
152 17 Blank 1
1. Pull forward the quick
coupling trigger (1) of the
spray handle.
2. Insert the nipple of the
spray lance (2) in the quick
coupling and release the
trigger.
3. Pull forward the spray lance
or any other accessory to
ensure correct mounting
before starting the machine.
NOTE!
Clean nipple of any impurities
each time the spray lance has
been dismounted.
