GBA Service Manual
Page 10
1. Insert a thin, flat tool (e.g., stylus) between the upper left corners of the screen protector
and the front case, carefully making a lever.
Caution: Carefully leverage to prevent damage to the front case and the LCD.
2. Remove any remaining adhesive from the front case
3. Remove dust or other foreign material using an air jet before applying the new protector
of screen. Check that the LCD is perfectly aligned before applying the new screen protector.
4. Check that the front screen trim does not appear in the visible area of the screen.
5. Install the screen protector in the case without removing the protective film. Press it firmly
to low pressing all over the area to ensure good fixation.
6. Remove the protective film from the installed screen.

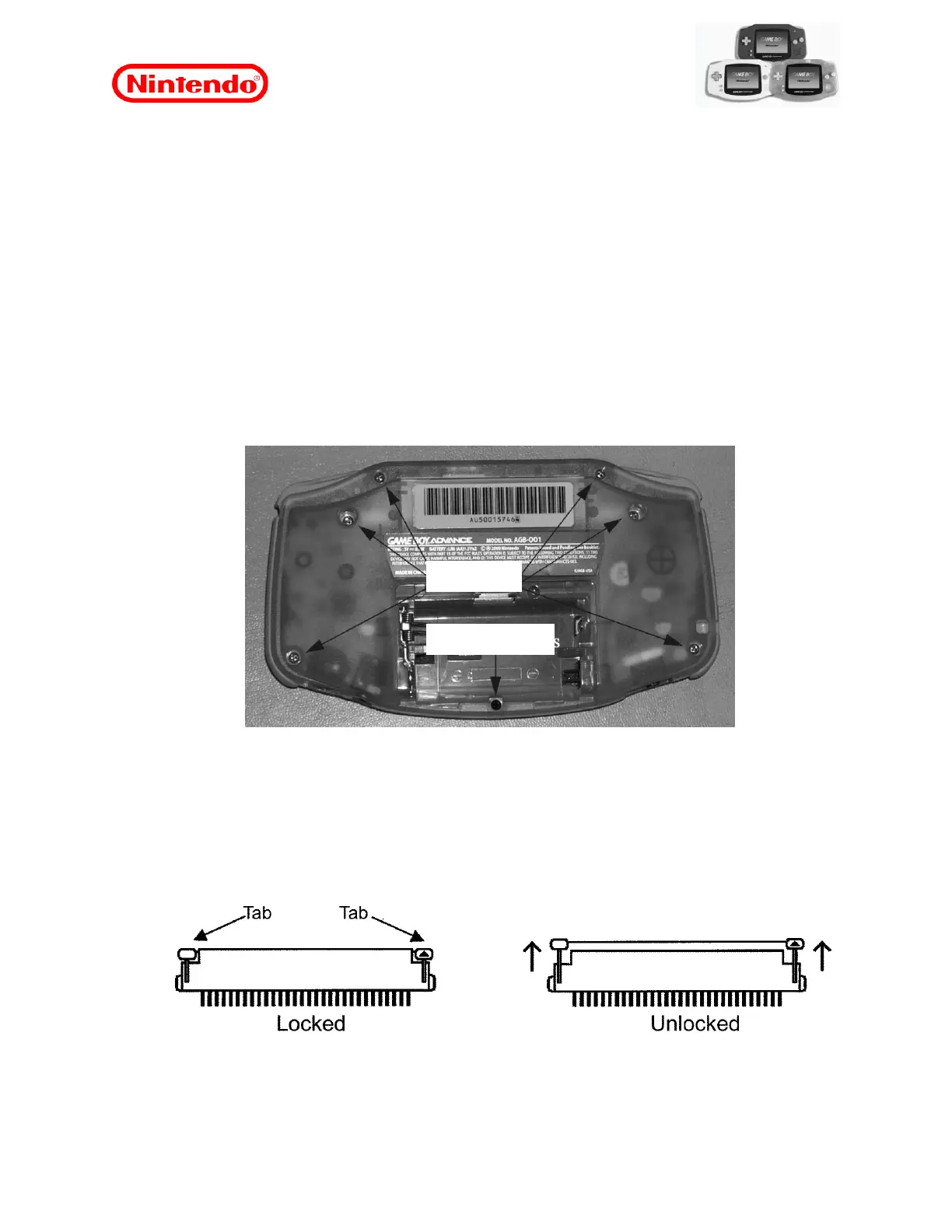

7.2 Disassembling the Unit
1. Remove the battery cover and all batteries.
2. Using the proper key, remove the six security screws Y.
Figure 5
3. Remove the Phillips screw, located under the battery cover.
4. Remove the rear case, taking care not to damage the battery contacts.
5. Release the flat cable from the display, from its connector on the Main PCI, releasing the
2 black locks, pushing them up.
Caution: Pay attention to avoid breaking the locks.
Figure 6
