GBA Service Manual
Page 15

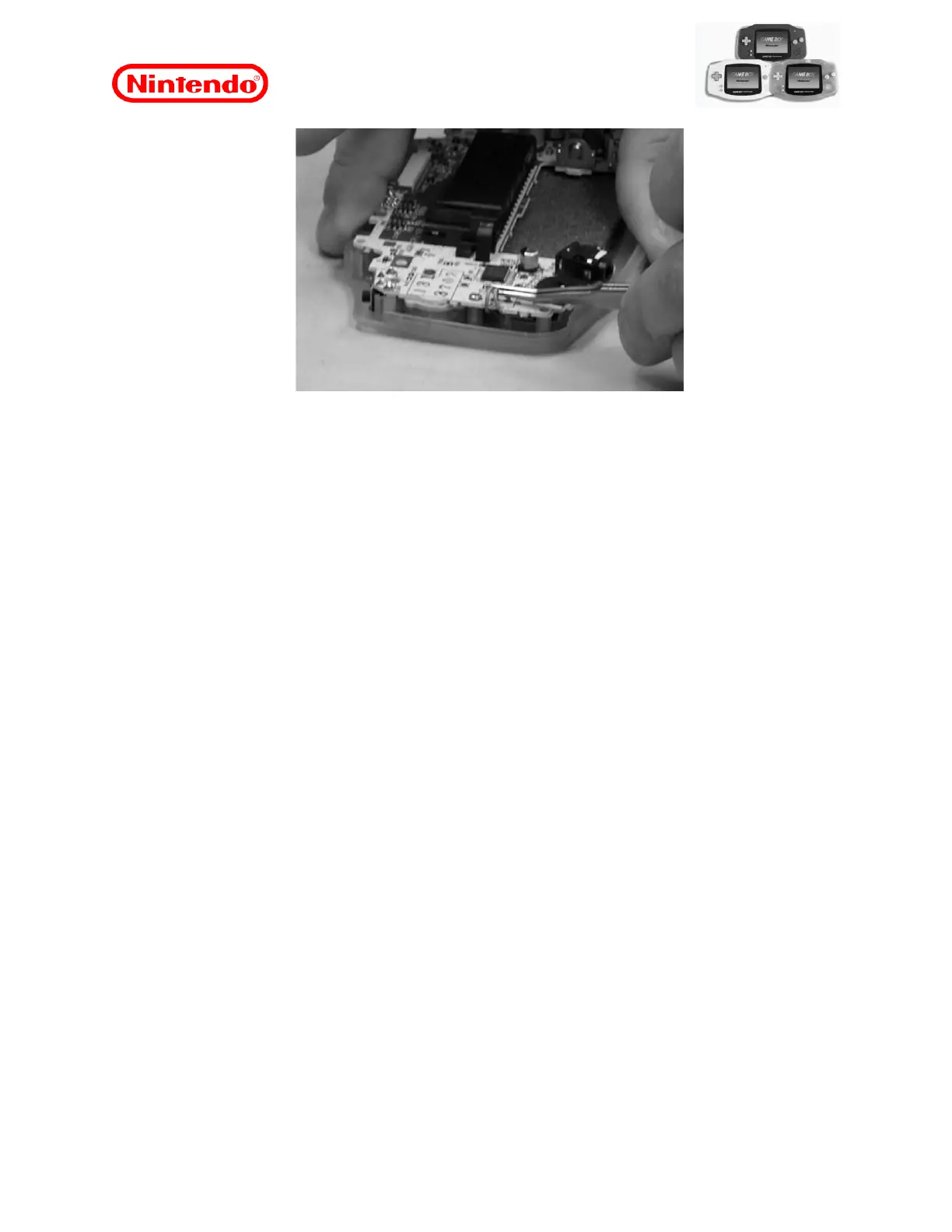

Figure 13
6. Insert the Flat Cable into the connector and lock it by sliding its latches down.
7. If the LCD has been replaced, perform the flicker test as per section 8.3 Flicker
adjustment and adjustment if required.
8. Install the rear case, taking care not to damage the battery contacts. Replace the six Y
screws and the single Phillips screw.
Caution: Do not place the security screw Y in the screw hole of the battery compartment.
Y screws are longer and can cause damage to the front case.
