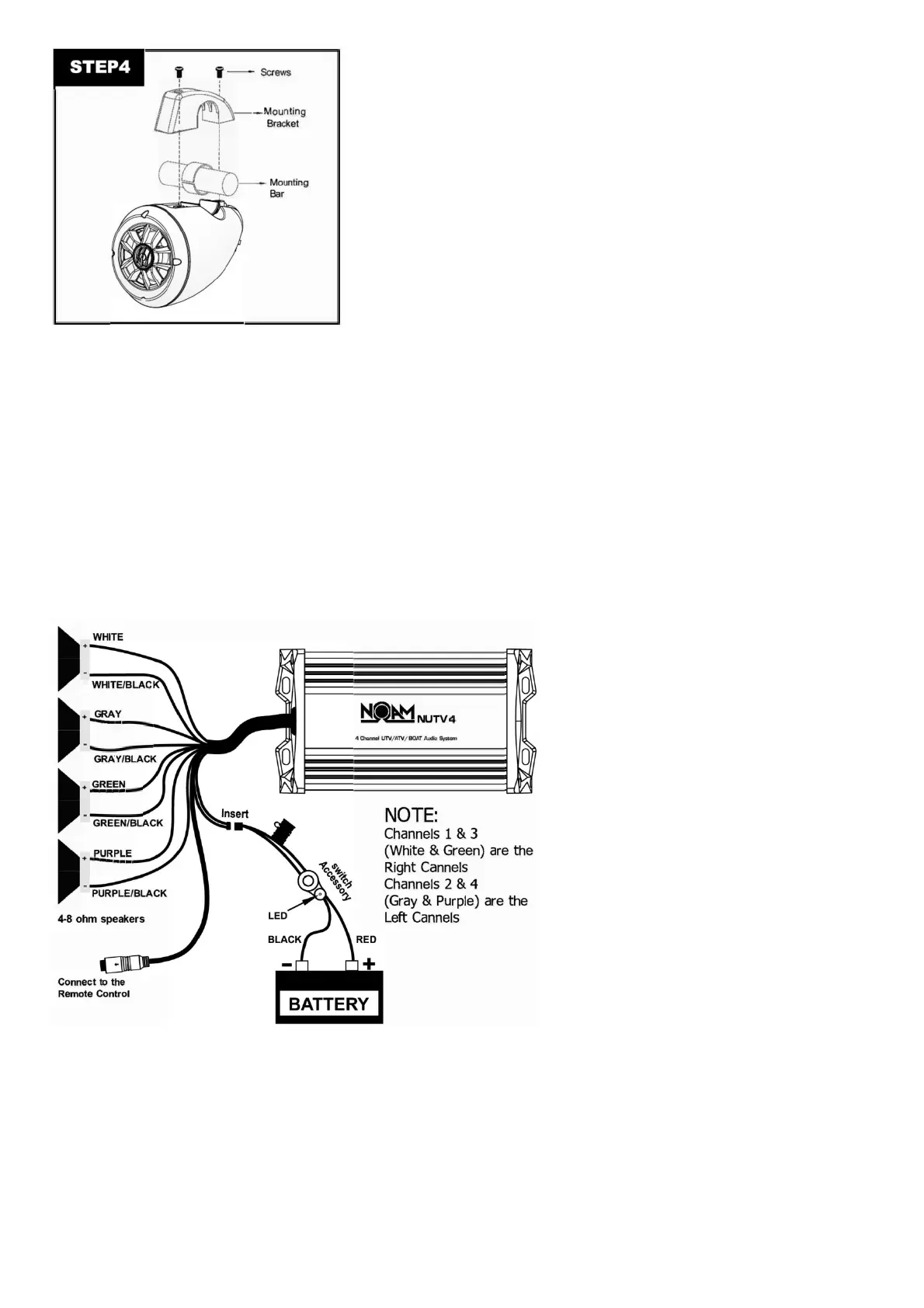

Screw the clamp to the pod and you should be good to GO!!! Use the 1.5″ pad if more padding is required.
NOTE
Rubber Pad in 3 Specification
Rubber Pad Quantity You’ll Need for Each Mounting
Dimension:
Pad No.1: 76X30X2mm* 8PCS
Pad No.2: 150x30x3mm12PCS
Pad No.3: 38x30x3mm8PCS
2″ Bar: Pad No.1 2PCS
1. 75″ Bar: Pad No.1 *2PCS and Pad No. 21PC
1.5″ Bar: Pad No.12PCS and Pad No. 2*2PCS
Attention: Pad No.2 (6-150mm) should go all the way around the bar if the pad is too long, cut the extra length.
Note: pad No.3 is an extra small pad that can be used in case you need an extra spacer for a better grip
Power and Speaker Wiring
wire color – Description
Red- Battery ( + ), 12dc / 12vdc = ON
Black- Battery(-), Ground
White- CH1 (+)
White/Black- CH1 (+)
Gray- CH1 (+)
Gray/Black- CH1 (+)
Green- CH1 (+)
Green/Black- CH1 (+)
Purple- CH1 (+)
Purple/Black-CH1 (+)
