14
Front Right + (solid grey)

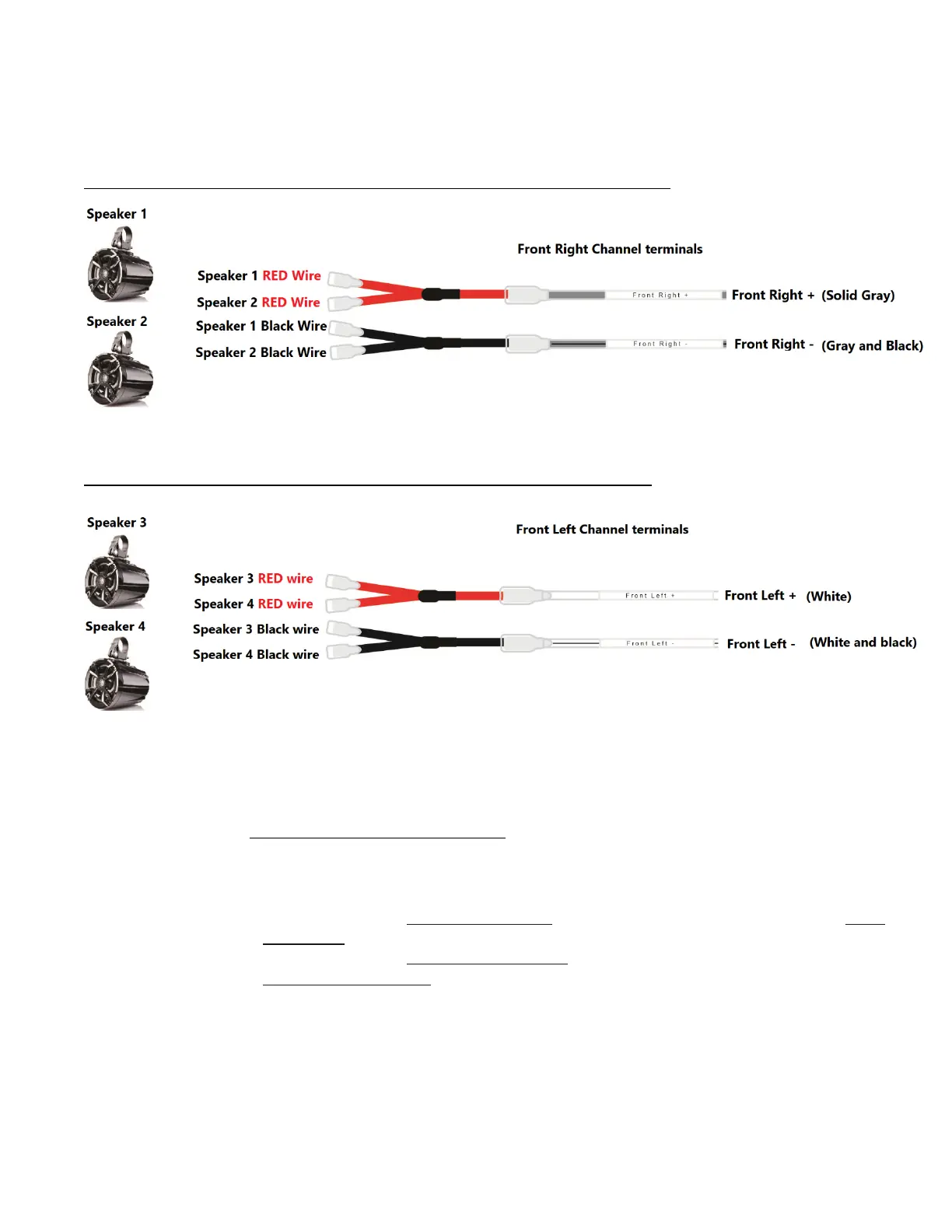

Each pair of RED and Black Y splitters will be connected to a pair of N5 speakers
Each speaker has a red wire (Positive +) and a black wire (Negative -)
Connect 2 of your N5 speakers to the Front Right channels the following way:
Connect 2 of your remaining N5 speakers to the Rear channels the following way:
*Make sure you position your speakers in accordance with the amplifier's channel they are connected to. If
the speakers are connected to the left channel make sure you position them on the left-hand side of your
ride. Same goes for the right channel.
B. Connecting your NSUB subwoofer
In order for the 2 rear channels to power the subwoofer you will now need to bridge them the
following way:
i. Please connect the NSUB's red wire (+) to the positive left rear channel output- solid
green wire.
ii. Please connect the NSUB's Black wire (-) to the negative right rear channel output-
Purple and black wire
